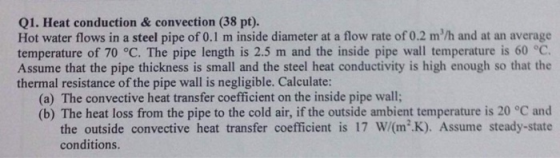

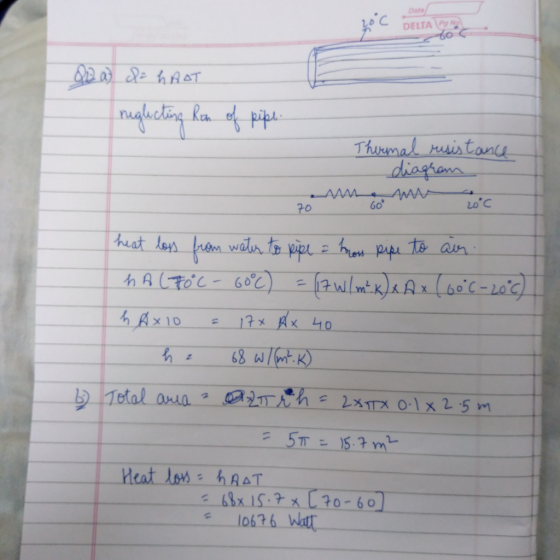

Q1. Heat conduction & convection (38 pt). Hot water flows in a steel pipe...
Combined convection and conduction It is desired to transport liquid metal through a pipe embedded in...
Combined convection and conduction It is desired to transport liquid metal through a pipe embedded in a 1.2 m thick wall (k =1.2 W/m.k) at point (x) where the temperature is 650 K. The inside surface of the wall is maintained at 950 K. The outside wall is exposed to air at 300 K with a convective heat transfer coefficient of 10 W/m^2.K. Sketch the system. Calculate the temperature of the outside wall? Calculate the heat flux through the wall?...
I. Design of Fins (35 pt). A stripping process produces a hot fluid (80°C) that flows...
I. Design of Fins (35 pt). A stripping process produces a hot fluid (80°C) that flows inside copper pipe of 20 cm diameter (the thickness of the pipe wall is negligible). Outside the pipe, there is air flow at ambient temperature (20 °C). In order to recirculate the fluid produced, it is necessary to cool it down. This can be achieved by installing ten circular fins per meter of pipe (see figure below). These fins have a thickness of 0.1...
QUESTION 1 (10 marks) a) Write the Newton's law of heat convection in fluid using convection heat transfer coef...
QUESTION 1 (10 marks) a) Write the Newton's law of heat convection in fluid using convection heat transfer coefficient, h (Wm2.K). Please explain the equation in terms of its driving force and resistancC (2 marks) (POUCOI/C2) b) Define the heat transfer rate, q,by inside and outside convection and wall conduction considering a stainless steel cylindrical pipe (inside radius, ri and outer radius, ) with fiberglass insulator (radius, s) in ą steady state condition as shown in Figure Q11 Steam with...
Problem : A cryogenic flui d is flowing in a 304 SS pipe. The pipe is...
Problem
:
A cryogenic flui
d is flowing in a
304 SS
pipe.
The pipe is insulated
on its outside surface
with
6
-
mm thick,
evacuated,
aluminum foil/glass mat insulation.
(“Evacuated” means a partial vacuum is drawn on the
insulation to
remove air that would otherwise fill
pores inside the insulation.)
The pipe
inside diameter
is 127 mm; it’s outside diameter is 138 mm.
The
fluid temperature is
-
173
o
C
.
T
he
air temperature
outside the...
Problem 4: Consider the heat exchanger design illustrated. Hot air flows at speed of r0.6 m/s thr...
Problem 4: Consider the heat exchanger design illustrated. Hot air flows at speed of r0.6 m/s through the center pipe. The center pipe has an outer diameter of D=7 cm and length 4-2 m Cold water flows at 20-25 cm3/s through a smaller helical pipe having an outer diameter d = 1 cm and wall thickness of mm. The helical pipe is wrapped around the center pipe to form a heat exchanger. The center pipe has a thermal conductivity of...
6 Water is heated in a pipe by exchanging heat with a warmer fluid that flows outside the pipe. Inside diameter of the pipe is dn 0.045 m and outside diameter dour0.05 m. Mean velocity of the water i...
6 Water is heated in a pipe by exchanging heat with a warmer fluid that flows outside the pipe. Inside diameter of the pipe is dn 0.045 m and outside diameter dour0.05 m. Mean velocity of the water in the pipe is um-0.31 m/s and the bulk temperature is 323 K (density 988 kg m-3; viscosity 0.00055 kg m' sı. Pr 3.56, thermal conductivity k 0.64 W m1 Kt). The material of the pipe has thermal conductivity k 0.61 W...
3. Heat Transfer Mechanism: (Total points 30 Suppose copper pipe in a parabolic concentrator is c...
3. Heat Transfer Mechanism: (Total points 30 Suppose copper pipe in a parabolic concentrator is carrying heat transfer fluid (HTF) of 450 °C. The ambient temperature is 25 °C. The pipe has a diameter of 5 cm but the pipe wall thickness is 3 mm. Determine the rate of heat conduction through the pipe wall per unit area of wa Copper has thermal conductivity k-400 w/m.К. (Points 10) If the pipe temperature is same as that of fluid inside, calculate...
Steam at 150 °C flows in a stainless steel pipe which has a thermal conductivity of...
Steam at 150 °C flows in a stainless steel pipe which has a thermal conductivity of 16 W m-1 K -1 whose inner and outer diameters are 5 and 6 cm respectively. The pipe is covered with 3 cm think insulation having a thermal conductivity of 0.035 W m-1 K -1 . The combined convection and radiation heat transfer coefficient at the outside surface of the insulation is 20 W m-2 K -1 and the surroundings are at 10 °C....
“A pipe is carrying hot water through a cold storage facility. The ambient air in the...
“A pipe is carrying hot water through a cold storage facility. The ambient air in the cold storage has temperature of ?5?C. To maintain uniform temperature in the cold storage, blowers installed in the facility induce a 3 m/s velocity to the cold air (which can be assumed to be flowing across the water pipe). Hot water inside the pipe has a mean velocity of 0.5 m/s. The internal and exter- nal diameter of the pipe are 8.4 cm and...
HW3.3. A cylindrical steel pipe is used to carry water steam with an averaged heat transfer...
HW3.3. A cylindrical steel pipe is used to carry water steam with an averaged heat transfer coefficient of h 150 W/m2-K at Ti- 100 °C. The steel pipe goes through the roof of a factory where the ambient temperature is 23°C (To), with a natural heat convection coefficient of 5 W/m2-K. The inner and outer diameters of the steel pipe are 2 cm and 2.2 cm, respectively, and thermal conductivity of the steep pipe is k, -20 W/m-K To prevent...
Combined convection and conduction It is desired to transport liquid metal through a pipe embedded in a 1.2 m thick wall (k =1.2 W/m.k) at point (x) where the temperature is 650 K. The inside surface of the wall is maintained at 950 K. The outside wall is exposed to air at 300 K with a convective heat transfer coefficient of 10 W/m^2.K. Sketch the system. Calculate the temperature of the outside wall? Calculate the heat flux through the wall?...
I. Design of Fins (35 pt). A stripping process produces a hot fluid (80°C) that flows inside copper pipe of 20 cm diameter (the thickness of the pipe wall is negligible). Outside the pipe, there is air flow at ambient temperature (20 °C). In order to recirculate the fluid produced, it is necessary to cool it down. This can be achieved by installing ten circular fins per meter of pipe (see figure below). These fins have a thickness of 0.1...
QUESTION 1 (10 marks) a) Write the Newton's law of heat convection in fluid using convection heat transfer coefficient, h (Wm2.K). Please explain the equation in terms of its driving force and resistancC (2 marks) (POUCOI/C2) b) Define the heat transfer rate, q,by inside and outside convection and wall conduction considering a stainless steel cylindrical pipe (inside radius, ri and outer radius, ) with fiberglass insulator (radius, s) in ą steady state condition as shown in Figure Q11 Steam with...
Problem
:
A cryogenic flui
d is flowing in a
304 SS
pipe.
The pipe is insulated
on its outside surface
with
6
-
mm thick,
evacuated,
aluminum foil/glass mat insulation.
(“Evacuated” means a partial vacuum is drawn on the
insulation to
remove air that would otherwise fill
pores inside the insulation.)
The pipe
inside diameter
is 127 mm; it’s outside diameter is 138 mm.
The
fluid temperature is
-
173
o
C
.
T
he
air temperature
outside the...
Problem 4: Consider the heat exchanger design illustrated. Hot air flows at speed of r0.6 m/s through the center pipe. The center pipe has an outer diameter of D=7 cm and length 4-2 m Cold water flows at 20-25 cm3/s through a smaller helical pipe having an outer diameter d = 1 cm and wall thickness of mm. The helical pipe is wrapped around the center pipe to form a heat exchanger. The center pipe has a thermal conductivity of...
6 Water is heated in a pipe by exchanging heat with a warmer fluid that flows outside the pipe. Inside diameter of the pipe is dn 0.045 m and outside diameter dour0.05 m. Mean velocity of the water in the pipe is um-0.31 m/s and the bulk temperature is 323 K (density 988 kg m-3; viscosity 0.00055 kg m' sı. Pr 3.56, thermal conductivity k 0.64 W m1 Kt). The material of the pipe has thermal conductivity k 0.61 W...
3. Heat Transfer Mechanism: (Total points 30 Suppose copper pipe in a parabolic concentrator is carrying heat transfer fluid (HTF) of 450 °C. The ambient temperature is 25 °C. The pipe has a diameter of 5 cm but the pipe wall thickness is 3 mm. Determine the rate of heat conduction through the pipe wall per unit area of wa Copper has thermal conductivity k-400 w/m.К. (Points 10) If the pipe temperature is same as that of fluid inside, calculate...
HW3.3. A cylindrical steel pipe is used to carry water steam with an averaged heat transfer coefficient of h 150 W/m2-K at Ti- 100 °C. The steel pipe goes through the roof of a factory where the ambient temperature is 23°C (To), with a natural heat convection coefficient of 5 W/m2-K. The inner and outer diameters of the steel pipe are 2 cm and 2.2 cm, respectively, and thermal conductivity of the steep pipe is k, -20 W/m-K To prevent...
