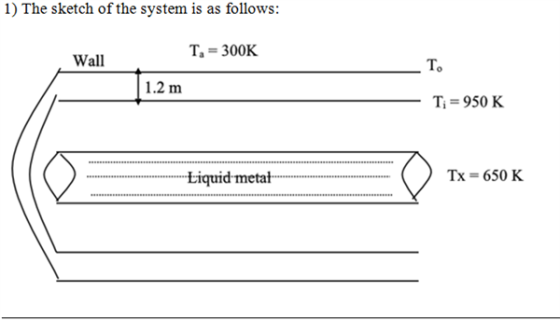

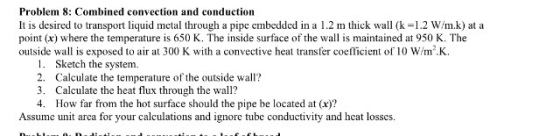

Combined convection and conduction It is desired to transport liquid metal through a pipe embedded in...
Help mee!! Q1. Heat conduction & convection (38 pt). Hot water flows in a steel pipe...
Help mee!!
Q1. Heat conduction & convection (38 pt). Hot water flows in a steel pipe of 0.1 m inside diameter at a flow rate of 0.2 m/h and at an average temperature of 70 °C. The pipe length is 2.5 m and the inside pipe wall temperature is 60 °C Assume that the pipe thickness is small and the steel heat conductivity is high enough so that the thermal resistance of the pipe wall is negligible. Calculate: (a) The...
QUESTION 1 (10 marks) a) Write the Newton's law of heat convection in fluid using convection heat transfer coef...
QUESTION 1 (10 marks) a) Write the Newton's law of heat convection in fluid using convection heat transfer coefficient, h (Wm2.K). Please explain the equation in terms of its driving force and resistancC (2 marks) (POUCOI/C2) b) Define the heat transfer rate, q,by inside and outside convection and wall conduction considering a stainless steel cylindrical pipe (inside radius, ri and outer radius, ) with fiberglass insulator (radius, s) in ą steady state condition as shown in Figure Q11 Steam with...
2.) A plane wall is made of brick with a thermal conductivity of 1.5 W/(m-K). The...
2.) A plane wall is made of brick with a thermal conductivity of 1.5 W/(m-K). The wall is 20 cm thick and has a surface area of 10 m2. One side of the wall is exposed to outside air blowing against the wall resulting in a heat transfer coefficient of 20 W/(m2-K). The other side is exposed to an air-conditioned room with a convective heat transfer coefficient of 5 W/(m2-K). a. What are the thermal resistances corresponding to conduction through...
Liquid flows in a metal pipe with an inner diameter of D1 = 22 mm and...
Liquid flows in a metal pipe with an inner diameter of D1 = 22 mm and an outer diameter of D2 = 32 mm. The thermal conductivity of the pipe wall is 12 W/m·K. The inner surface of the pipe is coated with thin polyvinylidene chloride (PVDC) lining. Along a length of 1 m, the pipe outer surface is exposed to convection heat transfer with hot gas, at T∞ = 100°C and h = 5 W/m2·K, and thermal radiation with...
Problem : A cryogenic flui d is flowing in a 304 SS pipe. The pipe is...
Problem
:
A cryogenic flui
d is flowing in a
304 SS
pipe.
The pipe is insulated
on its outside surface
with
6
-
mm thick,
evacuated,
aluminum foil/glass mat insulation.
(“Evacuated” means a partial vacuum is drawn on the
insulation to
remove air that would otherwise fill
pores inside the insulation.)
The pipe
inside diameter
is 127 mm; it’s outside diameter is 138 mm.
The
fluid temperature is
-
173
o
C
.
T
he
air temperature
outside the...
I. Steam at 220°C İs transported through an AISI 101 0 carbon steel pipe. The inside...
I. Steam at 220°C İs transported through an AISI 101 0 carbon steel pipe. The inside and outside diameters of the pip glass pipe insulation. e are 12 and 13 cm respectively. The pipe is wrapped with 5 cm thick cellular The ambient air temperature is 8°C. The inside and outside convection heat nts are 95 and 15 W/m2-K respectively. The thermal conductivity of the pipe is 60 W/m-K and for the insulation it is 0.072 W/m-K a. Construct the...
Consider a 34 cm thick concrete wall with a thermal conductivity of 0.82 W/m·K. The temperature...
Consider a 34 cm thick concrete wall with a thermal conductivity of 0.82 W/m·K. The temperature of the left surface is held constant at 42°C, whereas the right face is exposed to a flow of 12°C air with a convection heat transfer coefficient of 23 W/m2·K. Neglecting heat transfer by radiation, find the right wall surface temperature and the heat flux through the wall.
1. 1.08x106 grams/h of a superheated fluid flows through a pipe in a power plant. The...
1. 1.08x106 grams/h of a superheated fluid flows through a pipe in a power plant. The pipe is 1000 cm long, has an inner diameter of 0.05m and a wall thickness of 0.6 cm. The pipe has a thermal conductivity of 0.0017 kW/mK, and the inner pipe surface is at a uniform temperature of 393K. The temperature drop between the inlet and exit of the pipe is 7K, and the constant pressure specific heat of vapor is 2190 J/kgK. If...
3. Heat Transfer Mechanism: (Total points 30 Suppose copper pipe in a parabolic concentrator is c...
3. Heat Transfer Mechanism: (Total points 30 Suppose copper pipe in a parabolic concentrator is carrying heat transfer fluid (HTF) of 450 °C. The ambient temperature is 25 °C. The pipe has a diameter of 5 cm but the pipe wall thickness is 3 mm. Determine the rate of heat conduction through the pipe wall per unit area of wa Copper has thermal conductivity k-400 w/m.К. (Points 10) If the pipe temperature is same as that of fluid inside, calculate...
6 Water is heated in a pipe by exchanging heat with a warmer fluid that flows outside the pipe. Inside diameter of the pipe is dn 0.045 m and outside diameter dour0.05 m. Mean velocity of the water i...
6 Water is heated in a pipe by exchanging heat with a warmer fluid that flows outside the pipe. Inside diameter of the pipe is dn 0.045 m and outside diameter dour0.05 m. Mean velocity of the water in the pipe is um-0.31 m/s and the bulk temperature is 323 K (density 988 kg m-3; viscosity 0.00055 kg m' sı. Pr 3.56, thermal conductivity k 0.64 W m1 Kt). The material of the pipe has thermal conductivity k 0.61 W...
Help mee!!
Q1. Heat conduction & convection (38 pt). Hot water flows in a steel pipe of 0.1 m inside diameter at a flow rate of 0.2 m/h and at an average temperature of 70 °C. The pipe length is 2.5 m and the inside pipe wall temperature is 60 °C Assume that the pipe thickness is small and the steel heat conductivity is high enough so that the thermal resistance of the pipe wall is negligible. Calculate: (a) The...
QUESTION 1 (10 marks) a) Write the Newton's law of heat convection in fluid using convection heat transfer coefficient, h (Wm2.K). Please explain the equation in terms of its driving force and resistancC (2 marks) (POUCOI/C2) b) Define the heat transfer rate, q,by inside and outside convection and wall conduction considering a stainless steel cylindrical pipe (inside radius, ri and outer radius, ) with fiberglass insulator (radius, s) in ą steady state condition as shown in Figure Q11 Steam with...
2.) A plane wall is made of brick with a thermal conductivity of 1.5 W/(m-K). The wall is 20 cm thick and has a surface area of 10 m2. One side of the wall is exposed to outside air blowing against the wall resulting in a heat transfer coefficient of 20 W/(m2-K). The other side is exposed to an air-conditioned room with a convective heat transfer coefficient of 5 W/(m2-K). a. What are the thermal resistances corresponding to conduction through...
Problem
:
A cryogenic flui
d is flowing in a
304 SS
pipe.
The pipe is insulated
on its outside surface
with
6
-
mm thick,
evacuated,
aluminum foil/glass mat insulation.
(“Evacuated” means a partial vacuum is drawn on the
insulation to
remove air that would otherwise fill
pores inside the insulation.)
The pipe
inside diameter
is 127 mm; it’s outside diameter is 138 mm.
The
fluid temperature is
-
173
o
C
.
T
he
air temperature
outside the...
I. Steam at 220°C İs transported through an AISI 101 0 carbon steel pipe. The inside and outside diameters of the pip glass pipe insulation. e are 12 and 13 cm respectively. The pipe is wrapped with 5 cm thick cellular The ambient air temperature is 8°C. The inside and outside convection heat nts are 95 and 15 W/m2-K respectively. The thermal conductivity of the pipe is 60 W/m-K and for the insulation it is 0.072 W/m-K a. Construct the...
3. Heat Transfer Mechanism: (Total points 30 Suppose copper pipe in a parabolic concentrator is carrying heat transfer fluid (HTF) of 450 °C. The ambient temperature is 25 °C. The pipe has a diameter of 5 cm but the pipe wall thickness is 3 mm. Determine the rate of heat conduction through the pipe wall per unit area of wa Copper has thermal conductivity k-400 w/m.К. (Points 10) If the pipe temperature is same as that of fluid inside, calculate...
6 Water is heated in a pipe by exchanging heat with a warmer fluid that flows outside the pipe. Inside diameter of the pipe is dn 0.045 m and outside diameter dour0.05 m. Mean velocity of the water in the pipe is um-0.31 m/s and the bulk temperature is 323 K (density 988 kg m-3; viscosity 0.00055 kg m' sı. Pr 3.56, thermal conductivity k 0.64 W m1 Kt). The material of the pipe has thermal conductivity k 0.61 W...
