Consider a 34 cm thick concrete wall with a thermal conductivity of 0.82 W/m·K. The temperature...

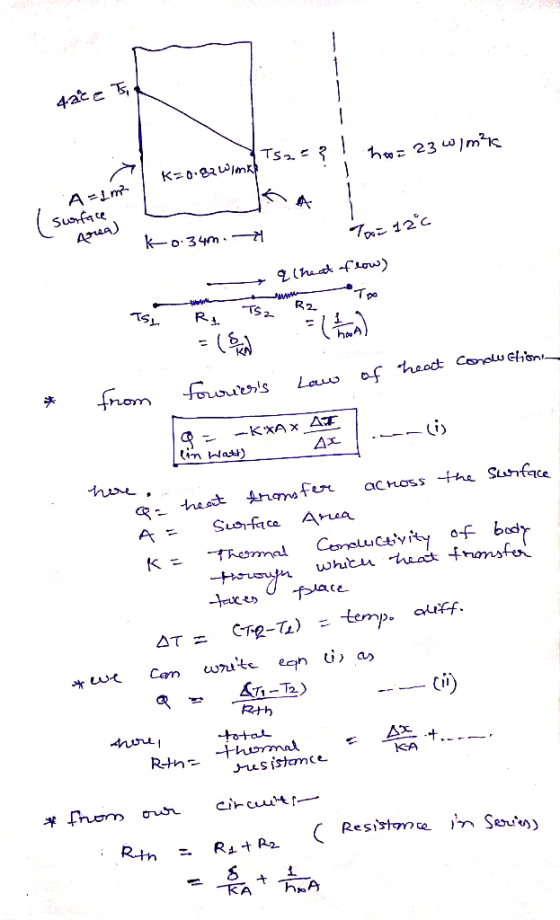

- Consider a 34 cm thick concrete wall with a thermal conductivity of 0.82 W/m·K. The temperature of the left surface is held constant at 42°C, whereas the right face is exposed to a flow of 12°C air with a convection heat transfer coefficient of 23 W/m2·K. Neglecting heat transfer by radiation, find the right wall surface temperature and the heat flux through the wall.
Homework Answers
Add Answer to:
Consider a 34 cm thick concrete wall with a thermal
conductivity of 0.82 W/m·K. The temperature...
A large plane wall has a thickness L = 50 cm and thermal conductivity k =...
A large plane wall has a thickness L = 50 cm and thermal conductivity k = 25W/m·K. On the left surface (x = 0), it is subjected to a uniform heat flux ?̇0 while the surface temperature T0 is constant. On the right surface, it experiences convection and radiation heat transfer while the surface temperature is TL = 225°C and the surrounding temperature is 25°C. The emissivity and the convection heat transfer coefficient on the right surface are 0.7 and...
2.) A plane wall is made of brick with a thermal conductivity of 1.5 W/(m-K). The...
2.) A plane wall is made of brick with a thermal conductivity of 1.5 W/(m-K). The wall is 20 cm thick and has a surface area of 10 m2. One side of the wall is exposed to outside air blowing against the wall resulting in a heat transfer coefficient of 20 W/(m2-K). The other side is exposed to an air-conditioned room with a convective heat transfer coefficient of 5 W/(m2-K). a. What are the thermal resistances corresponding to conduction through...
P1 (50 pts.) - A large plane wall has a thickness L-60 cm and thermal conductivity...
P1 (50 pts.) - A large plane wall has a thickness L-60 cm and thermal conductivity k 25 W/m-K. On the left surface (x-0), it is subjected to a uniform heat flux qo while the surface temperature To is constant. On the right surface, it experiences convection and radiation heat transfer while the surface temperature is TL-225°C and the surrounding temperature is 25°C. The emissivity and the convection heat transfer coefficient on the right surface are 0.7 and 15 W/m2-K,...
A plane wall of thickness 2L= 30 mm and thermal conductivity k= 3 W/m·K experiences uniform...
A plane wall of thickness 2L= 30 mm and thermal conductivity k= 3 W/m·K experiences uniform volumetric heat generation at a rate q˙, while convection heat transfer occurs at both of its surfaces (x=-L, +L), each of which is exposed to a fluid of temperature ∞T∞= 20°C. Under steady-state conditions, the temperature distribution in the wall is of the form T(x)=a+bx+cx2 where a= 82.0°C, b= -210°C/m, c= -2 × 104°C/m2, and x is in meters. The origin of the x-coordinate...
The temperature distribution across a wall 0.2 m thick at a certain instant of time is...
The temperature distribution across a wall 0.2 m thick at a certain instant of time is T(x) = a + bx + cxº, where T is in degrees Celsius and x is in meters, a = 200°C, b = -190°c/m, and c = 30°C/m2. The wall has a thermal conductivity of 1 W/m.k. (a) On a unit surface area basis, determine the rate of heat transfer into and out of the wall and the rate of change of energy stored...
Heat is uniformly generated at the rate of 2x 10W/m* in a wall of thermal conductivity...
Heat is uniformly generated at the rate of 2x 10W/m* in a wall of thermal conductivity 25 W/m-K and thickness 60 mm. The wall is exposed to convection on both sides, with different heat transfer coefficients and temperatures as shown. There are straight rectangular fins on the right-hand side of the wall, with dimensions as shown (L =20 mm) and thermal conductivity of 250 W/m-K. What is the maximum temperature that will occur in the wall? L tt-2 mm k=25...
Consider a 4 m high, 6 m wide and 0.17 m thick wall whose thermal conductivity is k = 0.8 W/m.oC....
Consider a 4 m high, 6 m wide and 0.17 m thick wall whose thermal conductivity is k = 0.8 W/m.oC. On a certain day, the temperatures of the inner and the outer medium close to the wall are measured to be 14oC and 6oC, respectively. Both inner and outer surfaces are subjected to convection heat transfer. Assume that the convection heat transfer coefficient is the same for the two surfaces h = 5 W/m2 ∙ °C. 1. Draw the...
A concrete wall of a house is 45 cm thick and has a surface area 20m...
A concrete wall of a house is 45 cm thick and has a surface area 20m x 5 m. The inside temperature of the wall is 47 °C and the outside air temperature is 14 °C. Thermal conductivity of the concrete wall is 0.8 W/mK. Calculate the heat transfer rate through the wall by conduction and its thermal resistance.
2. A 6 in thick concrete wall, having thermal conductivity of 0.8Btu/h.ft.°F, is exposed to air...
2. A 6 in thick concrete wall, having thermal conductivity of 0.8Btu/h.ft.°F, is exposed to air at 70°F on one side and air at 20°F on the opposite side. The convective heat transfer coefficients are 2Btu/h.ft.F on the 70°F side and 10 Btu/h.ft'.°F on the 20°F side. Compute the following: 1. Total thermal resistance 2. Rate of heat transfer 3. The surface temperatures of the wall 4. Check the temp. of the wall is within the allowable limit of 50°F
The temperature distribution across a wall 1 m thick at a certain instant of time is...
The temperature distribution across a wall 1 m thick at a certain instant of time is T(x) = a + box + cx", where T is in Kelvin and x is in meters, a = 350 K, b = -100 K/m, and c=50 K/m". The wall has a thermal conductivity of 2 W/m.K. (a) On a unit surface area basis, determine the rate of heat transfer into and out of the wall and the rate of change of energy stored...
2.) A plane wall is made of brick with a thermal conductivity of 1.5 W/(m-K). The wall is 20 cm thick and has a surface area of 10 m2. One side of the wall is exposed to outside air blowing against the wall resulting in a heat transfer coefficient of 20 W/(m2-K). The other side is exposed to an air-conditioned room with a convective heat transfer coefficient of 5 W/(m2-K). a. What are the thermal resistances corresponding to conduction through...
P1 (50 pts.) - A large plane wall has a thickness L-60 cm and thermal conductivity k 25 W/m-K. On the left surface (x-0), it is subjected to a uniform heat flux qo while the surface temperature To is constant. On the right surface, it experiences convection and radiation heat transfer while the surface temperature is TL-225°C and the surrounding temperature is 25°C. The emissivity and the convection heat transfer coefficient on the right surface are 0.7 and 15 W/m2-K,...
The temperature distribution across a wall 0.2 m thick at a certain instant of time is T(x) = a + bx + cxº, where T is in degrees Celsius and x is in meters, a = 200°C, b = -190°c/m, and c = 30°C/m2. The wall has a thermal conductivity of 1 W/m.k. (a) On a unit surface area basis, determine the rate of heat transfer into and out of the wall and the rate of change of energy stored...
Heat is uniformly generated at the rate of 2x 10W/m* in a wall of thermal conductivity 25 W/m-K and thickness 60 mm. The wall is exposed to convection on both sides, with different heat transfer coefficients and temperatures as shown. There are straight rectangular fins on the right-hand side of the wall, with dimensions as shown (L =20 mm) and thermal conductivity of 250 W/m-K. What is the maximum temperature that will occur in the wall? L tt-2 mm k=25...
A concrete wall of a house is 45 cm thick and has a surface area 20m x 5 m. The inside temperature of the wall is 47 °C and the outside air temperature is 14 °C. Thermal conductivity of the concrete wall is 0.8 W/mK. Calculate the heat transfer rate through the wall by conduction and its thermal resistance.
2. A 6 in thick concrete wall, having thermal conductivity of 0.8Btu/h.ft.°F, is exposed to air at 70°F on one side and air at 20°F on the opposite side. The convective heat transfer coefficients are 2Btu/h.ft.F on the 70°F side and 10 Btu/h.ft'.°F on the 20°F side. Compute the following: 1. Total thermal resistance 2. Rate of heat transfer 3. The surface temperatures of the wall 4. Check the temp. of the wall is within the allowable limit of 50°F
The temperature distribution across a wall 1 m thick at a certain instant of time is T(x) = a + box + cx", where T is in Kelvin and x is in meters, a = 350 K, b = -100 K/m, and c=50 K/m". The wall has a thermal conductivity of 2 W/m.K. (a) On a unit surface area basis, determine the rate of heat transfer into and out of the wall and the rate of change of energy stored...
