A plane wall of thickness 2L= 30 mm and thermal conductivity k= 3 W/m·K experiences uniform...
A plane wall of thickness 2L= 30 mm and thermal conductivity k=
3 W/m·K experiences uniform volumetric heat generation at a rate
q˙, while convection heat transfer occurs at both of its surfaces
(x=-L, +L), each of which is exposed to a fluid of temperature
∞T∞= 20°C. Under steady-state conditions, the temperature
distribution in the wall is of the form T(x)=a+bx+cx2 where a=
82.0°C, b= -210°C/m, c= -2 × 104°C/m2, and
x is in meters. The origin of the x-coordinate is at the
midplane of the wall.

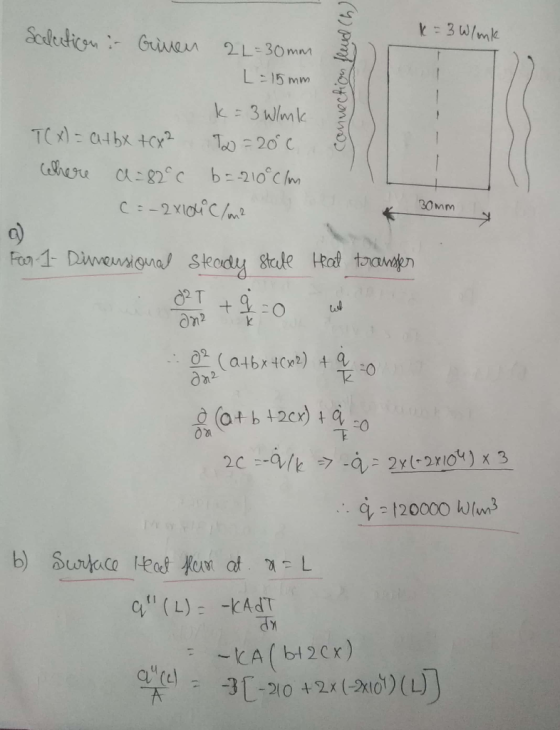

(a) What is the volumetric rate q˙ of heat generation in the
wall?
(b) Determine the surface heat fluxes, qx"(-L)and qx"(+L).

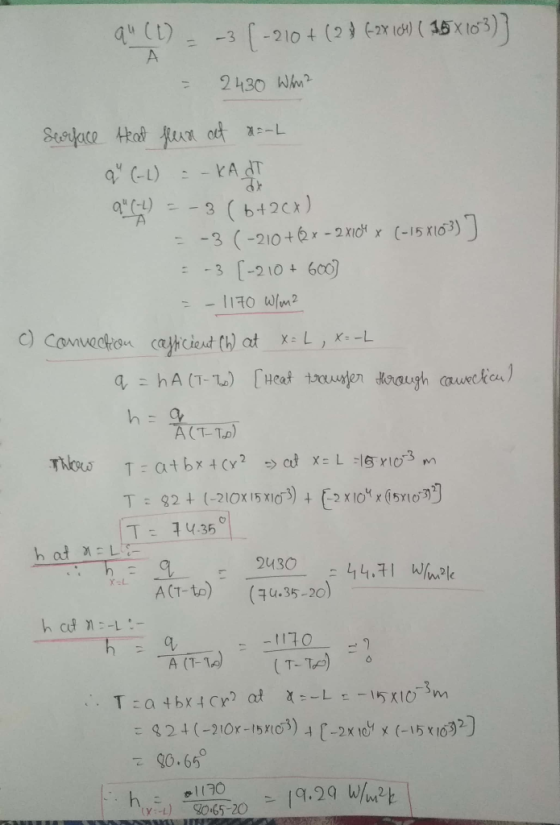

(c) What are the convection coefficients for the surfaces at x=-L
and x=+L?
Homework Answers
Add Answer to:
A plane wall of thickness 2L= 30 mm and thermal conductivity k=
3 W/m·K experiences uniform...
Problem 3. A plane wall of thickness 2L = 40 mm and thermal conductivity k =...
Problem 3. A plane wall of thickness 2L = 40 mm and thermal conductivity k = 5 W/m.K experiences uniform volumetric heat generation at a rate ġ, while convection heat transfer occurs at both of its surfaces (x = -1, + L), each of which is exposed to a fluid of temperature Too = 20 °C. Under steady-state conditions, the temperature distribution in the wall is of the form T(x) = a + bx + cx? where a = 82.0°C,...
A wall (assumed to be 1-dimensional) has a thickness of 2L-8em and experiences uniform thermal energy...
A wall (assumed to be 1-dimensional) has a thickness of 2L-8em and experiences uniform thermal energy generation of 9 1000 ms. The wall is cooled convectively at x = ±4 cm by a fluid at temperature T,-30°C. The steady-state temperature distribution through the wall is T(x) = a(L2-x*) + b, where a = 15°C/mz and b = 40°C. Determine 4. a. b, The thermal conductivity of the wall, k The convection coefficient, h
Reviewer Score 3. A plane wall of thickness 0.12m and thermal conductivity 40W/m K having uniform volumetric ene...
Reviewer Score 3. A plane wall of thickness 0.12m and thermal conductivity 40W/m K having uniform volumetric energy generation of 0.4MW/m3 is insulated on one side, while the other side is exposed to a fluid at 52 C. The convection heat transfer coefficient between the wall and the fluid is 400W/m2-K. Determine the (20 scores) maximum temperature in the wall. 4. r,rod OA rotates with uniform o o. At the moment, AB- 6r Signatory Score leration of block B at...
2. A one dimensional plane wall of thickness L=80 mm experiences uniform thermal energy generation of...
2. A one dimensional plane wall of thickness L=80 mm experiences uniform thermal energy generation of q = 1000 W/m and is convectively cooled at x=140 mm by an ambient fluid characterized by T=30°C. If the steady state temperature distribution within the wall is T(x)mall-x)+b where a=15°C/m and b=40*C, what is the thermal conductivity of the wall? L=80mm
A long cylindrical rod of diameter 100 mm with thermal conductivity of 0.5 W/mK experiences uniform...
A long cylindrical rod of diameter 100 mm with thermal conductivity of 0.5 W/mK experiences uniform volumetric heat generation of 5.0 x 10 W/m². The rod is encapsulated by a circular sleeve having an outer diameter of 400 mm and a thermal conductivity of 4 W/mK. The outer surface of the sleeve is exposed to cross flow of air at 27°C with a convection coefficient of 25 W/m2K (a) Find the temperature at the Interface between the rod and sleeve...
A large plane wall has a thickness L = 50 cm and thermal conductivity k =...
A large plane wall has a thickness L = 50 cm and thermal conductivity k = 25W/m·K. On the left surface (x = 0), it is subjected to a uniform heat flux ?̇0 while the surface temperature T0 is constant. On the right surface, it experiences convection and radiation heat transfer while the surface temperature is TL = 225°C and the surrounding temperature is 25°C. The emissivity and the convection heat transfer coefficient on the right surface are 0.7 and...
Consider a 34 cm thick concrete wall with a thermal conductivity of 0.82 W/m·K. The temperature...
Consider a 34 cm thick concrete wall with a thermal conductivity of 0.82 W/m·K. The temperature of the left surface is held constant at 42°C, whereas the right face is exposed to a flow of 12°C air with a convection heat transfer coefficient of 23 W/m2·K. Neglecting heat transfer by radiation, find the right wall surface temperature and the heat flux through the wall.
A plane wall with thermal conductivity of k, is insulated on one side and is exposed...
A plane wall with thermal conductivity of k, is insulated on one side and is exposed to ambient air at To and convection coefficient of h, on the other side. A heat source in the 3) wall is generating a uniform heat rate per unit volume of For one-dimensional steady-state conduction in the wall, derive a proper differential equation for the temperature by either using the heat equations or doing the energy balance. Identify proper boundary conditions and find the...
A large plane wall has a constant thermal conductivity of 8.5W/(m·K), a surface area of 15...
A large plane wall has a constant thermal conductivity of 8.5W/(m·K), a surface area of 15 m² and a thickness L=25 cm. The temperature on the leftside of the wall (T0) is constant and measured at 0.0°C. A constant heat flux(푞̇H)of 450.0 W/m² entersthe rightside of the wall.a.Express the differential equation and the boundary conditions(mathematical formulation)for steady one-dimensional heat conduction through the wall.b.Obtain a numerical equationfor the variation of temperature in the wall by solving the differential equation. c.Evaluate the...
ent material has the thermal conductivity k and thickness L. The temperature the material is of the form: distribution along the x-direction, T(x) in + Bx2 + C, where A, a, B, and C are constants...
ent material has the thermal conductivity k and thickness L. The temperature the material is of the form: distribution along the x-direction, T(x) in + Bx2 + C, where A, a, B, and C are constants. The irradiation is fully the material and can be characterized by a uniform volumetric heat generation, W/m3). Assuming 1D steady-state conduction and constant properties. xpressions for the conduction heat fluxes (alx) at the top and bottom surfaces; absorbed by (4 points) (b) Derive an...
Problem 3. A plane wall of thickness 2L = 40 mm and thermal conductivity k = 5 W/m.K experiences uniform volumetric heat generation at a rate ġ, while convection heat transfer occurs at both of its surfaces (x = -1, + L), each of which is exposed to a fluid of temperature Too = 20 °C. Under steady-state conditions, the temperature distribution in the wall is of the form T(x) = a + bx + cx? where a = 82.0°C,...
A wall (assumed to be 1-dimensional) has a thickness of 2L-8em and experiences uniform thermal energy generation of 9 1000 ms. The wall is cooled convectively at x = ±4 cm by a fluid at temperature T,-30°C. The steady-state temperature distribution through the wall is T(x) = a(L2-x*) + b, where a = 15°C/mz and b = 40°C. Determine 4. a. b, The thermal conductivity of the wall, k The convection coefficient, h
Reviewer Score 3. A plane wall of thickness 0.12m and thermal conductivity 40W/m K having uniform volumetric energy generation of 0.4MW/m3 is insulated on one side, while the other side is exposed to a fluid at 52 C. The convection heat transfer coefficient between the wall and the fluid is 400W/m2-K. Determine the (20 scores) maximum temperature in the wall. 4. r,rod OA rotates with uniform o o. At the moment, AB- 6r Signatory Score leration of block B at...
2. A one dimensional plane wall of thickness L=80 mm experiences uniform thermal energy generation of q = 1000 W/m and is convectively cooled at x=140 mm by an ambient fluid characterized by T=30°C. If the steady state temperature distribution within the wall is T(x)mall-x)+b where a=15°C/m and b=40*C, what is the thermal conductivity of the wall? L=80mm
A long cylindrical rod of diameter 100 mm with thermal conductivity of 0.5 W/mK experiences uniform volumetric heat generation of 5.0 x 10 W/m². The rod is encapsulated by a circular sleeve having an outer diameter of 400 mm and a thermal conductivity of 4 W/mK. The outer surface of the sleeve is exposed to cross flow of air at 27°C with a convection coefficient of 25 W/m2K (a) Find the temperature at the Interface between the rod and sleeve...
A plane wall with thermal conductivity of k, is insulated on one side and is exposed to ambient air at To and convection coefficient of h, on the other side. A heat source in the 3) wall is generating a uniform heat rate per unit volume of For one-dimensional steady-state conduction in the wall, derive a proper differential equation for the temperature by either using the heat equations or doing the energy balance. Identify proper boundary conditions and find the...
ent material has the thermal conductivity k and thickness L. The temperature the material is of the form: distribution along the x-direction, T(x) in + Bx2 + C, where A, a, B, and C are constants. The irradiation is fully the material and can be characterized by a uniform volumetric heat generation, W/m3). Assuming 1D steady-state conduction and constant properties. xpressions for the conduction heat fluxes (alx) at the top and bottom surfaces; absorbed by (4 points) (b) Derive an...
