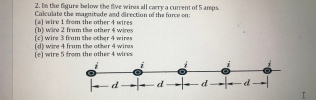

In the figure below the five wires all carry a current of 5 amps.

Calculate the magnitude and direction of the force on:

(a) wire 1 from the other 4 wires

(b) wire 2 from the other 4 wires

(c) wire 3 from the other 4 wires

(d) wire 4 from the other 4 wires

(e) wire 5 from the other 4 wires

science physics

Answer 1

Answer #1

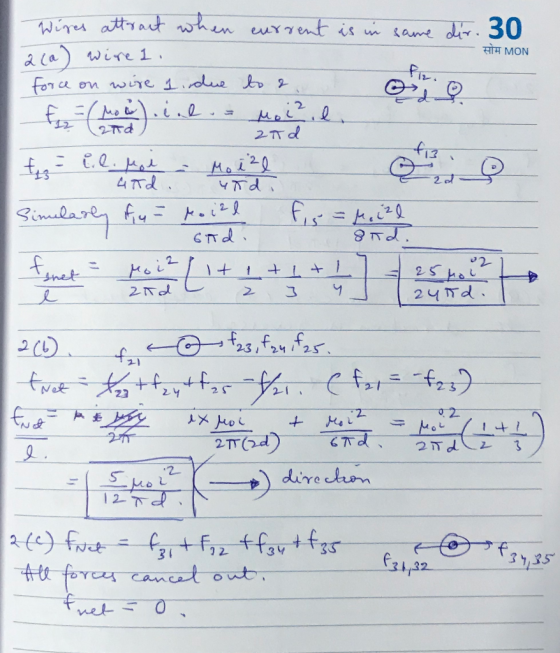

same dér. 30 Wires attract when current is in 2 (a) wire 1. Force on wire 1 i due to a HTH MON 25d 4td. Similarly fiu a Moize
