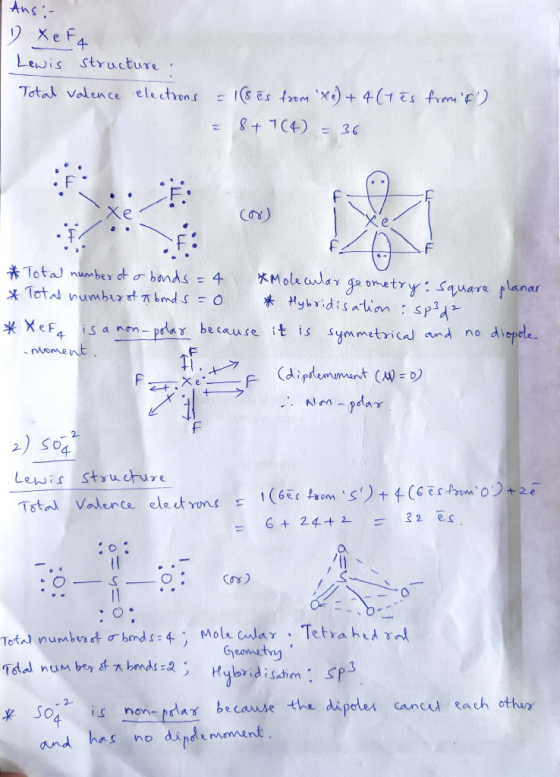

MacBook Air TOTAL DRAW A LEWIS STRUCTURE (INCLUDE ALL NON-ZERO FORMAL CHARGES) PART A CONTINUED). XeF...
Draw a Lewis structure for SO2 in which all atoms obey the octet rule. Show formal charges. Do not consider ringed structures. Draw a Lewis structure for SO2 in which all atoms have a formal charge of zero. Explicitly showing the zero charges is optional. Do not consider ringed structures.
Draw the Lewis structure of bromine pentafluoride, BrFs Do not include brackets or formal charges. If the molecule exhibits resonance, draw only one (1) of the resonance forrm Marvin JS @Help Edit drawing What is the electron-pair geometry of the bromine pentafluoride? What is the shape (molecular geometry) of the bromine pentafluoride? What is the hybridization of the central atom? sp sp3d sp3d2
Draw a Lewis structure for each conjugate acid or base. Write in any non-zero formal charges and make sure all atoms in your structures fully satisfy the octet rule. molecule 1 conjugate base of molecule 1 Н Click and drag to start drawing a structure. Η Η Η Η molecule 2 conjugate base of molecule 2 H-¢-6-H Click and drag to start drawing a structure.
(11) Draw the Lewis structure, give the electron domain geometry, molecular geometry, and formal charges for all species present for the following molecules/ions. (e) AsF (1) CH. (g) CIO, (h) BrO; (i) IF 6) XeF
points) Draw a valid Lewis structure for CIOs that minimizes formal charges on the Clearly indicate the formal charge on any non-zero atom. In the table provided, clearly indicae valence electrons contributed by each atom, electrons contributed by charge, and the overall total on the chlorine aumber of valence electrons. Your Lewis structure should include the non-bonded space provided, indicate the total number of non-bonded electron pairs in the structure Non bonded Lewis Structure # of NB electron pairs Cl...
Lewis Structure Problem Set You must draw the Lewis structure with formal charges) for each molecullion to receive full credit 1. How many of the following have lone pairs on the centralatom? PFS NCI Seo 2. In how many of the following does the central atom contain exactly 1 double bond? NHN NO: NH: H-N -H 0. b= -5: HNH 3. How many of the following have at least one atom with a formal charge that is not zero? Which...
Draw a Lewis structure for SO_2 in which all atoms obey the octet rule. Show formal charges. Do not consider ringed structures. Draw a Lewis structure for SO_2 in which all atoms have a formal charge of zero. Explicitly showing the zero charges is optional. Do not consider ringed structures.
Draw the Lewis Structure for ammonium, NH₄⁺. Include formal charges.

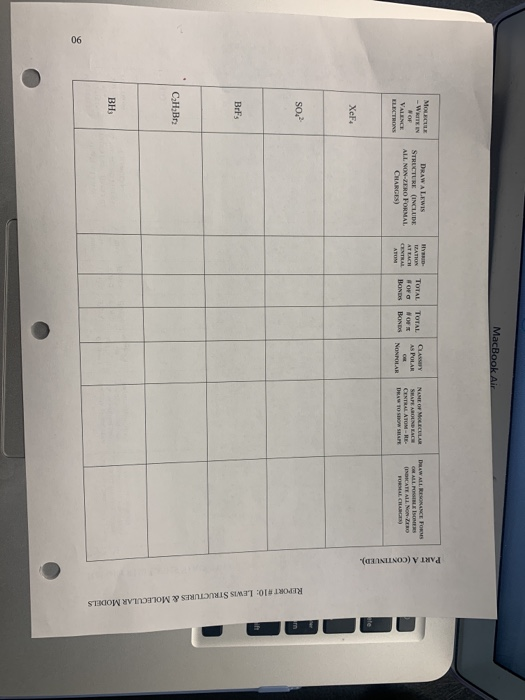

68 MOLECULE DRAWA LEWIs STRUCTURE (INCLUDE ALL NON-ZERO FORMAL CHARGES ID NaE MOECULA SHAPE AROUND EACH CENTRAL ATOM-RE DAW TO SH0W sAPE DEA ALL HsNANCE FORMS RALL POALE oMIERS tCATE AL Non-ERO CLASSFY -WRITE IN MATION TOTAL ТотAL. AS POLAR AT EACH oF VALENCE CENTRAL BONDS BONDS FORMALCHARCES NONPOLAR ATOM ELECTRON Но" H2O2 CH4O С-На
Draw the Lewis Structure model for As2S3. Include geometry, angles, polarity and formal charges. Draw the Lewis Structure model for As(CH3). Include geometry, angles, polarity and formal charges. Write the electronic configuration for arsenic and draw the box energy diagram showing placement of electrons.
