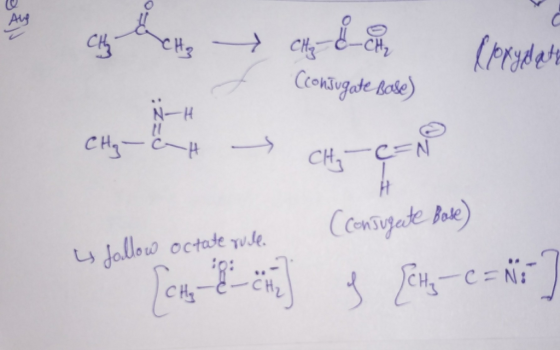

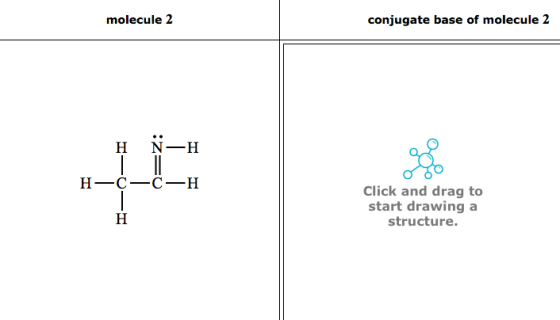

Draw a Lewis structure for each conjugate acid or base. Write in any non-zero formal charges and make sure all atoms in your structures fully satisfy the octet rule.
Draw a Lewis structure for each conjugate acid or base. Write in any non-zero formal charges...
Draw a Lewis structure of the molecule that matches the description below. All non-H atoms should have full octets, and all formal charges Description: The molecule is composed of 1C1, 2C's, 10, and 3H's and it contains a ring. 2 N* N x ¿ ? Click and drag to start drawing a structure.
Draw a Lewis structure for SO2 in which all atoms obey the octet rule. Show formal charges. Do not consider ringed structures. Draw a Lewis structure for SO2 in which all atoms have a formal charge of zero. Explicitly showing the zero charges is optional. Do not consider ringed structures.
Draw a Lewis structure for SO_2 in which all atoms obey the octet rule. Show formal charges. Do not consider ringed structures. Draw a Lewis structure for SO_2 in which all atoms have a formal charge of zero. Explicitly showing the zero charges is optional. Do not consider ringed structures.
Lewis Structure Problem Set You must draw the Lewis structure with formal charges) for each molecullion to receive full credit 1. How many of the following have lone pairs on the centralatom? PFS NCI Seo 2. In how many of the following does the central atom contain exactly 1 double bond? NHN NO: NH: H-N -H 0. b= -5: HNH 3. How many of the following have at least one atom with a formal charge that is not zero? Which...
44. (5 pts) Draw two Lewis structures for the ion Broj minimizes formal charges. Label any non-zero formal charge Ion Broj. Draw one that obeys the octet rule and one that
To learn to draw Lewis structure, assign formal charges and product likely structure based on formal charges. Use the following to drive Lewis structure from molecular formulas. Assign formal charges to each atom in the O_2 molecule shown here. Be sure to click the or bottom before clicking on the molecule. Click the or button to select it, then click on an atom, click on an atom, and them type the charge.
Write in any formal charges not equal to zero. If there are none, please check the box below. X x 5 H H :0: | HỮN––c=0 Η Η There are no missing formal charges. Examine the picture in the box below. Select the atomic orbitals in the table below that would blend together to produce the set of hybrid orbitals pictured int hybrid set, select "missing atomic orbitals'. х ? missing atomic orbitals D Convert the Lewis structure below into...
MacBook Air TOTAL DRAW A LEWIS STRUCTURE (INCLUDE ALL NON-ZERO FORMAL CHARGES) PART A CONTINUED). XeF SO2 Brfs REPORT #10: LEWIS STRUCTURES & MOLECULAR MODELS CH2Br2 BH
An incomplete Lewis structure is shown below. The structure only shows the atoms and how they are connected. The molecule has a net charge of +1. Complete the Lewis structure giving all atoms full octets. If there is more than one way to do this, draw resonance structures showing all possibilities. If not, just draw one Lewis structure. Be sure to write in any non-zero formal charges. SHOW ALL STRUCTURES NECESSARY H— C— C—N—H H
Add missing charges and non-bonding electrons. A Lewis structure for the carbonate ion (CO3-) is shown, but incomplete. Complete the structure by adding in formal charges and non-bonding electrons. Then draw the other two major resonance structures that fit the octet rule. Select Draw Rings More Erase III co 0- 2 Draw major resonance structure 2. Be sure to add charges and non-bonding electrons where appropriate. Draw major resonance structure 3. Be sure to add charges and non-bonding electrons where...
