In the following circuit find:
Please provide explanation also!
4. Ia the following circuit, the capacitor...
4. In the following circuit, the capacitor begins uncharged. At t-0, the switch is closed to...

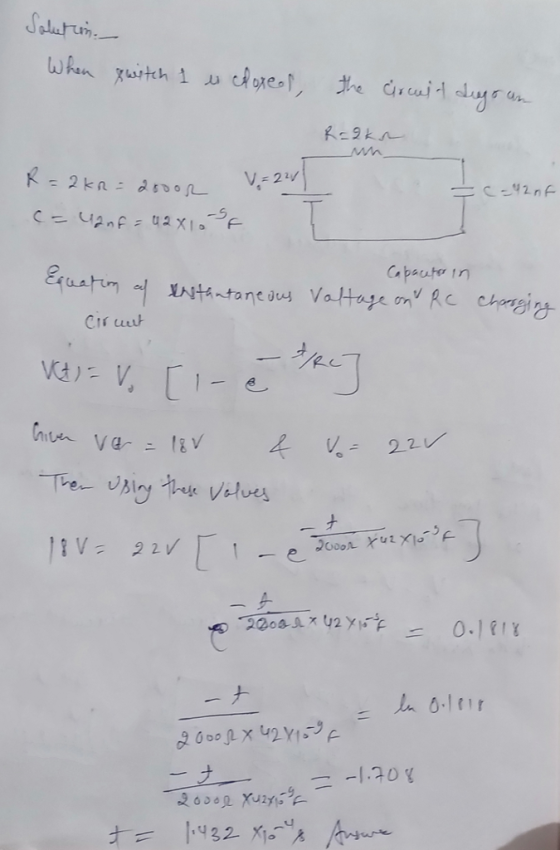

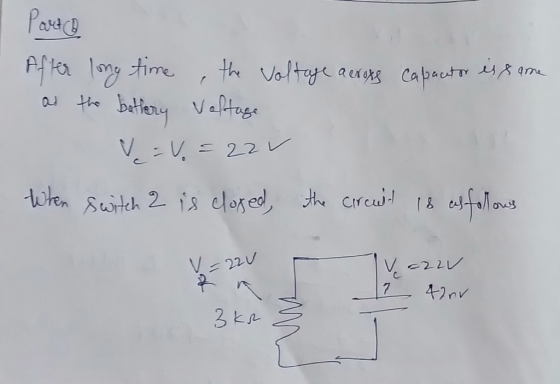

4. In the following circuit, the capacitor begins uncharged. At t-0, the switch is closed to position 1. SHOW ALL WORK (a) How much time does it take for the capacitor to be charged to 18 V? 2k Ohms 2 22 V 42 nF 3k Ohms
1. A circuit is composed of a capacitor connected in series to an inductor (L=2E-3 H)...
1. A circuit is composed of a capacitor connected in series to an inductor (L=2E-3 H) and resistor (R=100 Ohms). The capacitor is initially uncharged. What is the instantaneous current flowing through the circuit at time t = 0.34 s. 2. An LR circuit contains an ideal 50-V battery, a 42-H inductor having no resistance, a 21-Ω resistor, and a switch S, all in series. Initially, the switch is open and has been open for a very long time. At...
ln the figure below you see a circuit with a battery (V), a capacitor (C), and...
ln the figure below you see a circuit with a battery (V), a
capacitor (C), and two resistors (R1 and R2). The circuit has a
switch that can be in two positions: switched to touch point A or
switched to touch point B. By setting first the switch to A you can
charge the capacitor, and then switching it to B you discharge the
capacitor through the resistor. (This is the simple mechanism
behind a camera flash, you can imagine...
Consider the RC circuit in the figure below. The switch was at position a for a long period of time and it is suddenly...
Consider the RC circuit in the figure below. The switch was at
position a for a long period of time and it is
suddenly switched to position b at time t =
0.For
each statement select True or False.1. The current through the resistor equals the current across the
capacitor at all times.2. In the instant after the switch is thrown the current across the
capacitor is zero.3. In the instant after the switch is thrown the voltage across the...
9) For the circuit shown in the figure, the switch S is initially open and the...
9) For the circuit shown in the figure, the switch S is initially open and the capacitor is uncharged. The switch is then closed at time t 0. What is the time constant of the circuit? How many seconds after closing the switch will the energy stored in the capacitor be equal to 49.1 x 10-3 J? The capacitance is 89 x 10-6 F, the resistor is 0.56 x 106 ohms, and the voltage is 40. V
13. A circuit consist of a batter with an EMF of 25 V, a capacitor with...
13. A circuit consist of a batter with an EMF of 25 V, a capacitor with C= 60e-6 F, and a resistor with R = 70 ohms. The capacitor is initially uncharged and the switch in the circuit it open. What is the current in the circuit 2 ms (milliseconds) after the switch has been closed? A) 0.135 A B) 0.429 A C) 0.490 A D) 0.533 A E) 0.222 A Answer is E. Not sure why. Please help!
To study the behavior of circuit containing a resistor and a charged capacitor when the capacitor...
To study the behavior of circuit containing a resistor and a charged capacitor when the capacitor begins to discharge. A capacitor with capacitance C is initially charged with charge q. At time t = 0, a switch is thrown to close the circuit connecting the capacitor in series with a resistor of resistance R (Figure 1) Part AWhat happens to the charge on the capacitor immediately after the switch is thrown? The electrons on the negative plate of the capacitor are...
A resistor and capacitor are connected in series to a power supply of 50 Volts. The...
A resistor and capacitor are connected in series to a power supply of 50 Volts. The resistor has a value of 30000 ohms and the Capacitor is initially uncharged. After a time of 16.0 seconds, the capacitor is charged 72% fully charged. a) What is the capacitance of capacitor in this circuit? b) What is the time constant of this system? c) What is the current through the resistor at t= 20.0 seconds? d) What is the potential difference across...
A series circuit has a DC voltage source (42 volts), a resistor (70 ohms), a capacitor...
A series circuit has a DC voltage source (42 volts), a resistor (70 ohms), a capacitor (25 farads), and a switch. The capacitor is initially uncharged and the switch closes at t=0. Sketch the exponential current and capacitor voltage: i(t)=Aexp(-t/tau) +B, and Vc(t)=Dexp(-t/tau) +F. Find: A,B,D,F,tau,i(t=tau),i(t=4tau),Vc(t=tau),and Vc(t=3tau).
A circuit consists of a battery, a 100 kΩ resistor, 20.0 μF capacitor in series with...
A circuit consists of a battery, a 100 kΩ resistor, 20.0 μF capacitor in series with a switch which is initially in the open position. The capacitor is initially uncharged. Part A) If the EMF of the battery is ε=15.1 V, calculate the current through the resistor 6.00 seconds after the switch is closed. (Give answer in μA) Part B) Calculate the charge on the capacitor 6.00 seconds after the switch is closed. (Give answer in μC)
4. In the following circuit, the capacitor begins uncharged. At t-0, the switch is closed to position 1. SHOW ALL WORK (a) How much time does it take for the capacitor to be charged to 18 V? 2k Ohms 2 22 V 42 nF 3k Ohms
ln the figure below you see a circuit with a battery (V), a
capacitor (C), and two resistors (R1 and R2). The circuit has a
switch that can be in two positions: switched to touch point A or
switched to touch point B. By setting first the switch to A you can
charge the capacitor, and then switching it to B you discharge the
capacitor through the resistor. (This is the simple mechanism
behind a camera flash, you can imagine...
Consider the RC circuit in the figure below. The switch was at
position a for a long period of time and it is
suddenly switched to position b at time t =
0.For
each statement select True or False.1. The current through the resistor equals the current across the
capacitor at all times.2. In the instant after the switch is thrown the current across the
capacitor is zero.3. In the instant after the switch is thrown the voltage across the...
9) For the circuit shown in the figure, the switch S is initially open and the capacitor is uncharged. The switch is then closed at time t 0. What is the time constant of the circuit? How many seconds after closing the switch will the energy stored in the capacitor be equal to 49.1 x 10-3 J? The capacitance is 89 x 10-6 F, the resistor is 0.56 x 106 ohms, and the voltage is 40. V
