A circuit consists of a battery, a 100 kΩ resistor, 20.0 μF capacitor in series with...
A circuit consists of a battery, a 100 kΩ resistor, 20.0 μF capacitor in series with a switch which is initially in the open position. The capacitor is initially uncharged.
Part A)
If the EMF of the battery is ε=15.1 V, calculate the current through the resistor 6.00 seconds after the switch is closed. (Give answer in μA)
Part B) Calculate the charge on the capacitor 6.00 seconds after the switch is closed. (Give answer in μC)

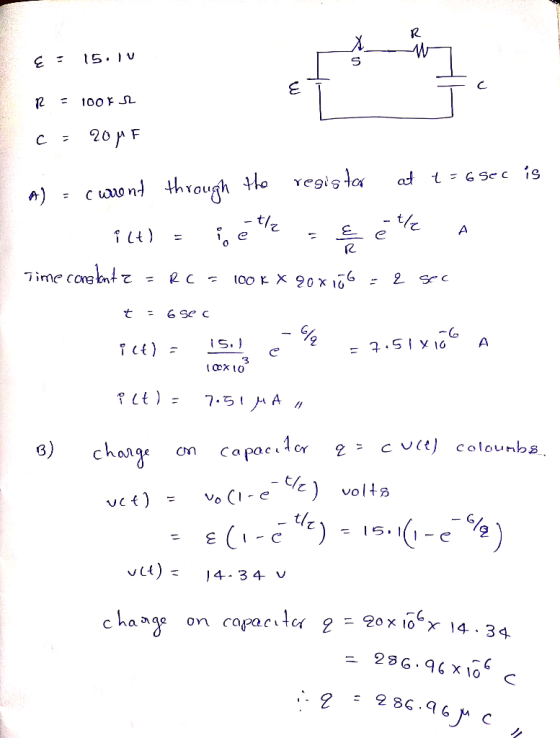

Homework Answers
Add Answer to:
A circuit consists of a battery, a 100 kΩ resistor, 20.0 μF
capacitor in series with...
A capacitor charging circuit consists of a battery, an uncharged 20 μF capacitor, and a 5.0...
A capacitor charging circuit consists of a battery, an uncharged 20 μF capacitor, and a 5.0 kΩ resistor. At t = 0 s the switch is closed; 0.15 s later, the current is 0.38 mA . Part A What is the battery's emf in volts? Express your answer to two significant figures and include the appropriate units.
A capacitor charging circuit consists of a battery, an uncharged 20 μF capacitor, and a 5.6...
A capacitor charging circuit consists of a battery, an uncharged 20 μF capacitor, and a 5.6 kΩ resistor. At t = 0 s the switch is closed; 0.15 s later, the current is 0.62 mA . What is the battery's emf?
A capacitor charging circuit consists of a battery, an uncharged 20 μF capacitor, and a 4.8...
A capacitor charging circuit consists of a battery, an uncharged 20 μF capacitor, and a 4.8 kΩ resistor. At t = 0 s the switch is closed; 0.15 s later, the current is 0.38 mA .What is the battery's emf?
A capacitor charging circuit consists of a battery, an uncharged 20 μF capacitor, and a 5.4...
A capacitor charging circuit consists of a battery, an uncharged 20 μF capacitor, and a 5.4 kΩ resistor. At t = 0 s the switch is closed; 0.15 s later, the current is 0.62 mA. What is the battery's emf? (Express your answer with the appropriate units.)
A capacitor charging circuit consists of a battery, an uncharged 20 μF capacitor, and a 5.2...
A capacitor charging circuit consists of a battery, an uncharged 20 μF capacitor, and a 5.2 kΩ resistor. At t = 0 s the switch is closed; 0.15 s later, the current is 0.38 mA . What is the batteries EMF? STEP BY STEP SOLUTION PLEASE!!!!
An uncharged 1.0-μF capacitor is connected in series with a 23-kΩ resistor, an ideal 7.0-V battery,...
An uncharged 1.0-μF capacitor is connected in series with a 23-kΩ resistor, an ideal 7.0-V battery, and an open switch. What is the voltage across the capacitor 11ms after closing the switch? A) 2.6V B) 2.7V C) 1.6V D) 0.62V
An 850.0 kΩ resistor and an uncharged 800 nF capacitor are in series with a 7.00...
An 850.0 kΩ resistor and an uncharged 800 nF capacitor are in series with a 7.00 V battery and a switch, which is initially open. At ? = 0 s, the switch is closed. How much charge is stored in the capacitor at ? = 0.2 s?
The figures show a simple RC circuit consisting of a 120.0 V battery in series with...
The figures show a simple RC circuit consisting of a 120.0 V battery in series with a 15.0 μF capacitor and a resistor. Initially, the switch S is open and the capacitor is uncharged. Two seconds after the switch is closed, the voltage across the resistor is 50 V. Q: How much charge is on the capacitor 2.0s after the switch is closed?
A 5.00 μF capacitor that is initially uncharged is connected in series with a 6.40 kΩ...
A 5.00 μF capacitor that is initially uncharged is connected in series with a 6.40 kΩ resistor and an emf source with E= 140 V negligible internal resistance. Just after the circuit is completed, what is the voltage drop across the capacitor? Just after the circuit is completed, what is the voltage drop across the resistor? Just after the circuit is completed, what is the charge on the capacitor? Just after the circuit is completed, what is the current through...
A capacitor of capacitance C= 2.5 μF is initially uncharged. It is connected in series with a switch of negligible resistance
A capacitor of capacitance C= 2.5 μF is initially uncharged. It is connected in series with a switch of negligible resistance, a resistor of resistance R= 14.5 kΩ, and a battery which provides a potential difference of VB = 160 V.Part (a) Immediately after the switch is closed, what is the voltage drop Vc, in volt across the capacitor?Part (b) Immediately after the switch is closed, what is the voltage drop VR, in volt: across the resistor?Part (c) Immediately after...
