45) Two resistors with resistances of 5.02 and 9.00 are connected in parallel. A 4.0-12 resistor is then connected in series with this parallel combination. An ideal 6.0-V battery is then connected across the series-parallel combination. What is the current through (a) the 4.0-22 resistor and (b) the 5.0-92 resistor? 58) If V = 40 V and the battery is ideal, what is the potential difference across R1 in the figure? R; = 102 Rz=2022 ? R =3 2017 w...
What different resistances can be obtained by using two 2.0-Ω resistors and one 4.0-Ω resistor? You...

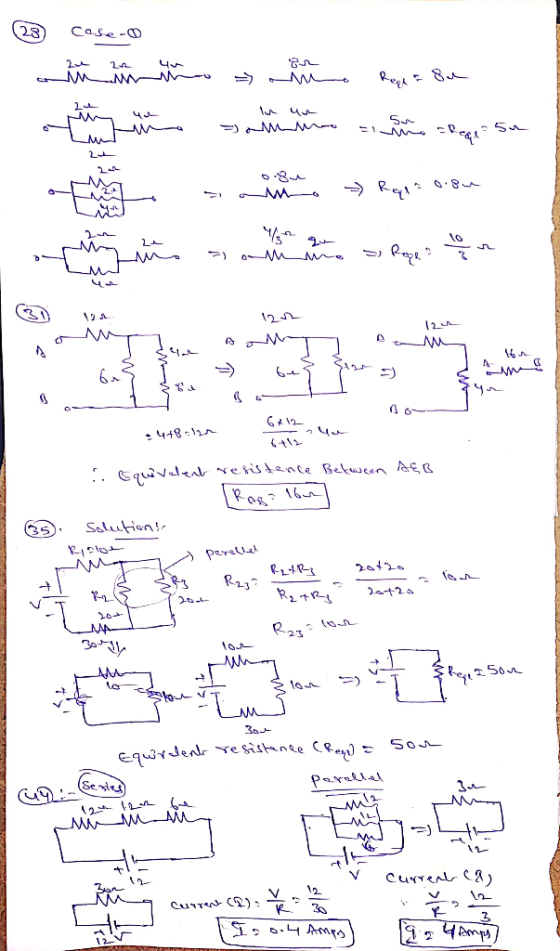

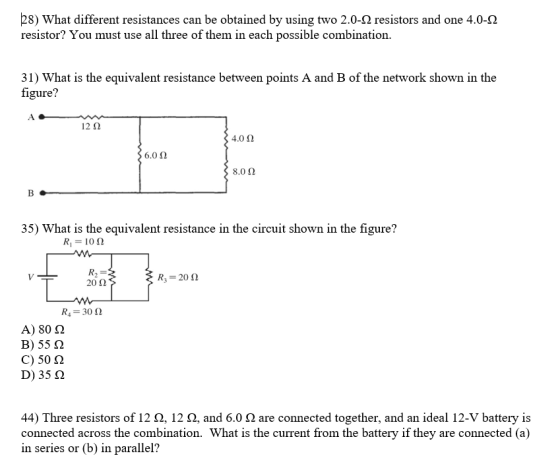

What different resistances can be obtained by using two 2.0-Ω resistors and one 4.0-Ω resistor? You must use all three of them in each possible combination.
Three resistors having resistances of 4.0 Ohm, 6.0 Ohm, and 10.0 Ohm are connected in parallel....
Three resistors having resistances of 4.0 Ohm, 6.0 Ohm, and 10.0 Ohm are connected in parallel. If the combination is connected in series with an ideal 12-V battery and a 2.0-Ohm resistor, what is the current through the 10.0-Ohm resistor?
Three resistors having resistances of 4.0 ohms, 6.0 ohms , and 10.0 ohms are connected in...
Three resistors having resistances of 4.0 ohms, 6.0 ohms , and 10.0 ohms are connected in parallel. If the combination is connected in series with an ideal 12-V battery and a 2.0 ohms- resistor, what is the current through the 10.0 ohms resistor? a- 6.4A b- 16A c-0.59A d-11.2
I need help and a bit confused on the following questions. Thanks in advance! 1. Three...
I need help and a bit confused on the following questions.
Thanks in advance!
1. Three resistors with resistances of 5.0 ?, 9.0 ?, and 12.0 ?,
respectively, are connected in a series circuit with a 6.0 V
battery. Find the potential difference across the 5.0 ?
resistor.
2. Following the steps and answering the questions below, find
the equivalent resistance of the combination of resistors shown in
the figure:
We will break this complex circuit into simpler combinations of...
A four-resistor circuit is shown in the figure. The values of the resistors are as follows:...
A four-resistor circuit is shown in the figure. The values of the resistors are as follows: Ri=10 Ohms, Rz=R3=6 Ohms, R4=2 Ohms. What is the equivalent resistance Reg for this circuit? R M R3 R3 R3 > O 0.50 ohms O 2.00 ohms 0 3.33 ohms 0 5.25 ohms o 7.50 ohms Question 8 5 pts The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA. VB, and Vc). The resistor values...
Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A...
Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A potential difference of 12.0V is maintained between points a and b. Three resistors connected in parallel. The Another circuit with three resistors and a voltage across each resistor is 12.0 V. battery. Is it equivalent to the circuit in (a)? a Ž 3.00 6.00 9.00 3.00 6.00 09.00 (a) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that we are...
If both questions can be answeredthanks!Find the Equivalent Resistance Four resistors are connected as...
Find the Equivalent ResistanceFour resistors are connected as shown in figure (a), below. (Let R=3.00 Ω.)The original network of resistors is reduced to a single equivalent resistance.(a) Find the equivalent resistance between points \(a\) and \(\mathrm{c}\).solutionConceptualize Imagine charges flowing into and through this combination from the left. All charges must pass from a to \(b\) through the first two resistors, but the charges split at \(b\) into Categorize Because of the simple nature of the combination of resistors in the...
Problem 1 R=10012 E15 VI C=60 F R=20012 C-40F R-150K In the figure above, two capacitors...
Problem 1 R=10012 E15 VI C=60 F R=20012 C-40F R-150K In the figure above, two capacitors and three resistors are connected to a 15 V battery as shown. At t=0, switch S is closed. What is the (a) equivalent capacitance, (b) equivalent resistance and (c) time constant of the circuit. At t=5.0 s, calculate (d) the current through the battery, and (e) charge on C. Problem 2 Consider the following circuit, 3 batteries with EMF: E1 = 6 V, E2...
Three resistors, R1 2.0 Ω, R2:4.0 Ω, and R3:6.0 Ω are connected as shown in the...
Three resistors, R1 2.0 Ω, R2:4.0 Ω, and R3:6.0 Ω are connected as shown in the figure below. For Circuit 1 (left), (a) Find the equivalent resistance of the combination; .e. [Req1] in Ohms. (b) Find the current that passes through the combination if a potential of 8.0 V is applied to the terminals: L.e. [Itot1] in A (c) Find the voltage across and the current through each resistor; L.e R1: Voltage: [VR11] V and Current: [IR11] A R2: Voltage:...
45) Two resistors with resistances of 5.02 and 9.00 are connected in parallel. A 4.0-12 resistor is then connected in series with this parallel combination. An ideal 6.0-V battery is then connected across the series-parallel combination. What is the current through (a) the 4.0-22 resistor and (b) the 5.0-92 resistor? 58) If V = 40 V and the battery is ideal, what is the potential difference across R1 in the figure? R; = 102 Rz=2022 ? R =3 2017 w...
Three resistors having resistances of 4.0 Ohm, 6.0 Ohm, and 10.0 Ohm are connected in parallel. If the combination is connected in series with an ideal 12-V battery and a 2.0-Ohm resistor, what is the current through the 10.0-Ohm resistor?
I need help and a bit confused on the following questions.
Thanks in advance!
1. Three resistors with resistances of 5.0 ?, 9.0 ?, and 12.0 ?,
respectively, are connected in a series circuit with a 6.0 V
battery. Find the potential difference across the 5.0 ?
resistor.
2. Following the steps and answering the questions below, find
the equivalent resistance of the combination of resistors shown in
the figure:
We will break this complex circuit into simpler combinations of...
A four-resistor circuit is shown in the figure. The values of the resistors are as follows: Ri=10 Ohms, Rz=R3=6 Ohms, R4=2 Ohms. What is the equivalent resistance Reg for this circuit? R M R3 R3 R3 > O 0.50 ohms O 2.00 ohms 0 3.33 ohms 0 5.25 ohms o 7.50 ohms Question 8 5 pts The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA. VB, and Vc). The resistor values...
Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A potential difference of 12.0V is maintained between points a and b. Three resistors connected in parallel. The Another circuit with three resistors and a voltage across each resistor is 12.0 V. battery. Is it equivalent to the circuit in (a)? a Ž 3.00 6.00 9.00 3.00 6.00 09.00 (a) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that we are...
Problem 1 R=10012 E15 VI C=60 F R=20012 C-40F R-150K In the figure above, two capacitors and three resistors are connected to a 15 V battery as shown. At t=0, switch S is closed. What is the (a) equivalent capacitance, (b) equivalent resistance and (c) time constant of the circuit. At t=5.0 s, calculate (d) the current through the battery, and (e) charge on C. Problem 2 Consider the following circuit, 3 batteries with EMF: E1 = 6 V, E2...
Three resistors, R1 2.0 Ω, R2:4.0 Ω, and R3:6.0 Ω are connected as shown in the figure below. For Circuit 1 (left), (a) Find the equivalent resistance of the combination; .e. [Req1] in Ohms. (b) Find the current that passes through the combination if a potential of 8.0 V is applied to the terminals: L.e. [Itot1] in A (c) Find the voltage across and the current through each resistor; L.e R1: Voltage: [VR11] V and Current: [IR11] A R2: Voltage:...
