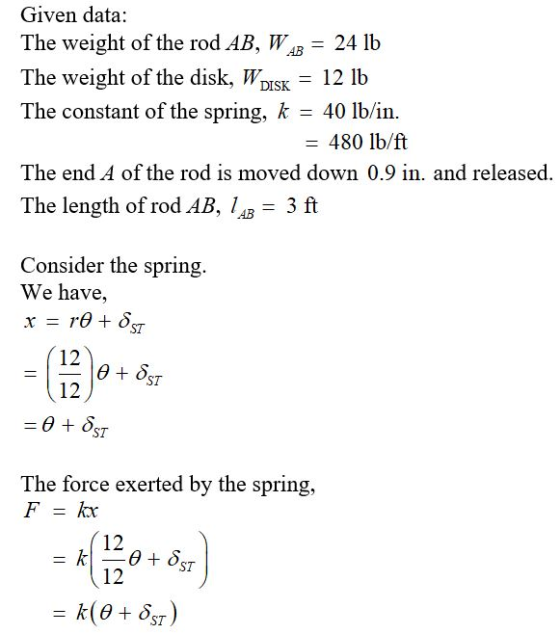

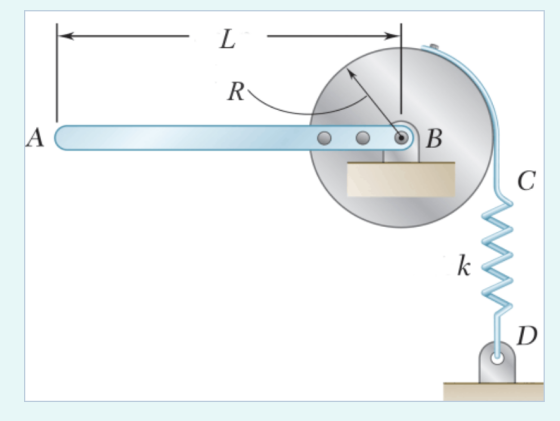

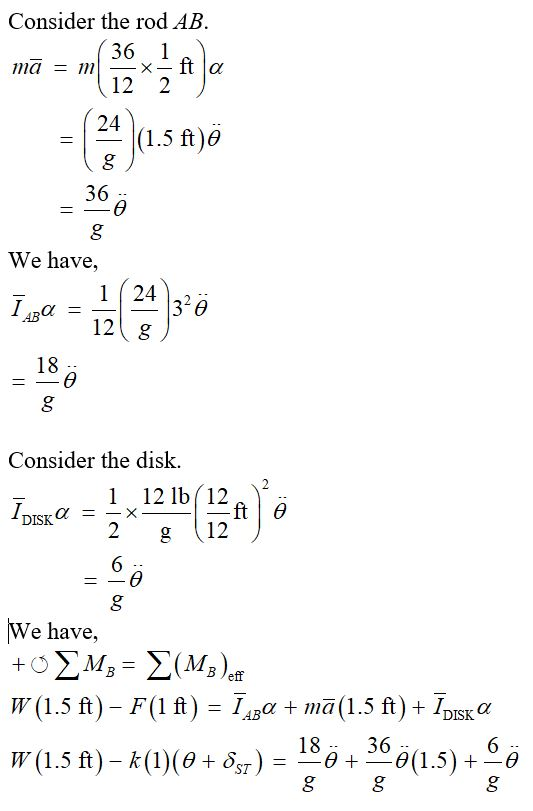

A 24 lb uniform slender rod AB of length L= 36 in is fixed to a 12 lb uniform disk of radius, R= 12 in , and both are pinned at B as shown. A belt is attached to the rim of the disk and then to a spring with spring constant, k= 40 lb/in which holds the rod/disk at rest in the equilibrium position shown.
natural period is 0.446 s

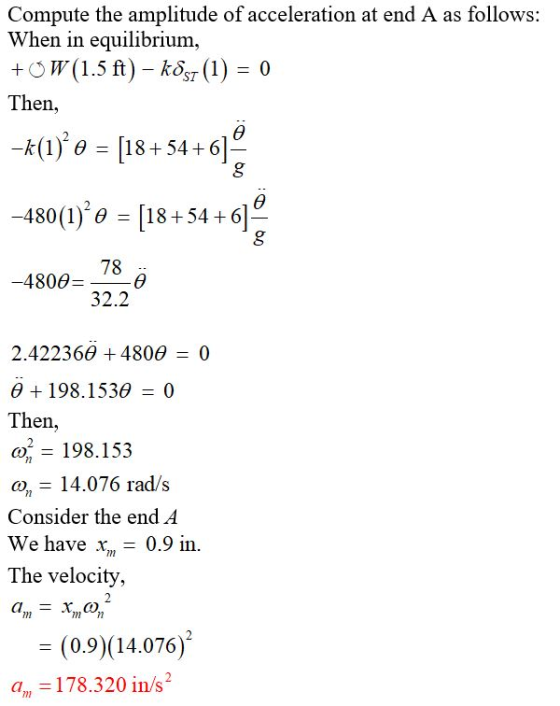

If end A is displaced a distance of 0.9 in and released from rest, determine the amplitude of the acceleration at end A.
Homework Answers
