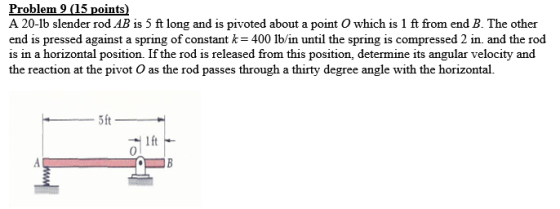

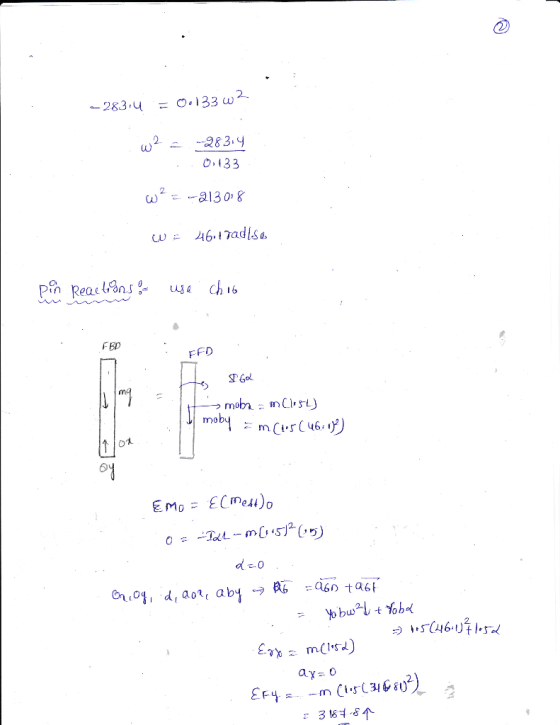

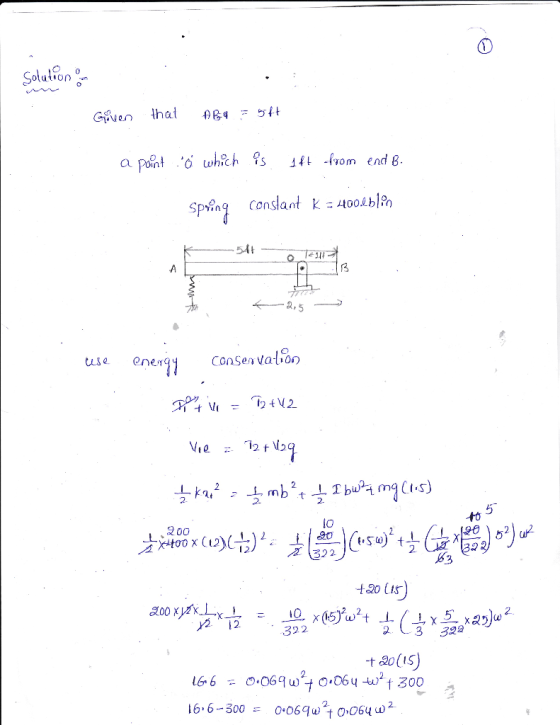

Problem 9 (15 points) A 20-lb slender rod AB is 5 ft long and is pivoted about a point O which is...
A slender 9 lb rod can rotate in a vertical plane about a pivot at B. A spring of constant k-30 lb/ft and of unstretched length 6 in. is attached to the rod as shown. The rod is released from rest in...
A slender 9 lb rod can rotate in a vertical plane about a pivot at B. A spring of constant k-30 lb/ft and of unstretched length 6 in. is attached to the rod as shown. The rod is released from rest in the position shown. 1) Determine its angular velocity after the rod has rotated through 45.(1 point) 2) Determine the reaction force at pivot point B after the rod rotated through 45. (1 point) 24 in 5 in. 4...
Include a constant counter clockwise moment of 40 lb.ft A slender 9-lb rod can rotate in...
Include a constant counter
clockwise moment of 40 lb.ft
A slender 9-lb rod can rotate in a vertical plane about a pivot at B. A spring of constant k 30 lb/ft and of unstretched length 6 in. is attached to the rod as shown. Knowing that the rod is released from rest in the position shown, determine its angular velocity after it has rotated through 90 Fig. P17.18 24 in 5 in. 14in.
A 24 lb uniform slender rod AB of length L= 36 in is fixed to a...
A 24 lb uniform slender rod AB of length L= 36 in is fixed to a
12 lb uniform disk of radius, R= 12 in , and both are pinned at B
as shown. A belt is attached to the rim of the disk and then to a
spring with spring constant, k= 40 lb/in which holds the rod/disk
at rest in the equilibrium position shown.
natural period is 0.446 s
If end A is displaced a distance of 0.9...
(10 points) A uniform rod of length L=2m and mass M#2kg is pivoted about a horizontal...
(10 points) A uniform rod of length L=2m and mass M#2kg is pivoted about a horizontal frict o less pi rod is released from rest at an angle of 30° below the horizontal. The moment of inertia of the rod abou 2 kgm2. a) Draw a diagram of the question showing all related quantities, (5 points) b) Find the angular speed of the rod when it passes through the ve vertical position (5 points
CLASS ID#: (3) GIVEN: (35 PTS) A slender 9-Ib rod AC can rotate in a vertical...
CLASS ID#: (3) GIVEN: (35 PTS) A slender 9-Ib rod AC can rotate in a vertical plane about a pivot at B. Attached to the rod at C is a spring with a stiffness of k=30 lb/ft and an unstretched length 6 inches. The rod is released from rest in the position shown. FIND: (A) (-10 Pts) The ANGULAR VELOCITY (c) of the rod AC after it has rotated through 90° (B) (-10 pts) The corresponding REACTION at the pivot...
1. Consider a beam pivoted at point A with a cantilevered end at B. The weight...
1. Consider a beam pivoted at point A with a cantilevered end at B. The weight of the beam is 30-1b, and one end is supported with a vertical spring (k = 1,800 lb/in) compressed 1 inch, to keep it in a horizontal position. If the beam is released from rest at this position, use the conservation of energy method to determine the angular velocity at the instant it becomes vertical. Assume the beam can be treated as a slender...
4. The pendulum in Figure 4 consists of a 10 lb sphere of radius 1.0 f and a 5 lb slender rod of length 2.0 ft. Determine: (10 pts) the angularacceleration of the pendulum immediately after th...
4. The pendulum in Figure 4 consists of a 10 lb sphere of radius 1.0 f and a 5 lb slender rod of length 2.0 ft. Determine: (10 pts) the angularacceleration of the pendulum immediately after the string is cut and the reaction at the pin support O a. b. (10 pts) Using Work-Energy determine the angular velocity of the pendulum as it swings through the vertical position and the reaction at the pin O at that instant. BC 1...
The diagram shows a thin rod of uniform mass distribution pivoted about one end by a...
The diagram shows a thin rod of uniform mass distribution pivoted about one end by a pin passing through that point. The mass of the rod is 0.460 kg and its length is 1.50 m. When the rod is released from its horizontal position, it swings down to the vertical position as shown. A thin rod labeled M is initially horizontal, with a pivot on its left end. The rod then rotates clockwise by its left end until it is...
The hollow tube is pivoted about a horizontal axis through point O and is made to...
The hollow tube is pivoted about a horizontal axis through point O and is made to rotate in the vertical plane with a constant counterclockwise angular velocity theta = 3.4 rad/sec. If a 0.19-lb particle is sliding in the tube toward O with a velocity of 4.0 ft/sec relative to the tube when the position theta = 32 degree is passed, calculate the magnitude N of the normal force exerted by the wall of the tube on the particle at...
20 4 points Along, uniform rod of length 1 = 1.0m is pivoted about a frictionless,...
20 4 points Along, uniform rod of length 1 = 1.0m is pivoted about a frictionless, horizontal pin through one end. The rodis nudged from rest in a vertical position as shown below. At the instant the rod is horizontal, what is its angular speed? Pin O 6.8 Rad/s 2.3 Rad/s 5.4 Rad/s 24.4 Rad/s 12.2 Rad/s
A slender 9 lb rod can rotate in a vertical plane about a pivot at B. A spring of constant k-30 lb/ft and of unstretched length 6 in. is attached to the rod as shown. The rod is released from rest in the position shown. 1) Determine its angular velocity after the rod has rotated through 45.(1 point) 2) Determine the reaction force at pivot point B after the rod rotated through 45. (1 point) 24 in 5 in. 4...
Include a constant counter
clockwise moment of 40 lb.ft
A slender 9-lb rod can rotate in a vertical plane about a pivot at B. A spring of constant k 30 lb/ft and of unstretched length 6 in. is attached to the rod as shown. Knowing that the rod is released from rest in the position shown, determine its angular velocity after it has rotated through 90 Fig. P17.18 24 in 5 in. 14in.
A 24 lb uniform slender rod AB of length L= 36 in is fixed to a
12 lb uniform disk of radius, R= 12 in , and both are pinned at B
as shown. A belt is attached to the rim of the disk and then to a
spring with spring constant, k= 40 lb/in which holds the rod/disk
at rest in the equilibrium position shown.
natural period is 0.446 s
If end A is displaced a distance of 0.9...
(10 points) A uniform rod of length L=2m and mass M#2kg is pivoted about a horizontal frict o less pi rod is released from rest at an angle of 30° below the horizontal. The moment of inertia of the rod abou 2 kgm2. a) Draw a diagram of the question showing all related quantities, (5 points) b) Find the angular speed of the rod when it passes through the ve vertical position (5 points
CLASS ID#: (3) GIVEN: (35 PTS) A slender 9-Ib rod AC can rotate in a vertical plane about a pivot at B. Attached to the rod at C is a spring with a stiffness of k=30 lb/ft and an unstretched length 6 inches. The rod is released from rest in the position shown. FIND: (A) (-10 Pts) The ANGULAR VELOCITY (c) of the rod AC after it has rotated through 90° (B) (-10 pts) The corresponding REACTION at the pivot...
1. Consider a beam pivoted at point A with a cantilevered end at B. The weight of the beam is 30-1b, and one end is supported with a vertical spring (k = 1,800 lb/in) compressed 1 inch, to keep it in a horizontal position. If the beam is released from rest at this position, use the conservation of energy method to determine the angular velocity at the instant it becomes vertical. Assume the beam can be treated as a slender...
4. The pendulum in Figure 4 consists of a 10 lb sphere of radius 1.0 f and a 5 lb slender rod of length 2.0 ft. Determine: (10 pts) the angularacceleration of the pendulum immediately after the string is cut and the reaction at the pin support O a. b. (10 pts) Using Work-Energy determine the angular velocity of the pendulum as it swings through the vertical position and the reaction at the pin O at that instant. BC 1...
The hollow tube is pivoted about a horizontal axis through point O and is made to rotate in the vertical plane with a constant counterclockwise angular velocity theta = 3.4 rad/sec. If a 0.19-lb particle is sliding in the tube toward O with a velocity of 4.0 ft/sec relative to the tube when the position theta = 32 degree is passed, calculate the magnitude N of the normal force exerted by the wall of the tube on the particle at...
20 4 points Along, uniform rod of length 1 = 1.0m is pivoted about a frictionless, horizontal pin through one end. The rodis nudged from rest in a vertical position as shown below. At the instant the rod is horizontal, what is its angular speed? Pin O 6.8 Rad/s 2.3 Rad/s 5.4 Rad/s 24.4 Rad/s 12.2 Rad/s
