Homework Answers
2.
considering the moment about foot
w * 0.9 = 1.5 Fh
59* 9.8* 0.9 / 1.5 = Fh
Fh = 346.92 N
equilibrium of forces along vertical
Ff + Fh = mg
Ff + 346.92 = 59* 9.8
Ff = 231.28 N
force on each foot = Ff/2 = 115.64 N
====
plz post other problem separately
Comment before rate in case any doubt, will reply for sure.. goodluck
Add Answer to:

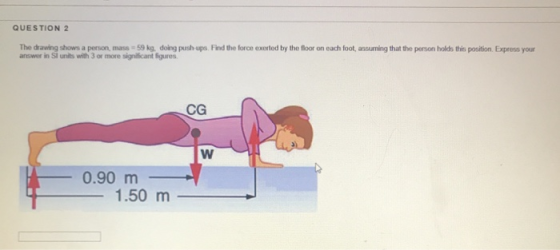

QUESTION 2 The drawing shows a person mass-59 kg. doing push-ups. Find the force exerted by...
QUESTION 1 A wrench is used to loosen a nut as shown below by applying a...
QUESTION 1 A wrench is used to loosen a nut as shown below by applying a force 13 N. Determine the torque (magnitude and direction:+for CCW and for CW) about the nut joint Express your answer in Sl units with 3 or more significant figures 0.28 m QUESTION 2 The drawing shows a person mass 59 kg. doing push-ups. Find the force exerted by the floor on each foot assuming that the person holds this position Express your answer in...
QUESTION 3 A uniform lunch tray is being held in one hand, as the drawing illustrates....

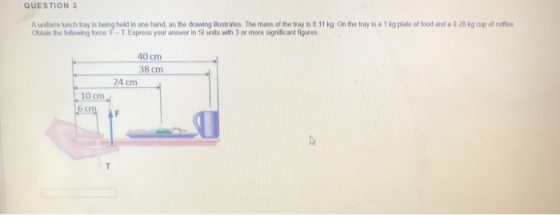

QUESTION 3 A uniform lunch tray is being held in one hand, as the drawing illustrates. The mass of the tray is 0.11 kg On the tray is a 1 kg plate of food and a 0.28 kg cup of coffee Obtain the following force F-T Express your answer in Sl units with 3 or more significant figures 40 cm 38 cm 24 cm 10 cm 6 cm QUESTION 4 A person exerts a horizontal force of 190 N in...
Constants A 71.0 kg weight lifter is doing arm raises using a 7.50 kg weight in...
Constants A 71.0 kg weight lifter is doing arm raises using a 7.50 kg weight in her hand. Her arm pivots around the elbow joint, starting 40.0 below the horizontal. (See the figure(Figure 1).) Biometric measurements have shown that both forearms and the hands together account for 6.40 % of a person's weight. Since the upper arm is held vertically, the biceps muscle always acts vertically and is attached to the bones of the forearm 5.50 cm from the elbow...
A 75.0 kg weight lifter is doing arm raises using a 7.50 kg weight in her...
A 75.0 kg weight lifter is doing arm raises using a 7.50 kg weight in her hand. Her arm pivots around the elbow joint, starting 40.0 below the horizontal. (See the figure (Figure 1).) Biometric measurements have shown that both forearms and the hands together account for 5.75% of a person's weight. Since the upper arm is held vertically, the biceps muscle always acts vertically and is attached to the bones of the forearm 5.50 cm from the elbow Part...
Part A A 75.0 kg weight lifter is doing arm raises using a 7.50 kg weight...
Part A A 75.0 kg weight lifter is doing arm raises using a 7.50 kg weight in her hand. Her arm pivots around the elbow joint, starting 40.0° below the horizontal (See the figure(Figure 1).) Biometric measurements have shown that both forearms and the hands together account for 5.75 % of a person's weight. Since the upper arm is held vertically, the biceps muscle always acts vertically and is attached to the bones of the forearm 5.50 cm from the...
Interactive Solution 9.15 illustrates how to model this type of problem. A person exerts a horizontal...
Interactive Solution 9.15 illustrates how to model this type of problem. A person exerts a horizontal force of 190 N in the test apparatus shown in the figure. Find the horizontal force M that his flexor muscle exerts on his forearm. 190 N 0.34 m Flexor muscle] 0.054 m Elbow joint
Find the elbow joint reaction force (magnitude and direction) and the elbow flexor muscle force for...
Find the elbow joint reaction force (magnitude and direction) and the elbow flexor muscle force for the instant described below. Assume the forearm, hand, and ball to be a single rigid body. This rigid body has a mass of 3 kg; it has a mass moment of inertia about its center of mass of 0.018 kg*m2 ; its center of mass is 19 cm from the center of the elbow joint. The rigid body has an angular acceleration (α) of...
How much force (in N) must the biceps muscle exert when a 25.0 kg mass is...
How much force (in N) must the biceps muscle exert when a 25.0 kg mass is held in the hand in a stationary position when the arm is 17.4° below the horizontal? Assume the mass of the forearm is 2.46 kg. Distances relative to the elbow joint are reb = 5.12 cm; recg = 16.5 cm; ren = 37.5 cm where the distances are: eb = elbow—biceps; ecg = elbow—forearm center of gravity; eh = elbow-hand. A marble column 0.890...
In an isometric exercise a person places a hand on a scale and pushes vertically downward,...

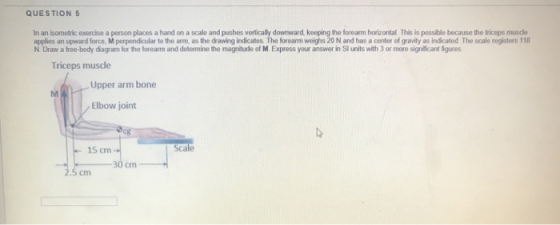

In an isometric exercise a person places a hand on a scale and
