In the figure below the mass is known, M, as is the mass and radius of...

Question

Question

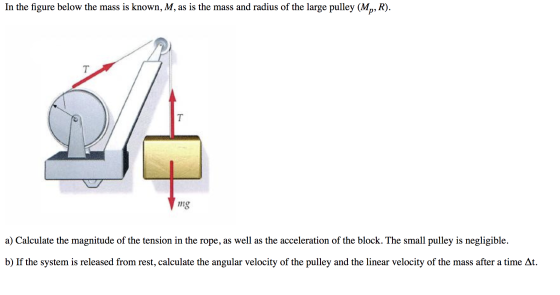

In the figure below the mass is known, M, as is the mass and radius of the large pulley (My, R). mg a) Calculate the magnitud

science physics

Answer 1

Answer #1

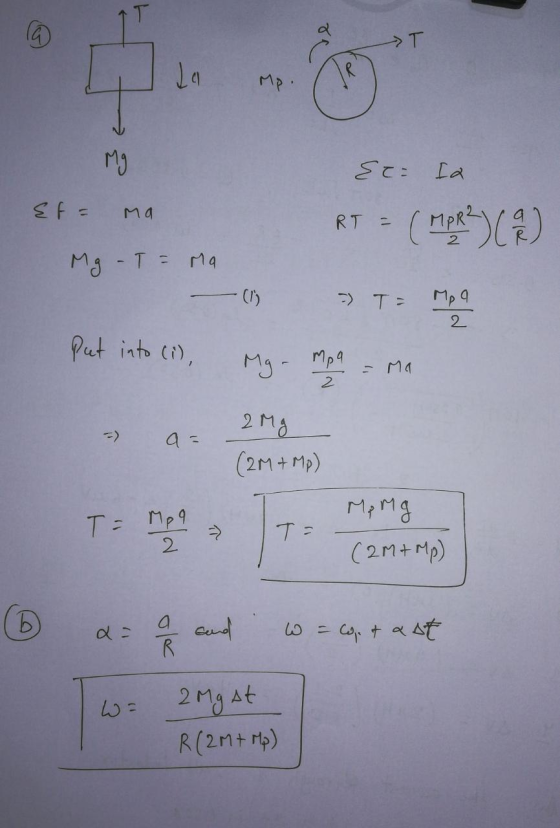

T 29 rs Ef= ma & Ia RT = ( MPR²) (A) Mg - T = Ma put into (i), (1) - T = Mea Mg - Mpa = ma -> a = 2 Mg (2M + Mp) T- IT- Mp M

Answer 2
