An green hoop with mass mh = 2.8 kg and radius Rh = 0.17 m hangs...
An green hoop with mass mh = 2.8 kg and radius Rh = 0.17 m hangs from a string that goes over a blue solid disk pulley with mass md = 2.4 kg and radius Rd = 0.08 m. The other end of the string is attached to a massless axel through the center of an orange sphere on a flat horizontal surface that rolls without slipping and has mass ms = 3.3 kg and radius Rs = 0.18 m. The system is released from rest.

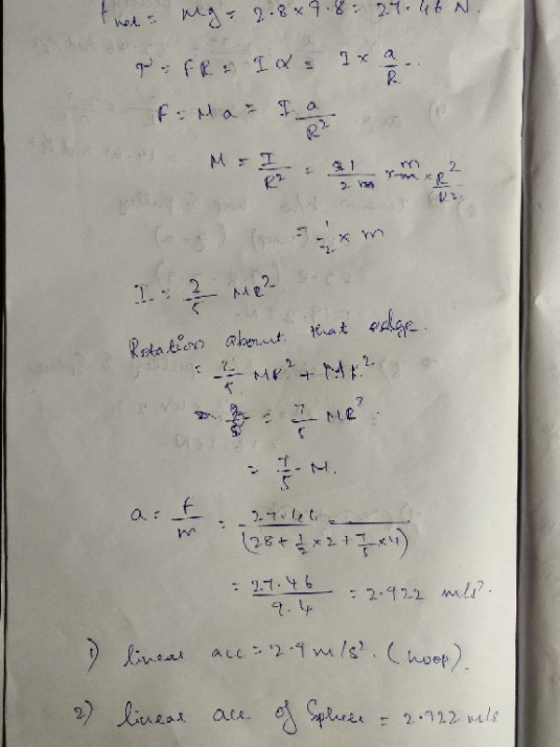

*What is magnitude of the linear acceleration of the hoop?
*What is magnitude of the linear acceleration of the sphere?

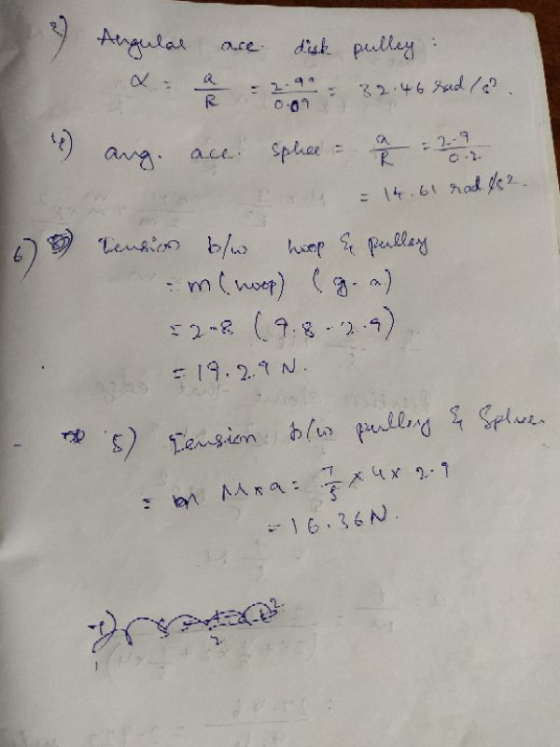

*What is the magnitude of the angular acceleration of the disk pulley?
*What is the magnitude of the angular acceleration of the sphere?
*What is the tension in the string between the sphere and disk pulley?
*What is the tension in the string between the hoop and disk pulley?
*The green hoop falls a distance d = 1.55 m. (After being released from rest.)
*The green hoop falls a distance d = 1.55 m. (After being released from rest.)
How much time does the hoop take to fall 1.55 m?
*What is the magnitude of the velocity of the green hoop after it has dropped 1.55 m?
*What is the magnitude of the final angular speed of the orange sphere (after the green hoop has fallen the 1.55 m)?
