A 8.50-kg hanging object is connected by a light, inextensible cord over a light

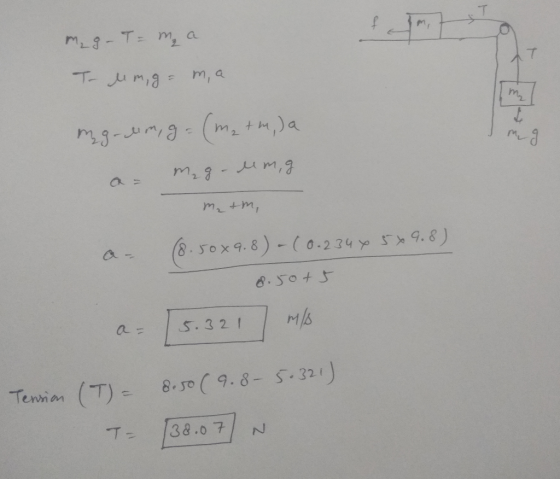

A 8.50-kg hanging object is connected by a light, inextensible cord over a light, frictionless pulley to a 5.00-kg block that is sliding on a flat table. Taking the coefficient of kinetic friction as .234, find the tension in the string. (The block slides to the right in the diagram below.)
_______ N
Homework Answers
Add Answer to:
A 8.50-kg hanging object is connected by a light, inextensible cord over a light
A 8.90-kg hanging object is connected by a light, inextensible cord over a light
A 8.90-kg hanging object is connected by a light, inextensible cord over a light, frictionless pulley to a 5.00-kg block that is sliding on a flat table. Taking the coefficient of kinetic friction as 0.150, find the tension in the string. (The block slides to the right in the diagram below.)
A 9.70-kg hanging object is connected by a light, inextensible cord over a light, frictionless pulley...
A 9.70-kg hanging object is connected by a light, inextensible
cord over a light, frictionless pulley to a 5.00-kg block that is
sliding on a flat table. Taking the coefficient of kinetic friction
as 0.243, find the tension in the string.
N
A 9.20-kghanging object is connected by a light, inextensible cord over alight, frictionless pulley...
A 9.20-kg hanging object is connected by a light, inextensible cord over a light, frictionless pulley to a 5.00-kg block that is sliding on a flat table. Taking the coefficient of kinetic friction as 0.158, find the tension in the string.
a 9.00 kg hanging object is connected by a light, in extensible cord over a light,...
a 9.00 kg hanging object is connected by a light, in extensible cord over a light, frictionless pulley to a 5.00 kg block that is sliding on a flat table. If the block starts at rest, determine the values of the coefficient of static frection between the 5 kg mass and the table such that the system remains at rest.
A 9.00 kg hanging weight is connected by a string over a pulley to a 5.00 kg block that is sliding on a flat table
A 9.00 kg hanging weight is connected by a string over a pulley to a 5.00 kg block that is sliding on a flat table (Fig. P5.24). If the coefficient of kinetic friction is 0.183, find the tension in the string.
A 9.00-kg hanging weight is connected by a string over a pulley to a 5.00-kg block that is sliding on a flat table Fig
A 9.00-kg hanging weight is connected by a string over a pulley to a 5.00-kg block that is sliding on a flat table Fig. If the coefficient of kinetic friction is 0.200, find the tension in the string.(A)39. 2A (B)38. 57N (C)37.23N (D)34.55N (E)35. 66N
A 9.0-kg hanging weight is connected by a string over a pulley to a 5.0-kg block...
A 9.0-kg hanging weight is connected by a string over a pulley to a 5.0-kg block sliding on a flat table. If the table is frictionless, find the acceleration of the system
Problem#7 Two boxes are connected by a weightless cord running over a very light frictionless pulley...
Problem#7 Two boxes are connected by a weightless cord running over a very light frictionless pulley as shown in the figure. Box A, of mass 8.0 kg, is initially at rest on the top of the table. The coefficient of kinetie friction between box A and the table is 0.10. Box B has a mass of 15.0kg. and the system begins to move just after it is released. (a Draw the free-body diagrams for each of the boxes, identifyi each...
A mass m1 = 5.50 kg is connected by a light string that passes over a...
A mass m1 = 5.50 kg is connected by a light string
that passes over a pulley of mass M = 11.5 kg to a mass
m2 = 11.5 kg sliding on a horizontal surface (see
figure). The coefficient of kinetic friction between the mass
m2 and the surface is 0.17. There is no slippage between
the string and the pulley. What is the magnitude of the tension
that is acting on mass m1? (The moment of inertia of the...
A mass m1 = 5.00 kg is connected by a light string that passes over a...
A mass m1 = 5.00 kg
is connected by a light string that passes over a pulley of mass
m3 = 5.0 kg to a mass m2 = 6.00 kg sliding on
a frictionless inclined surface that makes an angle of 21° with the
horizontal (see figure). The coefficient of kinetic friction
between the mass m1 and the horizontal surface is 0.25.
There is no slippage between the string and the pulley. What is the
magnitude of the acceleration of...
A 9.70-kg hanging object is connected by a light, inextensible
cord over a light, frictionless pulley to a 5.00-kg block that is
sliding on a flat table. Taking the coefficient of kinetic friction
as 0.243, find the tension in the string.
N
Problem#7 Two boxes are connected by a weightless cord running over a very light frictionless pulley as shown in the figure. Box A, of mass 8.0 kg, is initially at rest on the top of the table. The coefficient of kinetie friction between box A and the table is 0.10. Box B has a mass of 15.0kg. and the system begins to move just after it is released. (a Draw the free-body diagrams for each of the boxes, identifyi each...
A mass m1 = 5.50 kg is connected by a light string
that passes over a pulley of mass M = 11.5 kg to a mass
m2 = 11.5 kg sliding on a horizontal surface (see
figure). The coefficient of kinetic friction between the mass
m2 and the surface is 0.17. There is no slippage between
the string and the pulley. What is the magnitude of the tension
that is acting on mass m1? (The moment of inertia of the...
A mass m1 = 5.00 kg
is connected by a light string that passes over a pulley of mass
m3 = 5.0 kg to a mass m2 = 6.00 kg sliding on
a frictionless inclined surface that makes an angle of 21° with the
horizontal (see figure). The coefficient of kinetic friction
between the mass m1 and the horizontal surface is 0.25.
There is no slippage between the string and the pulley. What is the
magnitude of the acceleration of...
