A 9.00 kg hanging weight is connected by a string over a pulley to a 5.00 kg block that is sliding on a flat table

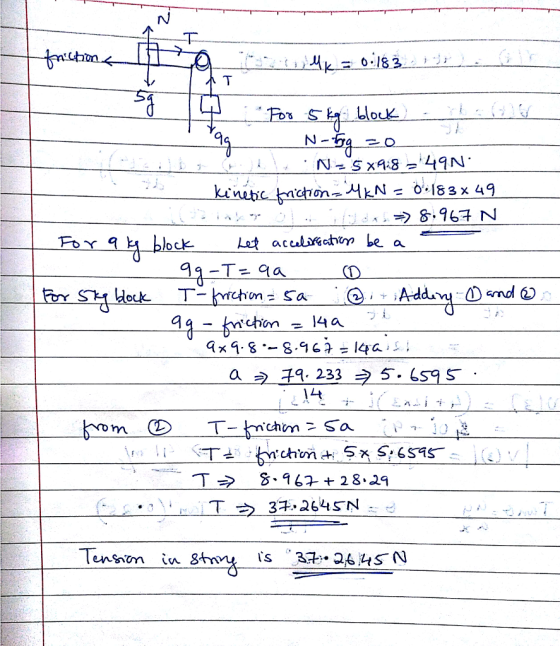

A 9.00 kg hanging weight is connected by a string over a pulley to a 5.00 kg block that is sliding on a flat table (Fig. P5.24). If the coefficient of kinetic friction is 0.183, find the tension in the string.
Homework Answers
Add Answer to:
A 9.00 kg hanging weight is connected by a string over a pulley to a 5.00 kg block that is sliding on a flat table
A 9.00-kg hanging weight is connected by a string over a pulley to a 5.00-kg block that is sliding on a flat table Fig
A 9.00-kg hanging weight is connected by a string over a pulley to a 5.00-kg block that is sliding on a flat table Fig. If the coefficient of kinetic friction is 0.200, find the tension in the string.(A)39. 2A (B)38. 57N (C)37.23N (D)34.55N (E)35. 66N
A 9.70-kg hanging object is connected by a light, inextensible cord over a light, frictionless pulley...
A 9.70-kg hanging object is connected by a light, inextensible
cord over a light, frictionless pulley to a 5.00-kg block that is
sliding on a flat table. Taking the coefficient of kinetic friction
as 0.243, find the tension in the string.
N
A 9.0-kg hanging weight is connected by a string over a pulley to a 5.0-kg block...
A 9.0-kg hanging weight is connected by a string over a pulley to a 5.0-kg block sliding on a flat table. If the table is frictionless, find the acceleration of the system
A 8.90-kg hanging object is connected by a light, inextensible cord over a light
A 8.90-kg hanging object is connected by a light, inextensible cord over a light, frictionless pulley to a 5.00-kg block that is sliding on a flat table. Taking the coefficient of kinetic friction as 0.150, find the tension in the string. (The block slides to the right in the diagram below.)
A 8.50-kg hanging object is connected by a light, inextensible cord over a light
A 8.50-kg hanging object is connected by a light, inextensible cord over a light, frictionless pulley to a 5.00-kg block that is sliding on a flat table. Taking the coefficient of kinetic friction as .234, find the tension in the string. (The block slides to the right in the diagram below.) _______ N
A 9.20-kghanging object is connected by a light, inextensible cord over alight, frictionless pulley...
A 9.20-kg hanging object is connected by a light, inextensible cord over a light, frictionless pulley to a 5.00-kg block that is sliding on a flat table. Taking the coefficient of kinetic friction as 0.158, find the tension in the string.
A 5.0 kg hanging weight is connected by a string over a pulley to a 9.0...
A 5.0 kg hanging weight is connected by a string over a pulley to a 9.0 kg block sliding on a flat table. If the table is frictionless, find the acceleration of the 5.0 kg mass. a. 3.5 m/s 2 . b. 2.2 m/s 2 . c. 5.4 m/s 2 . d. 12 m/s 2 . e. 6.3 m/s 2 .
a 9.00 kg hanging object is connected by a light, in extensible cord over a light,...
a 9.00 kg hanging object is connected by a light, in extensible cord over a light, frictionless pulley to a 5.00 kg block that is sliding on a flat table. If the block starts at rest, determine the values of the coefficient of static frection between the 5 kg mass and the table such that the system remains at rest.
A 1 kg block is initially at rest on a table connected to a hanging mass over a pulley
A 1 kg block is initially at rest on a table connected to a hanging mass over a pulley. The coefficient of static friction is 0.20, the coefficient of kinetic friction is 0.15. What is the tension in the line when a 150 g mass is hung from the line? What is the tension when a 300 g mass is hung?
A 5.00-kg object placed on a frictionless, horizontal table is connected to a string that passes...
A 5.00-kg object placed on a frictionless, horizontal table is connected to a string that passes over a pulley and then is fastened to a hanging 9.00-kg object, as in Figure P5.24. Draw free-body diagrams of both objects. Find the acceleration of the two objects and the tension in the string. 5.00 kg 9.00 kg
A 9.70-kg hanging object is connected by a light, inextensible
cord over a light, frictionless pulley to a 5.00-kg block that is
sliding on a flat table. Taking the coefficient of kinetic friction
as 0.243, find the tension in the string.
N
A 5.00-kg object placed on a frictionless, horizontal table is connected to a string that passes over a pulley and then is fastened to a hanging 9.00-kg object, as in Figure P5.24. Draw free-body diagrams of both objects. Find the acceleration of the two objects and the tension in the string. 5.00 kg 9.00 kg
