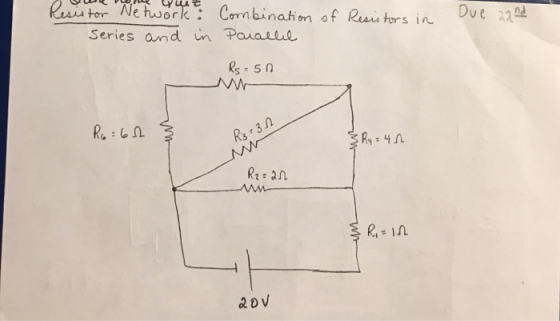

ше 94 р. Resistor Network : Series and in of Resistors in a Combination parallel ove...
Resistors 21. Which resistors are in parallel? R, R2 R3 TW R4 Rg Rs R A....
Resistors 21. Which resistors are in parallel? R, R2 R3 TW R4 Rg Rs R A. Ri and R2 B. Rs and R7 C. R2 and Rs D. R4 and Rs E. R3 and R F. none of the above 22. Using the figure for Problem 22, which resistors are in series? A. Ri and R2 B. R2 and R3 C. R4 and R6 D. Rs and R7 E. Rs and R7 none of the above

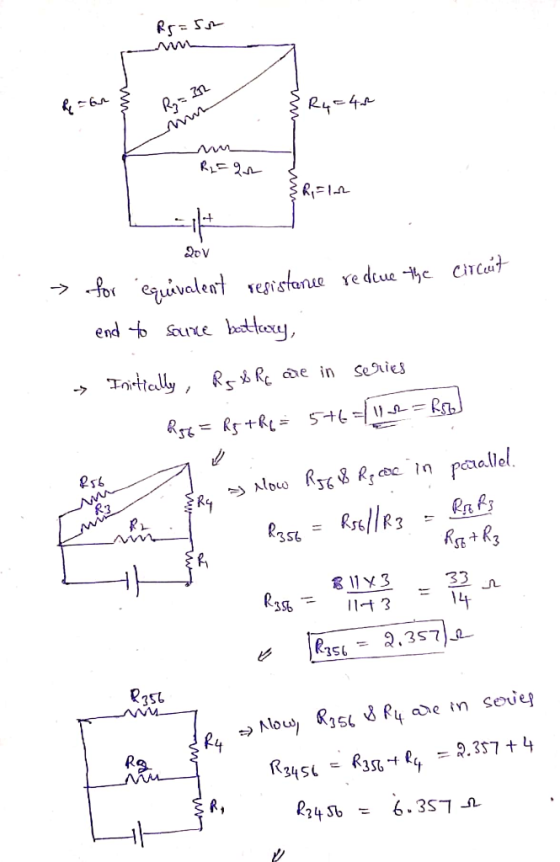

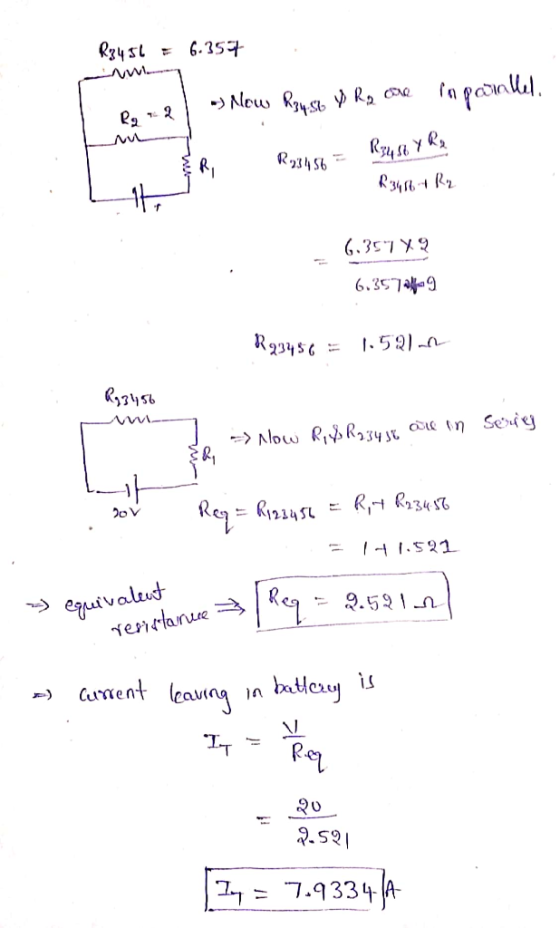

Find Equivalent Resistance of this circuit. Resistor Network: Combination of Resistors in series and in parallel...
Find Equivalent Resistance of this circuit.
Resistor Network: Combination of Resistors in series and in parallel Prediction: List all of the pairs of resistors that are in series parallel
Two identical resistors, R1 and R2, are connected in parallel, and this parallel combination is then...
Two identical resistors, R1 and R2, are
connected in parallel, and this parallel combination is then
connected in series with a 100 Ω resistor, R3 as shown
below
If the total resistance of the circuit is 300 Ω what must be the
resistance of R1 and R2? If the circuit is
connected to a 30V battery, what would the current through
R1? What voltage is a dropped across R3?
100 S
A circuit has three resistors. R2 and R3 are in parallel. This combination is then connected...
A circuit has three resistors. R2 and R3 are in parallel. This combination is then connected in series with resistor R1. It is known that R1=1 ohm, R2= 2 ohms, and R3= 3 ohms. Find the current through R2. The battery has 12 V. Ignore the internal resistance.
21.7- Resistors in Series and Parallel In the circuit below the voltage supplied by the battery...
21.7- Resistors in Series and Parallel In the circuit below the voltage supplied by the battery is 24.0 V and the resistance of the resistors, R1, R2 and R3 are 4.0 Ω, 10.0 Ω and 24.0 Ω respectively what is the current through the resistor R? R1 R2 Ri Submit Answer Tries 0/10 What is the current through the resistor R2? Submit Answer Tries o/1o What is the current through the resistor R3? Submit Answer Tries 0/10
9. A resistor R2=6.0 Q is mounted in parallel with a resistor R3=7.0 Q, and this...
9. A resistor R2=6.0 Q is mounted in parallel with a resistor R3=7.0 Q, and this combination is connected in series with a resistor R1=9.0 Q and a 10 Volts battery. What is the power dissipated in the R3 resistor? Watts R2 ww R3 10. Four resistors R1=9.0 Q, R2=3.0 Q,R3=11.0 2, and R4-4.0 2 are mounted as shown in the figure. The voltage of the battery is V = 18 Volts. What is the current in the R3 resistor?...
7-15. The resistors in the network in Fig. 7-15 are: R1 = 6.0 12 R4 =...
7-15. The resistors in the network in Fig. 7-15 are: R1 = 6.0 12 R4 = 7.5 12 R2 = 3.0 2 R5 = 5.0 12 R3 = 152 R6 = 4.0 12 If the current I is to be 14 A, what is the voltage of the battery that must be connected across a and b? What is the voltage across Ri and R2? What is the voltage across the three resistor section? Figure 7-15 Problem 7-15
21.8- Resistors in Series and Parallel In the circuit below the voltage supplied by the battery...
21.8- Resistors in Series and Parallel In the circuit below the voltage supplied by the battery is 12.0 V and the resistance of the resistors, R1, R2 and R3 are 6.00 Ω, 12.0 Ω and 18.0 Ω respectively, what is the power output of the resistor R1? R1 R2 R3 Submit Answer Tries 0/10 What is the power output of the resistor R2? Submit Answer Tries 0/10 What is the power output of the resistor R3? Submit Answer Tries 0/10
6. Equivalent Resistance of a Series - Parallel circuit: (can do at home) In the following...
6. Equivalent Resistance of a Series - Parallel circuit: (can do at home) In the following circuit, what series-parallel combination does the circuit represent? i.e which combination of resistors are in parallel with which combination in series? A B С W R3 R1 V1 w R2 R4 F E D If this circuit were to be described as the following equivalent circuit with a single equivalent resistance, what would be it in terms of R1, R2, R3 and R4)? Ro4
1. A capacitor of 30.0 ?F and a resistor of 80.0 Ω are quickly connected in...
1. A capacitor of 30.0 ?F and a resistor of 80.0 Ω are quickly connected in series to a battery of 5.00 V. What is the charge ? on the capacitor 0.00100 s after the connection is made? 2. Find the equivalent resistance of the combination of resistors R1=42.0 Ω , R2=75.0 Ω , R3=33.0 Ω , R4=61.0 Ω , R5=13.5 Ω , and R6=23.0 Ω , as shown in the figure.
Resistors 21. Which resistors are in parallel? R, R2 R3 TW R4 Rg Rs R A. Ri and R2 B. Rs and R7 C. R2 and Rs D. R4 and Rs E. R3 and R F. none of the above 22. Using the figure for Problem 22, which resistors are in series? A. Ri and R2 B. R2 and R3 C. R4 and R6 D. Rs and R7 E. Rs and R7 none of the above
Find Equivalent Resistance of this circuit.
Resistor Network: Combination of Resistors in series and in parallel Prediction: List all of the pairs of resistors that are in series parallel
Two identical resistors, R1 and R2, are
connected in parallel, and this parallel combination is then
connected in series with a 100 Ω resistor, R3 as shown
below
If the total resistance of the circuit is 300 Ω what must be the
resistance of R1 and R2? If the circuit is
connected to a 30V battery, what would the current through
R1? What voltage is a dropped across R3?
100 S
21.7- Resistors in Series and Parallel In the circuit below the voltage supplied by the battery is 24.0 V and the resistance of the resistors, R1, R2 and R3 are 4.0 Ω, 10.0 Ω and 24.0 Ω respectively what is the current through the resistor R? R1 R2 Ri Submit Answer Tries 0/10 What is the current through the resistor R2? Submit Answer Tries o/1o What is the current through the resistor R3? Submit Answer Tries 0/10
9. A resistor R2=6.0 Q is mounted in parallel with a resistor R3=7.0 Q, and this combination is connected in series with a resistor R1=9.0 Q and a 10 Volts battery. What is the power dissipated in the R3 resistor? Watts R2 ww R3 10. Four resistors R1=9.0 Q, R2=3.0 Q,R3=11.0 2, and R4-4.0 2 are mounted as shown in the figure. The voltage of the battery is V = 18 Volts. What is the current in the R3 resistor?...
7-15. The resistors in the network in Fig. 7-15 are: R1 = 6.0 12 R4 = 7.5 12 R2 = 3.0 2 R5 = 5.0 12 R3 = 152 R6 = 4.0 12 If the current I is to be 14 A, what is the voltage of the battery that must be connected across a and b? What is the voltage across Ri and R2? What is the voltage across the three resistor section? Figure 7-15 Problem 7-15
21.8- Resistors in Series and Parallel In the circuit below the voltage supplied by the battery is 12.0 V and the resistance of the resistors, R1, R2 and R3 are 6.00 Ω, 12.0 Ω and 18.0 Ω respectively, what is the power output of the resistor R1? R1 R2 R3 Submit Answer Tries 0/10 What is the power output of the resistor R2? Submit Answer Tries 0/10 What is the power output of the resistor R3? Submit Answer Tries 0/10
6. Equivalent Resistance of a Series - Parallel circuit: (can do at home) In the following circuit, what series-parallel combination does the circuit represent? i.e which combination of resistors are in parallel with which combination in series? A B С W R3 R1 V1 w R2 R4 F E D If this circuit were to be described as the following equivalent circuit with a single equivalent resistance, what would be it in terms of R1, R2, R3 and R4)? Ro4
