A circuit has three resistors. R2 and R3 are in parallel. This combination is then connected...

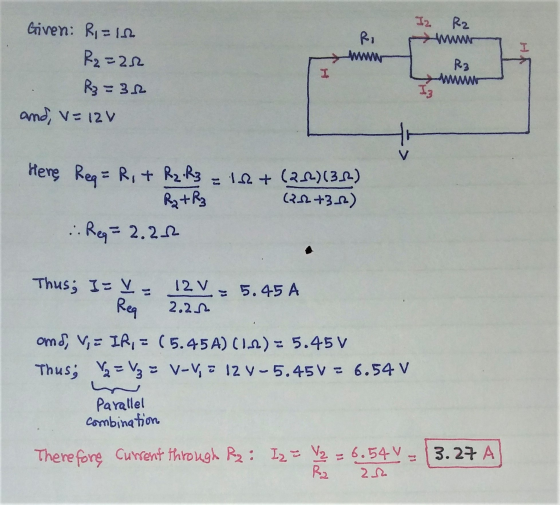

A circuit has three resistors. R2 and R3 are in parallel. This combination is then connected in series with resistor R1. It is known that R1=1 ohm, R2= 2 ohms, and R3= 3 ohms. Find the current through R2. The battery has 12 V. Ignore the internal resistance.
Homework Answers
Alright Dude, If that worked for you... don't forget to give THUMBS
UP.(that will work for me!)
Please Vote...
If I missed something feel free to leave a comment - At least
before giving down vote.
# MOST IMPORTANT - don't
forget to SANITIZE YOUR HANDS FREQUENTLY... STAY AT HOME + STAY
SAFE + STAY HEALTHY.
and maintain social distancing.
and_Thanks for using Chegg- Smarter way to study.
