Question

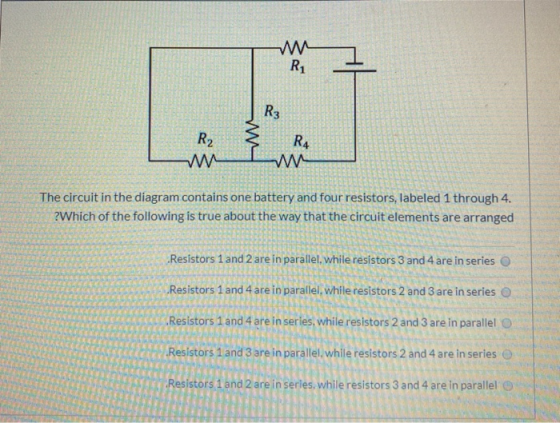

R1 R3 R2 R4 W The circuit in the diagram contains one battery and four resistors, labeled 1 through 4. ?Which of the followin

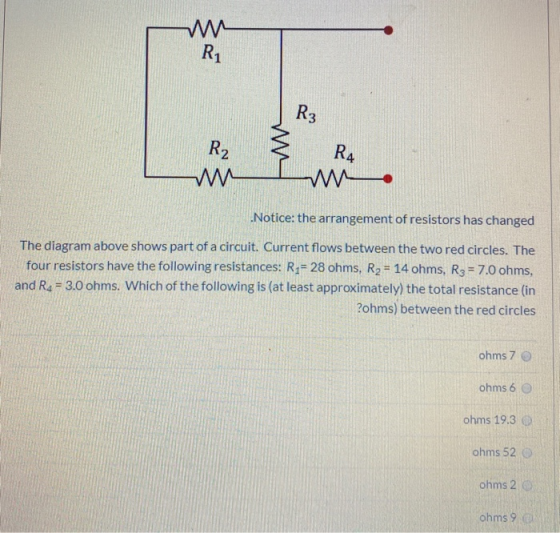

w R1 R₃ R₂ R4 w wo Notice: the arrangement of resistors has changed The diagram above shows part of a circuit. Current flows
R3 R2 R1 } The circuit above consists of an ideal 9.0 V battery and three ideal resistors. The resistances of the resistors a
0 0
Add a comment Improve this question Transcribed image text
Answer #1

1) Resistors 1 and 4 are in series, while resistors 2 and 3 are in parallel.

2) R1+R2 = 28 ohms + 14 ohms = 42 ohms

42 ohms is parallel to R3

42*7/(42+7) = 6 ohms

6 ohms + R4 = 6+3 = 9 ohms

3) Req = R2R3/(R2+R3) + R1 = 36*108/(36+108) + 18 = 45 ohms

I = 9/45 = 0.2 A

V1 = IR1 = 18*0.2 = 3.6 volts

Add a comment
Know the answer?
Add Answer to:
R1 R3 R2 R4 W The circuit in the diagram contains one battery and four resistors,...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Draw a circuit with a battery connected to four resistors, R1, R2, R3, and R4, as...

    Draw a circuit with a battery connected to four resistors, R1, R2, R3, and R4, as follows. Resistors R1 and R2 are connected in parallel with each other, resistors R3 and R4 are connected in parallel with each other, and both parallel sets of resistors are connected in series with each R FRR FR, attery. I wwww R4 R2

  • Consider a circuit with four resistors in series. R1 R2 R3 R4 The battery has a...

    Consider a circuit with four resistors in series. R1 R2 R3 R4 The battery has a voltage of 12 V. The resistor values are R1-800 Ω. R2-600 Ω R3-500 Q . R4-500Q Complete the following table by noting the voltage drop across each listed resistor. Resistor (Q) Voltage Drop (V) R1 00Select R3500Select ] 00 Select ] R2 R4

  • The circuit shown in the figure below contains three resistors (R4, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R4, R2, and R3) and three batteries (VA. Vs, and Vc). The resistor values are: R1=2 Ohms, R2=R3=4 Ohms, and the battery voltages are VA=25 V, Ve=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by Rj? VC HA R1 VA R2 R3 O 1.25 W O 2.0 W O 12.5 W 6.25 W O 8.13 W ATT INNI VASTU an

  • The circuit shown in the figure below contains three resistors (R4, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R4, R2, and R3) and three batteries (VA, VB, and V). The resistor values are: R2-2 Ohms, R2=R3=8 Ohms, and the battery voltages are VA-25V, Vp-15V, and Vc-20 V. When the circuit is connected, what will be the power dissipated by R3? VC +H R1 VA th ++ VB R2 [m R3 O 0.75 W 1.25 W O 2.67 4.2 W 5.5 W

  • Consider a circuit with three resistors (R1 = 40.5 ohms, R2 = 54.8 ohms, and R3...

    Consider a circuit with three resistors (R1 = 40.5 ohms, R2 = 54.8 ohms, and R3 = 30.8 ohms) connected to a 12.5 V battery as follows: R1 and R2 are connected in parallel. This combination is then connected in series to R3. Find the power dissipated in R1. Calculate the answer in watts (W) and rounded to three significant figures. please explain.

  • The circuit shown in the figure below contains three resistors (R4, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R4, R2, and R3) and three batteries (VA, VB, and V). The resistor values are: R1=2 Ohms, R=R3=8 Ohms, and the battery voltages are VA-25 V, Vg-15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R3? Vc HA Ri د R2 ma R3 0.75 W O 1.25 W 2.67W 4.2 W O 5.5 W

  • The circuit shown in the figure below contains three resistors (R4, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R4, R2, and R3) and three batteries (VA, Vg, and V). The resistor values are:R1-2 Ohms, R=R3=6 Ohms, and the battery voltages are Va=25V, Vg=15 V, and Vc-20 V. When the circuit is connected, what will be the power dissipated by R2? Vc R1 + Ve R2 R3 O 1.0W O 20W O 5.0W O 60W O 7.5 W

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and VC). The resistor values are: R1=2 Ohms, R2=R3=4 Ohms, and the battery voltages are VA=25 V, VB=15 V, and VC=20 V. When the circuit is connected, what will be the power dissipated by R3? options: 1.25 W 2.0 W 5.0 W 6.25 W 8.13 W Vc + R1 + + VA VB R2 R3

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=4 Ohms, and the battery voltages are VA=25 V, Vp=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R1? VC R1 + + VA VB R2 R3 1.25 W 2.0 W 12.5 W 6.25 W 8.13 W

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=4 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R32 VC +A R1 VA SA VB R2 R3 1.25 W 2.0 W 5.0 W 6.25 W 8.13 W
