Homework Answers
by the continuity equation we have
A1v1 = A2v2
pi/4*d1^2 *v1 = pi/4*d2^2*v2
d1^2 * v1 = (2.5d1)^2*v2
v1 = 6.25v2
so option(4) is the correct answer
Add Answer to:

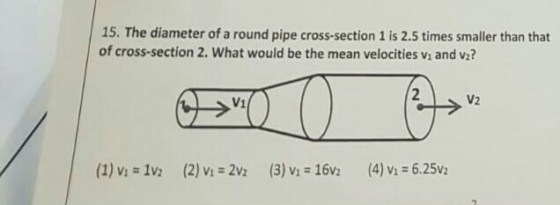

15. The diameter of a round pipe cross-section 1 is 2.5 times smaller than that of...
