Question

1a. Consider the diagram of the Electromagnetic spectrum 10 m 1 wavelength A (m) wavenumber (cm) 10 cm-1 10 eV electron volt_
science   chemistry
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

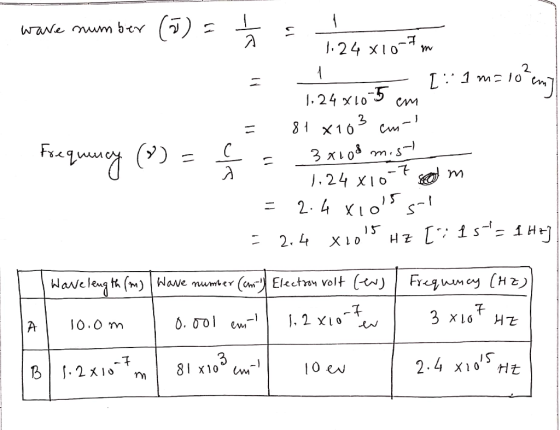

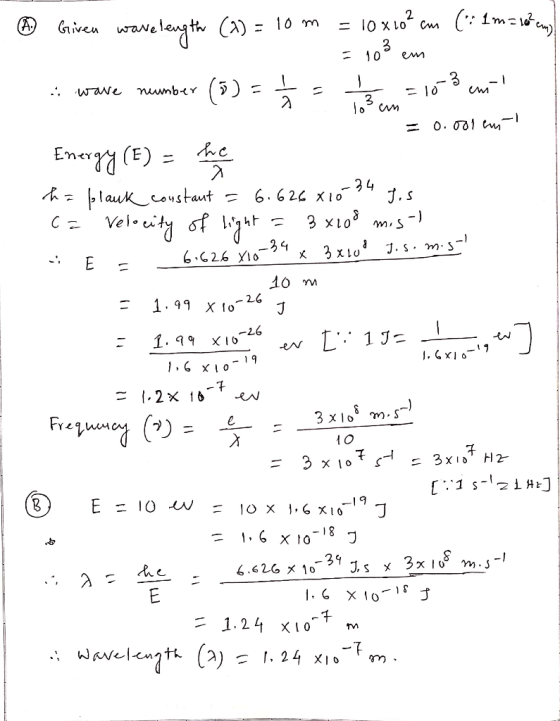

= 0.001 em-1 10 m @ Given wavelength (9) = 10 m = 10 x 10 cm (1: 1m = od cum = 103 em A ware number (3) = 1 / 4 = 133 m = 10%- wave number (5) - LEI 1.24 X10-7 m - 1:1 m2 10ʻen - 1.24 x 10-15 cm 81x103 cm Frequency (%) = = 3x108 mist R 1.24x10-7 solm

0 0
Add a comment
Know the answer?
Add Answer to:
1a. Consider the diagram of the Electromagnetic spectrum 10 m 1 wavelength A (m) wavenumber (cm)...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • An infrared wavelength of 4.48um is equivalent to a wavenumber of cm-1 Which region of the...

    An infrared wavelength of 4.48um is equivalent to a wavenumber of cm-1 Which region of the electromagnetic spectrum, IR or UV, contains photons of the higher energy? Which region of the electromagnetic spectrum, radio or visible, is characterized by waves of shorter wavelength? Which region of the electromagnetic spectrum, IR or X-ray, is characterized by waves of lower frequency? Which has a lower characteristic stretching frequency, the C-H or C-D bond? Which has a lower characteristic stretching frequency, the C...

  • Radiation in the radiofrequency region of the electromagnetic spectrum for use in NMR is often described...

    Radiation in the radiofrequency region of the electromagnetic spectrum for use in NMR is often described in terms of frequency, in units of MHz. One common example is 1H resonance frequency at 2.35T, which is 100.0MHz (1.000 x 108Hz). Calculate the values of its angular frequency (ω) in rad/s or s-1, wavenumber (ν̅ ) in cm-1, wavelength (λ) in m, and energy (E) in J.

  • A(n) ultraviolet photon has a wavelength of 8.10 ✕ 10−8 cm. Find the momentum, the frequency,...

    A(n) ultraviolet photon has a wavelength of 8.10 ✕ 10−8 cm. Find the momentum, the frequency, and the energy of the photon in electron volts. (a) the momentum kg · m/s (b) the frequency Hz (c) the energy of the photon in electron volts eV

  • options for the 1st one: decreases,increases,remains constant options for 2: color, frequency, electromagnetic spectrum options for...

    options for the 1st one: decreases,increases,remains constant options for 2: color, frequency, electromagnetic spectrum options for 3: the speed of sounds, light, or radiation ents Electromagnetic Spectrum Score: 10/20 5/10 answered Question 5 ook Remember entering vary large or very small numbers: • For very large numbers: example 3 x 10 enter it as 3E8 • For very small numbers: example 6.626 x 1034 enter it as 6.626E-34 As frequency of a wave increases, the wavelength Select an answer The...

  • 1. The relationship among the speed, wavelength, and frequency of electromagnetic radiation in vacuum is V=...

    1. The relationship among the speed, wavelength, and frequency of electromagnetic radiation in vacuum is V= c=V+2. 2=cv. 2. What is the frequency of a photon having a wavelength of 602.5 nm? (c = 3.00x10 m/s, h=6.63x10- Jis) a) 9.09 x 100 Hz b) 3.30 x 10-7 Hz c) 4.98 x 10Hz d) 3.30 x 10-Hz e) 4.98 x 10 Hz

  • calculate the wavelength in the unit of nm, frequency in the unit of HZ, and the...

    calculate the wavelength in the unit of nm, frequency in the unit of HZ, and the wavenumber in the unit of cm^-1 of an electromagnetic radiation with the energy f 1.326X 10^-20 J. E=hv V=vλ ν with a line =1/λ where E is the energy (j): h is plank constand, v is frequency, V is the velocity of light, v with a line is the wavenumber, λ is wavelength

  • Formulas: Wavenumber = 1/lambda(cm) Q1: A wave has a frequency of 24 GHz. What is the...

    Formulas: Wavenumber = 1/lambda(cm) Q1: A wave has a frequency of 24 GHz. What is the wavelength for this wave in meters? Q.2 A Infared wave has a wavelength of 1.17 microns. What is the frequency of this wave in Hz? Q.3 Consider the 1.17 micron IR wave mentioned in question 2. What is the wavenumber of this wave?

  • Light with a  wavelength of 5.50 x 10-7 m, which is in the green-yellow region of the...

    Light with a  wavelength of 5.50 x 10-7 m, which is in the green-yellow region of the visible electromagnetic spectrum has a -frequency of light = 5.45 x10^14 Hz AND    -wavelength in microns = 0.55 Where is this wavelength with respect to the center of the emission spectrum of the sun’s radiation?

  • The diagram shows the electromagnetic spectrum.

    1.The diagram shows the electromagnetic spectrum.  Identify the types of electromagnetic radiation (EMR) with the following characteristics. (a) highest frequency radio waves microwaves infrared visible ultraviolet X rays gamma rays (b) highest energy radio waves microwaves infrared visible ultraviolet X rays gamma rays (c) longest wavelength radio waves microwaves infrared visible ultraviolet X rays gamma rays2. Calculate the energy (in joules) of a photon with a wavelength of 2.93x10 nm.

  • A sinusoidal electromagnetic wave emitted by a cellular phone has a wavelength of 34.5 cm and...

    A sinusoidal electromagnetic wave emitted by a cellular phone has a wavelength of 34.5 cm and an electric-field amplitude of 6.20×10−2 V/m at a distance of 350 m from the antenna. a)Calculate the frequency of the wave. b)Calculate the magnetic-field amplitude. c)Find the intensity of the wave.
