As a parallel-plate capacitor with circular plates 27 cm in diameter is being charged, the current...

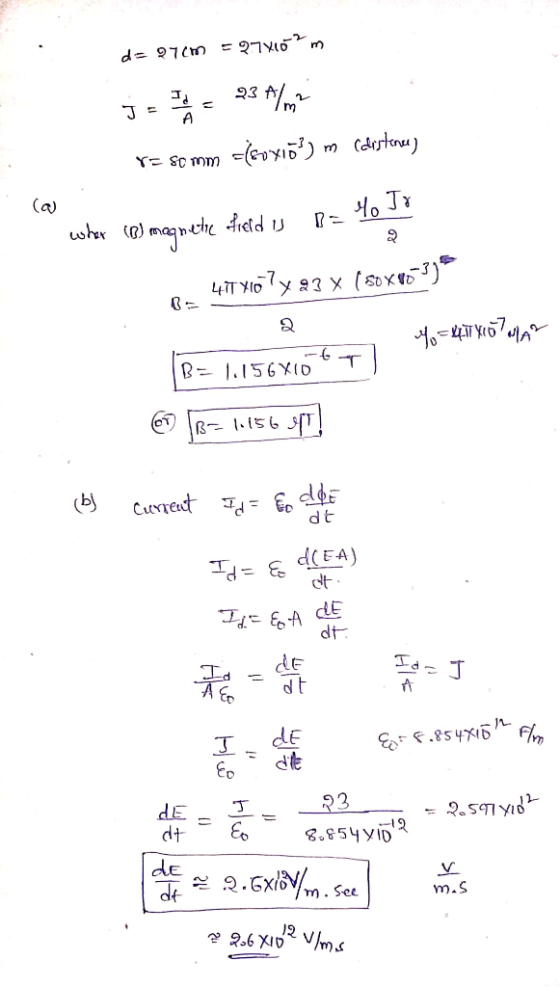

As a parallel-plate capacitor with circular plates 27 cm in diameter is being charged, the current density of the displacement current in the region between the plates is uniform and has a magnitude of 23 A/m2. (a) Calculate the magnitude B of the magnetic field at a distance r = 80 mm from the axis of symmetry of this region. (b) Calculate dE/dt in this region.
Homework Answers
Add Answer to:
As a parallel-plate capacitor with circular plates 27 cm in
diameter is being charged, the current...
As a parallel-plate capacitor with circular plates 22 cm in diameter is being charged, the current...
As a parallel-plate capacitor with circular plates 22 cm in diameter is being charged, the current density of the displacement current in the region between the plates is uniform and has a magnitude of 16 A/m2. (a) Calculate the magnitude B of the magnetic field at a distance r = 45 mm from the axis of symmetry of this region. (b) Calculate dE/dt in this region.
As a parallel-plate capacitor with circular plates 28 cm in diameter is being charged, the current...
As a parallel-plate capacitor with circular plates 28 cm in diameter is being charged, the current density of the displacement current in the region between the plates is uniform and has a magnitude of 20 A/m2. (a) Calculate the magnitude B of the magnetic field at a distancer = 77 mm from the axis of symmetry of this region. (b) Calculate dE/dt in this region. (a) Number Units (b) Number Units
A parallel plate capacitor with circular plates of radius R = 16.0 cm and plate separation...
A parallel plate capacitor with circular plates of radius R = 16.0 cm and plate separation d = 9.00 mm is being charged at the rate of 8.00 C/s. What is the displacement current through a circular loop of radius r = 21.00 cm centered on the axis of the capacitor? 8.00 You are correct. What is the displacement current through a circular loop of radius r = 3.00 cm centered on the axis of the capacitor? What is the...
Two circular plates with diameter 1.59 cm are used to form a parallel plate capacitor. The...
Two circular plates with diameter 1.59 cm are used to form a parallel plate capacitor. The distance between the plates is 2.25 mm and the space between them is filled with air. Determine the magnitude of the electric field in this space when the capacitor is connected to a battery with a certain voltage that results in a charge of 2.32 pC on each plate.
17. A parallel-plate, air-filled capacitor is being charged as in the Figure below The circular plates...
17. A parallel-plate, air-filled capacitor is being charged as in the Figure below The circular plates have radius 4.00 cm, and at a particular instant, the conduction current in the wires is o.720 A. Recall that the conduction current for the flat surface is equal to the displacement current for the curved bulging surface. Using Ampere's law, the magnitude of the magnetic field at point a distant by r 1 cm from the horizontal axis of two plates is: (5...
A parallel-plate, air-filled capacitor is being charged as in (Figure 1). The circular plates have radius...
A parallel-plate, air-filled capacitor is being charged as in (Figure 1). The circular plates have radius 3.00 cm, and at a particular instant, the conduction current in the wires is 0.570 A Part A What is the displacement current density in in the air space between the plates? Express your answer with the appropriate units. jo = 202 Submit Previous Answers Answer Requested Part B What is the rate at which the electric field between the plates is changing? Express...
A parallel-plate capacitor with circular plates of radius R is being charged. a) Derive an expression...
A parallel-plate capacitor with circular plates of radius R is being charged. a) Derive an expression for the magnetic field at radius r for the case r ≤ R. b) Derive an expression for the magnetic field at radius r for the case r ≥ R.
The circular plates of a parallel-plate capacitor are 6.00 cm in diameter and are spaced 5.00...
The circular plates of a parallel-plate capacitor are 6.00 cm in diameter and are spaced 5.00 mm apart. They are charged by transferring 1.00 x 10" electrons from one plate to the other. What is the electric potential difference between the plates? (A) (B) 2,540 V 2,970 V 3,200 V 3,880 V 4,350 V (D) (E)
A parallel plate capacitor with circular plates has a radius of 25cm and a plate spacing or 0.2mm...
A parallel plate capacitor with circular plates has a radius of 25cm and a plate spacing or 0.2mm. The plates are charged to 90.0V. a) What is the electric field between the plates? The plates are discharged in 0.25ms. b) What is the induced magnetic field 15cm from the axis? c What is the induced magnetic field 30cm from the axis?
A parallel plate capacitor with circular plates has a radius of 25cm and a plate spacing or 0.2mm. The...
5. A 10-cm diameter parallel plate capacitor has a 1.00 mm spacing (see the figure). A...
5. A 10-cm diameter parallel plate capacitor has a 1.00 mm spacing (see the figure). A continues current I is being used to charge this capacitor, and this current causes the electric field between the plates to change at a rate of 5.0 x 10 volt/m s. R=5 mm a. Find the magnetic field (magnitude and direction) at a point 2.0 mm radially from the center of the wire leading out of the capacitor (see the figure). (10 pts.) b....
As a parallel-plate capacitor with circular plates 28 cm in diameter is being charged, the current density of the displacement current in the region between the plates is uniform and has a magnitude of 20 A/m2. (a) Calculate the magnitude B of the magnetic field at a distancer = 77 mm from the axis of symmetry of this region. (b) Calculate dE/dt in this region. (a) Number Units (b) Number Units
17. A parallel-plate, air-filled capacitor is being charged as in the Figure below The circular plates have radius 4.00 cm, and at a particular instant, the conduction current in the wires is o.720 A. Recall that the conduction current for the flat surface is equal to the displacement current for the curved bulging surface. Using Ampere's law, the magnitude of the magnetic field at point a distant by r 1 cm from the horizontal axis of two plates is: (5...
A parallel-plate, air-filled capacitor is being charged as in (Figure 1). The circular plates have radius 3.00 cm, and at a particular instant, the conduction current in the wires is 0.570 A Part A What is the displacement current density in in the air space between the plates? Express your answer with the appropriate units. jo = 202 Submit Previous Answers Answer Requested Part B What is the rate at which the electric field between the plates is changing? Express...
The circular plates of a parallel-plate capacitor are 6.00 cm in diameter and are spaced 5.00 mm apart. They are charged by transferring 1.00 x 10" electrons from one plate to the other. What is the electric potential difference between the plates? (A) (B) 2,540 V 2,970 V 3,200 V 3,880 V 4,350 V (D) (E)
A parallel plate capacitor with circular plates has a radius of 25cm and a plate spacing or 0.2mm. The plates are charged to 90.0V. a) What is the electric field between the plates? The plates are discharged in 0.25ms. b) What is the induced magnetic field 15cm from the axis? c What is the induced magnetic field 30cm from the axis?
A parallel plate capacitor with circular plates has a radius of 25cm and a plate spacing or 0.2mm. The...
5. A 10-cm diameter parallel plate capacitor has a 1.00 mm spacing (see the figure). A continues current I is being used to charge this capacitor, and this current causes the electric field between the plates to change at a rate of 5.0 x 10 volt/m s. R=5 mm a. Find the magnetic field (magnitude and direction) at a point 2.0 mm radially from the center of the wire leading out of the capacitor (see the figure). (10 pts.) b....
