A parallel-plate capacitor with circular plates of radius R is being charged. a) Derive an expression...

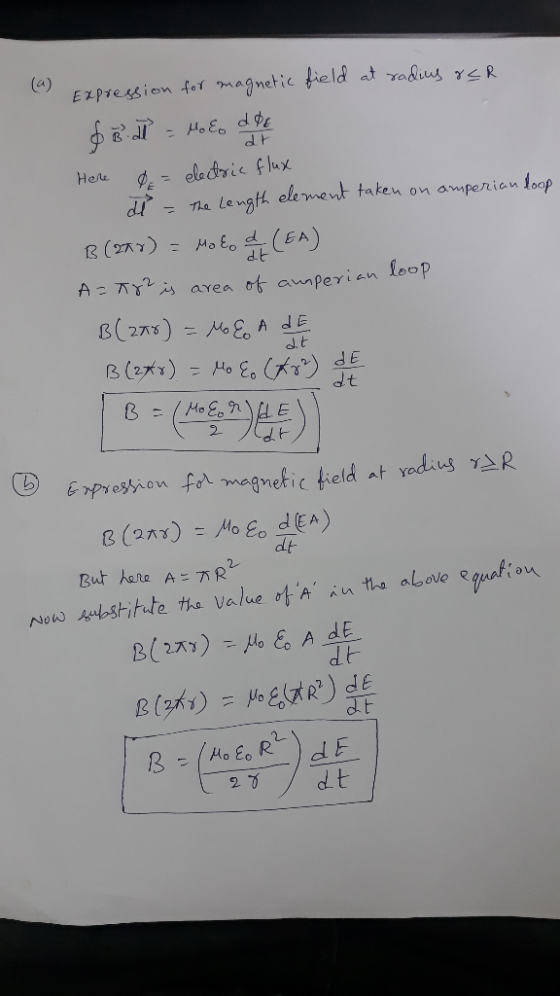

A parallel-plate capacitor with circular plates of radius R is being charged. a) Derive an expression for the magnetic field at radius r for the case r ≤ R. b) Derive an expression for the magnetic field at radius r for the case r ≥ R.
