The inclined pole is subjected to a 5 kN magnitude force vector F acting from point...

Question

Question

science physics

Answer 1

Answer #1

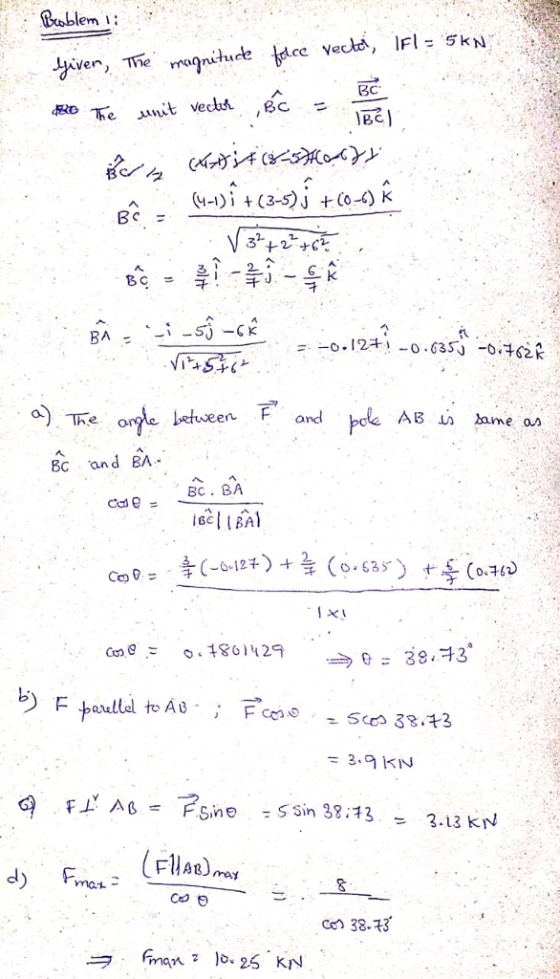

Boblem i: ve Tne BC Bc BA a The tween F and Bc and BA BC. BA g.13 3,9 KN ray VYねぇ- c38.3

Answer 2

Similar Homework Help Questions

A force acting on the pole at point A. a.) Determine the magnitude of the projected...

A force acting on the pole at point A. a.) Determine the magnitude of the projected component of the force along the cable AB. b.) Determine the magnitude of the projected component of the force along the cable AC. c.) Determine the angle between cables AB and AC. 2 m 6 m 6 m 5 m 15° V F=1000 N
he force vector F has a magnitude of F- 340 lb and acts at point A...

he force vector F has a magnitude of F- 340 lb and acts at point A at an angle 0 - 130 with respect to vertical as shown. The force F Determine the tension forces in the two rods in Cartesian components ed by the tension forces paralel to the two rods AC and AB such that the vector equation C F 0 is satisfed. + FAc + FAB satisfied СС BY NC SA 2013 Michael Swanbom Values for dimensions...
Part A Determine the magnitude of the component of force F = 98 lb acting parallel...

Part A Determine the magnitude of the component of force F = 98 lb acting parallel to diagonal AB of the crate (Figure 1) Express your answer to two significant figures and include the appropriate units. ? (FAB), 1160 lib Submit Previous Answers Request Answer X Incorrect; Try Again; 3 attempts remaining Part B Determine the magnitude of the component of force F = 98 lb acting perpendicular to diagonal AB of the crate Express your answer to two significant...

2.87 Problems55 the magnitsde and direction of the force F 2.81 A force acts at the...

2.87 Problems55 the magnitsde and direction of the force F 2.81 A force acts at the origin of a coordinate system in a direction l by the angles 869.3 and e 57.9. Knowing that the y compo- nent of the force is -174.0 lb, determine (a) the angle ,, (b) the o components and the magnitude of the foree. 2.82 A force acts at the origin of a coordinate system in a direction defined by the angles &-70.9 and &-144.9....
The pole is subjected to the force (F) which has components Fx = 1.2 kN and...

The pole is subjected to the force (F) which has components Fx = 1.2 kN and Fz = 1.05 kN. If β = 79 ∘ 1. Determine the magnitude of Fy. (Figure 1) Express your answer with the appropriate units. 2 Determine the magnitude of F. Express your answer with the appropriate units.
The force F has a magnitude of 8.0 kN. Express F as a vector in terms...

The force F has a magnitude of 8.0 kN. Express F as a vector in terms of the unit vectors i and j. Next, determine the x and y scalar components of F. Answers: F = (i + j) kN F_x = kN F_y = kN

1) (30 pts) A Force is given with F= BC kN in the figure below. According...

1) (30 pts) A Force is given with F= BC kN in the figure below. According to this configuration, please; a) write the force in Cartesian vector form, b) write unit vector of AB in Cartesian vector form, c) find magnitude of the projected component of the force Facting along the axis AB of pipe. d) determine the projected component of the force Facting along the axis AB of pipe in Cartesian vector form. B 4 m 6 m 3...
please help solve for what is asked in orobkems A-H and the free body diagrams as...

please help solve for what is asked in orobkems A-H and the free body diagrams as well. Will upvote if correct A B C D E F G H B 4 m 6 m 3 m 12 m 2 m F=80 N Determine the projected component of the force acting along the axis AB of the pipe. 60° A The 30kg pipe is supported at A by a system of five cords. Determine the force in each cord for equilibrium....
Problem1: The component of the force vector F acting along direction bbis required to be 30...

Problem1: The component of the force vector F acting along direction bbis required to be 30 lb. a) Determine magnitude of F and its component along line aa. b) Determine the projection of Falong aa and along bb directions, respectively 60

Determine the magnitude of the projected component of the F=6 kN force acting along the axis...

Determine the magnitude of the projected component of the F=6 kN force acting along the axis BC of the pipe. Suppose that a=2.6m and b=4.6m 5 m 1 m x.
