Homework Answers

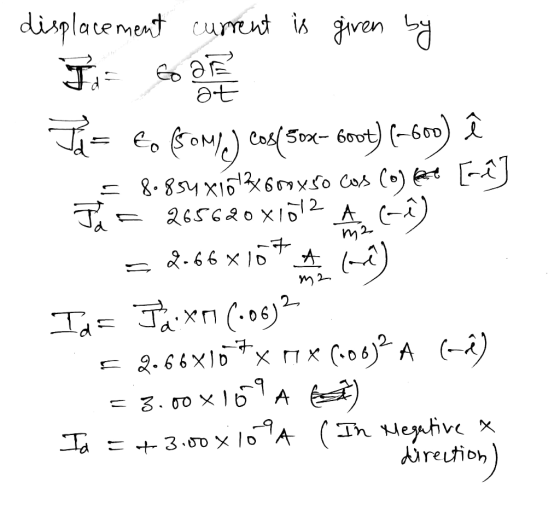

![displacement current is given by Tar to (SOM)) cos(50%- 600t) (-600) ê LE 8.854 x163x600x5o cos (o) ke [e] Ja= 265620x1012 A](http://img.homeworklib.com/questions/b38a5e10-71a5-11ea-b85f-a1210ea4cae4.png?x-oss-process=image/resize,w_560)
Add Answer to:
In a region of space, the electric field is pointed along the x-axis, but its magnitude...
In a region of space, the electric field is pointed along the x-axis, but its magnitude changes as described by Ex = (5...
In a region of space, the electric field is pointed along the x-axis, but its magnitude changes as described by Ex = (50 N/C) sin(50x - 600t) Ey = Ez = 0 where t is in nanoseconds and x is in centimeters. Find the displacement current in A) through a circle of radius 2 cm in the x = 0 plane at t = 0.
Will like for answer! 43. 0/1 points Previous Answers OSUniPhys1 33. P.089. In a region of...
Will like for answer!
43. 0/1 points Previous Answers OSUniPhys1 33. P.089. In a region of space, the electric field is pointed along the x-axis, but its magnitude changes as described by = (50 N/C)sin(50x Ey E 200t) = 0 where t is in nanoseconds and x is in centimeters. Find the displacement current (in A) through a circle of radius 8 cm in the x = 0 plane at t = 0. X A 3.56e-20 t Additional Materials EeBook...
Will like for answers! My Not 42 0/1 points Previous Answers OSUniPhys1 33.5.P.079. A computer user...
Will like for answers!
My Not 42 0/1 points Previous Answers OSUniPhys1 33.5.P.079. A computer user finds that his wireless router transmits data at a rate of 55 Mbps (megabits per second). Find the average time to transmit one bit of data, then compare that time with the time difference between the WI-FI signal's reaching the user's computer directly and the signal's bouncing back to the observer from a wall 7.95 m past the observer average time to transmit one...
In free space, the electric field ſ is the unit vector along y-axis. ce, the electric...
In free space, the electric field ſ is the unit vector along y-axis. ce, the electric field intensity E = 20 cos (wt-50x) Î V/m. Calculate, (0) (iii) Displacement current density Oa). Magnetic Field intensity (7) Angular frequency (w). Assume Mo = 414 x 10-7 and Ep = 8.854 x 10-12 F/m. (10 marks)
Over a certain region of space, the electric potential is V = 2x - 5x2y +...
Over a certain region of space, the electric potential is V = 2x - 5x2y + 2yz2. Find the expression for the x component of the electric field over this region. (Use the following as necessary: x, y, and z.) Ex = Find the expression for the y component of the electric field over this region. Ey = Find the expression for the z component of the electric field over this region. Ez = What is the magnitude of the...
Over a certain region of space, the electric potential is V = 8x − 7x2y +...
Over a certain region of space, the electric potential is V = 8x − 7x2y + 3yz2. (a) Find the expressions for the x, y, z components of the electric field over this region. (Use any variable or symbol stated above as necessary.) Ex = Ey = Ez = (b) What is the magnitude of the field at the point P that has coordinates (1.00, 0, -9.00) m?
In a region of space there is an electric field E~ that is in the z-direction...
In a region of space there is an electric field E~ that is in the z-direction and that has magnitude E=(868N/(C?m))x. Find the flux for this field through a square in the xy-plane at z = 0 and with side length 0.330 m. One side of the square is along the +x -axis and another side is along the +y-axis. [answer is 15.6 N.m2/C] please explain and show work thanks!
3.4 The electric field in a region of space is zero for x < 0 and...
3.4 The electric field in a region of space is zero for x < 0 and x 〉 9 m, and is Ezー-80 V/m for 0 〈 x 〈 3.0 m and is Ez +40 V/m for 3.0 〈 x 〈 9.0 m. (a) If the potential at zero for x 0 make a quantitative sketch of the electric potential for-1.0 〈 x 〈 10 m. (b) What distribution of charges produces the electric field? Hints: What type of charge...
A charged particle moves along the x-axis through a region with a uniform magnetic field that...
A charged particle moves along the x-axis through a region with a uniform magnetic field that is oriented to lie in the x-y plane. Part a) Assume that the particle has a net charge of +669 μC and is moving with a velocity of 464 m/s in the +x direction at a particular instant. In that region of space, there is a uniform magnetic field of 1.91T directed in the x-y plane at an angle of +29.8 ∘ relative to...
A region of space contains a uniform electric field, with a constant magnitude E and directed...
A region of space contains a uniform electric field, with a constant magnitude E and directed along the positive x-axis. Part A - Which figure below correctly describes the electric potential as a function of x? O ☺ O O b)
In a region of space, the electric field is pointed along the x-axis, but its magnitude changes as described by Ex = (50 N/C) sin(50x - 600t) Ey = Ez = 0 where t is in nanoseconds and x is in centimeters. Find the displacement current in A) through a circle of radius 2 cm in the x = 0 plane at t = 0.
Will like for answer!
43. 0/1 points Previous Answers OSUniPhys1 33. P.089. In a region of space, the electric field is pointed along the x-axis, but its magnitude changes as described by = (50 N/C)sin(50x Ey E 200t) = 0 where t is in nanoseconds and x is in centimeters. Find the displacement current (in A) through a circle of radius 8 cm in the x = 0 plane at t = 0. X A 3.56e-20 t Additional Materials EeBook...
Will like for answers!
My Not 42 0/1 points Previous Answers OSUniPhys1 33.5.P.079. A computer user finds that his wireless router transmits data at a rate of 55 Mbps (megabits per second). Find the average time to transmit one bit of data, then compare that time with the time difference between the WI-FI signal's reaching the user's computer directly and the signal's bouncing back to the observer from a wall 7.95 m past the observer average time to transmit one...
In free space, the electric field ſ is the unit vector along y-axis. ce, the electric field intensity E = 20 cos (wt-50x) Î V/m. Calculate, (0) (iii) Displacement current density Oa). Magnetic Field intensity (7) Angular frequency (w). Assume Mo = 414 x 10-7 and Ep = 8.854 x 10-12 F/m. (10 marks)
3.4 The electric field in a region of space is zero for x < 0 and x 〉 9 m, and is Ezー-80 V/m for 0 〈 x 〈 3.0 m and is Ez +40 V/m for 3.0 〈 x 〈 9.0 m. (a) If the potential at zero for x 0 make a quantitative sketch of the electric potential for-1.0 〈 x 〈 10 m. (b) What distribution of charges produces the electric field? Hints: What type of charge...
A region of space contains a uniform electric field, with a constant magnitude E and directed along the positive x-axis. Part A - Which figure below correctly describes the electric potential as a function of x? O ☺ O O b)
