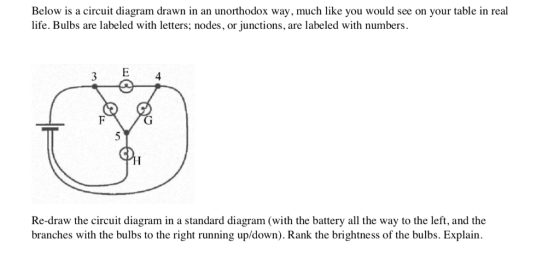

Below is a circuit diagram drawn in an unorthodox way, much like you would see on your table in real life. Bulbs are labeled with letters; nodes, or junctions, are labeled with numbers 下 Re-draw the circuit diagram in a standard diagram (with the battery all the way to the left, and the branches with the bulbs to the right running up/down). Rank the brightness of the bulbs. Explain

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

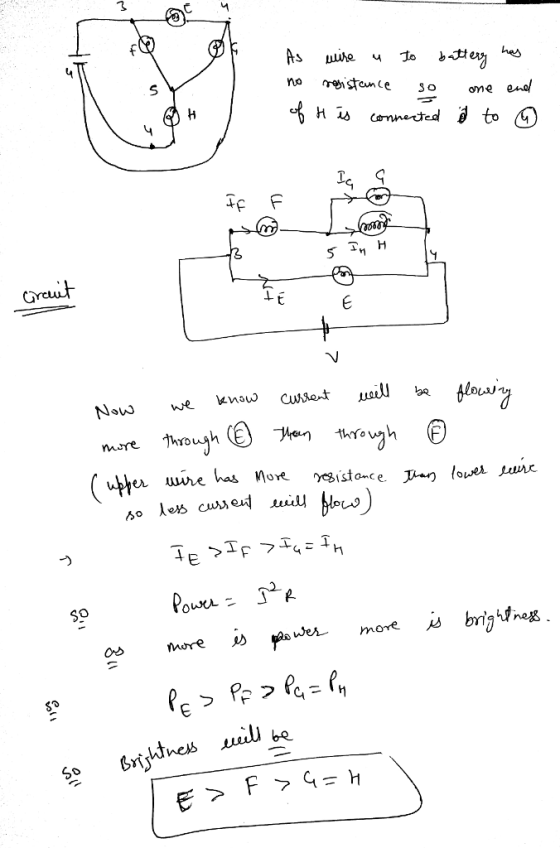

non钞stance so one 4 thro 50 wer, more more
