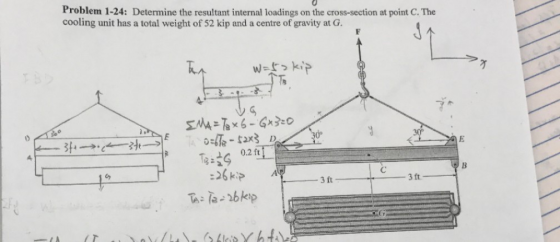

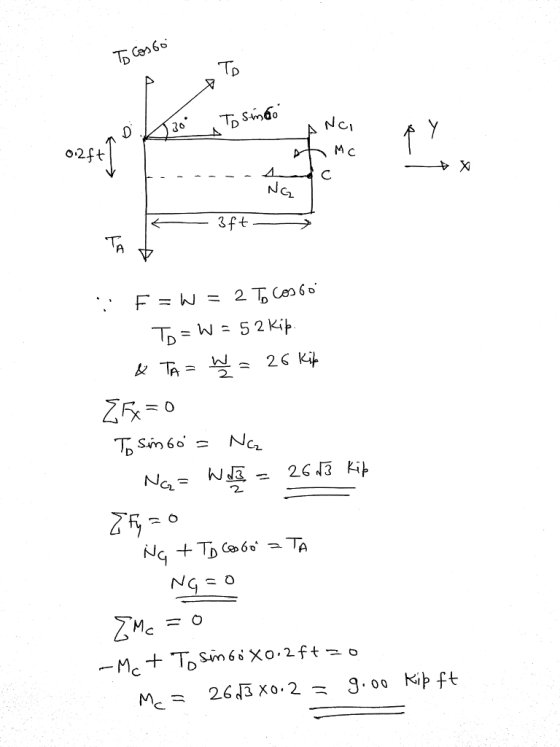

Problem 1-24: Determine the resultant internal loadings on the cross-section at point C. The cooling unit...
Determine the resultant internal loadings acting on the cross section through point C. Assume the reactions at the supports A and B are vertical.
Determine the resultant internal loadings acting onthe cross section through point C. Assume the reactions atthe supports A and B are vertical.
(1) Determine the resultant internal loadings on the cross sections through point D and E. Points...
(1) Determine the resultant internal loadings on the cross sections through point D and E. Points E is ust to the right of the 15 kN load. 25 kN 5 kN/m 1.5 m-ー← 1.5 m (3) The pipe has a mass of 12 kg/m. If it is fixed to the wall at A, determine the resultant intermal loadings acting on the cross section at B. 300 N 500 N 2 m 400 N
(1) Determine the resultant internal loadings on the cross sections through point D and E. Points...
(1) Determine the resultant internal loadings on the cross sections through point D and E. Points E is just to the right of the 20 kN load. 20 KN 15 kN/m TITUT E - 2m - 2m--- 1.5 m -.--1.5m - (2) The pipe has a mass of 10 kg/m. If it is fixed to the wall at A, determine the resultant internal loadings acting on the cross section at B. SOON Im 2 m BON
Determine the resultant internal loadings in the beam at cross sections through points D and E. Point E is just to the right of the 3-kip load.
Determine the resultant internal loadings in thebeam at cross sections through points D and E. Point E isjust to the right of the 3-kip load.
Determine: -the resultant internal normal force acting on the cross section through point B of the...
Determine:
-the resultant internal normal force acting on the cross
section through point B of the signpost. The post is fixed to the
ground and a uniform pressure of 7 lb/ft^2 acts perpendicular to
the face of the sign.
-the resultant internal shear force acting on the cross
section through point B of the sign post.
-the resultant internal bending moment acting on the cross
section through point B of the signpost
-the resultant internal torsional moment acting on the...
The shaft is supported by a smooth thrust bearing at B and a journal bearing at C. Determine the resultant internal loadings acting on the cross section at E.
The shaft is supported by a smooth thrust bearing at Band a journal bearing at C. Determine the resultant internalloadings acting on the cross section at E.
Problem 4 (20 pts) oss section through point D of Determine the resultant internal loadings acting...
Problem 4 (20 pts) oss section through point D of Determine the resultant internal loadings acting on the cr member AB. 50 mm 50mm 300 mm 150 nm A D 70 N m 200 mm FBD
Question 3. Determine the resultant internal loadings acting on section b-b through the centroid C on...
Question 3. Determine the resultant internal loadings acting on section b-b through the centroid C on the beam ie, find: d) Draw a free body diagram e) Vb-b(shear force @b-b) f) Nb-b (Normal force @ b-b) g) Mb-b (Moment@ b-b) 900 lb/ft 600 C 130 6 ft Fig. 3 2
The hand crank that is used in a press has the dimensions shown. Determine the resultant internal loadings acting on the cross section at point AA if a vertical force of 5050 lb is applied to the handle as shown. Assume the crank is fixed to the shaft at
The hand crank that is used in a press has the dimensions shown. Determine the resultant internal loadings acting on the cross section at point A if a vertical force of 50 lb is applied to the handle as shown. Assume the crank is fixed to the shaft at B
< HW #1 Section 1.2 Problem 1.15 〈: 4015 〉 The beam supports the triangular distributed...
< HW #1 Section 1.2 Problem 1.15 〈: 4015 〉 The beam supports the triangular distributed load shown below with wax605 lb/ft. The reactions at A and B are vertical. 6 ft 6 ft 6 ft 4.5 ft 4.5 ft Part A Determine the resultant internal loadings on the cross section at point C. Express your answers, separated by commas, to three significant figures kip, kip, kip ft Submit Provide Feedback Next >
(1) Determine the resultant internal loadings on the cross sections through point D and E. Points E is ust to the right of the 15 kN load. 25 kN 5 kN/m 1.5 m-ー← 1.5 m (3) The pipe has a mass of 12 kg/m. If it is fixed to the wall at A, determine the resultant intermal loadings acting on the cross section at B. 300 N 500 N 2 m 400 N
(1) Determine the resultant internal loadings on the cross sections through point D and E. Points E is just to the right of the 20 kN load. 20 KN 15 kN/m TITUT E - 2m - 2m--- 1.5 m -.--1.5m - (2) The pipe has a mass of 10 kg/m. If it is fixed to the wall at A, determine the resultant internal loadings acting on the cross section at B. SOON Im 2 m BON
Determine:
-the resultant internal normal force acting on the cross
section through point B of the signpost. The post is fixed to the
ground and a uniform pressure of 7 lb/ft^2 acts perpendicular to
the face of the sign.
-the resultant internal shear force acting on the cross
section through point B of the sign post.
-the resultant internal bending moment acting on the cross
section through point B of the signpost
-the resultant internal torsional moment acting on the...
Problem 4 (20 pts) oss section through point D of Determine the resultant internal loadings acting on the cr member AB. 50 mm 50mm 300 mm 150 nm A D 70 N m 200 mm FBD
Question 3. Determine the resultant internal loadings acting on section b-b through the centroid C on the beam ie, find: d) Draw a free body diagram e) Vb-b(shear force @b-b) f) Nb-b (Normal force @ b-b) g) Mb-b (Moment@ b-b) 900 lb/ft 600 C 130 6 ft Fig. 3 2
< HW #1 Section 1.2 Problem 1.15 〈: 4015 〉 The beam supports the triangular distributed load shown below with wax605 lb/ft. The reactions at A and B are vertical. 6 ft 6 ft 6 ft 4.5 ft 4.5 ft Part A Determine the resultant internal loadings on the cross section at point C. Express your answers, separated by commas, to three significant figures kip, kip, kip ft Submit Provide Feedback Next >
