A laser emitting at 350 nm passes through a cuvette containing water. Due to the Raman...

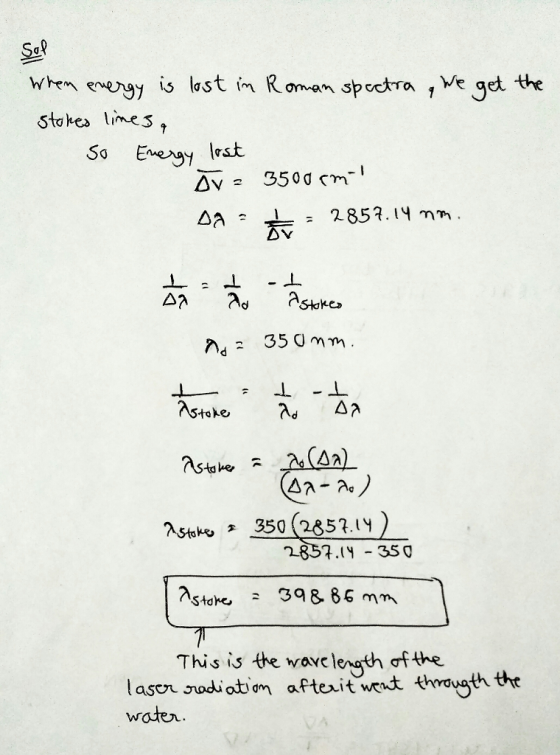

A laser emitting at 350 nm passes through a cuvette containing water. Due to the Raman effect, as the laser passes through water, it loses energy to excite vibrational modes of water molecules. Consider only the vibrational level in water corresponding to the stretching of the OH bond which occurs at about 3500 cm−1. What is the wavelength of the laser radiation after it went through the water if the energy is lost due to the excitation of one vibrational quantum? You must express the final results in terms of the wavelength of the laser radiation in nm
Homework Answers
Add Answer to:
A laser emitting at 350 nm passes through a cuvette containing
water. Due to the Raman...
A red laser at 638 nm is used to collect Raman spectrum of water. The stretching...
A red laser at 638 nm is used to collect Raman spectrum of water. The stretching wavenumber for the OH stretch in water is ~3400 cm-1, what is the wavelength of the scattered light from the Stokes line and anti-Stokes line, respectively?
A scientist uses the 488.0 nm output from an Ar+ laser to study the vibrational energy...
A scientist uses the 488.0 nm output from an Ar+ laser to study the vibrational energy levels of pyrimidine. A large peak due to the ring breathing vibration of the molecule is observed in the Stokes Raman spectrum at 990 cm−1. What is the wavelength in nm of the photons corresponding to this peak that the scientist is detecting? Enter the wavelength of the scattered photons.
A scientist uses the 454.6 nm output from an Ar+ laser to study the vibrational energy...
A scientist uses the 454.6 nm output from an Ar+ laser to study the vibrational energy levels of pyrimidine. A large peak due to the ring breathing vibration of the molecule is observed in the Stokes Raman spectrum at 990 cm−1. What is the wavelength in nm of the photons corresponding to this peak that the scientist is detecting?
Laser of wavelength 670 nm passes through a single slit of width 0.08 mm. A diffraction...
Laser of wavelength 670 nm passes through a single slit of width 0.08 mm. A diffraction pattern is formed on a screen 90-cm from the slit. The whole setup is then submerged in water (n=4/3). What is the width of the cbf in water? 14.47 mm 11.31 mm 12.34 mm 15.08 mm
Laser of wavelength 670 nm passes through a single slit of width 0.08 mm. A diffraction...
Laser of wavelength 670 nm passes through a single slit of width 0.08 mm. A diffraction pattern is formed on a screen 90-cm from the slit. The whole setup is then submerged in water (n=4/3). What is the width of the cbf in water? a. 11.31 mm b. 14.47 mm c. 12.34 mm d. 15.08 mm
A thin beam of laser light of wavelength 514 nm passes through a diffraction grating having...
A thin beam of laser light of wavelength 514 nm passes through a diffraction grating having 3952 lines/cm. The resulting pattern is viewed on a distant curved screen that can show all bright fringes up to and including ?90.0? from the central spot. If the experiment were performed with all of the apparatus under water (which has an index of refraction of 1.33), what would be the TOTAL number of bright spots that would show up on the screen?
