A red laser at 638 nm is used to collect Raman spectrum of water. The stretching...

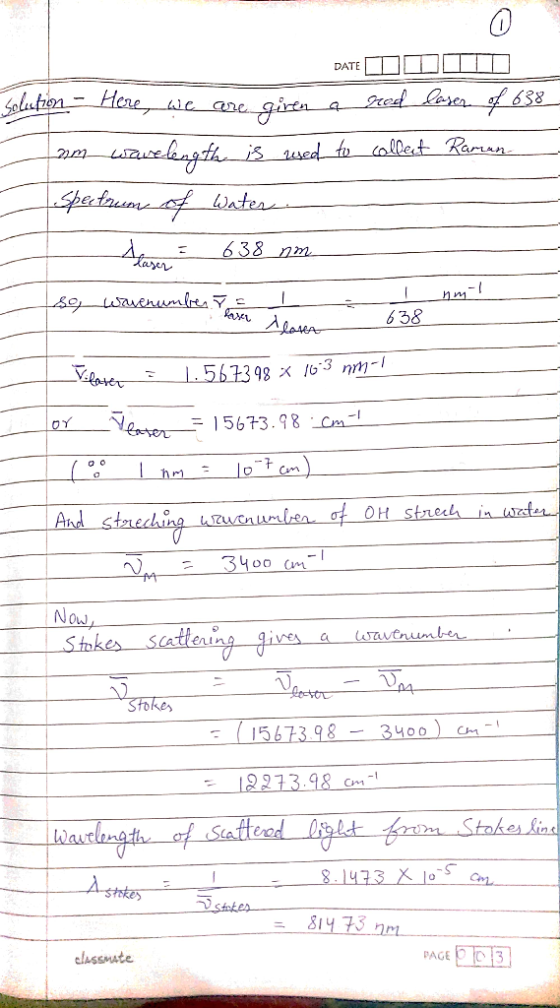

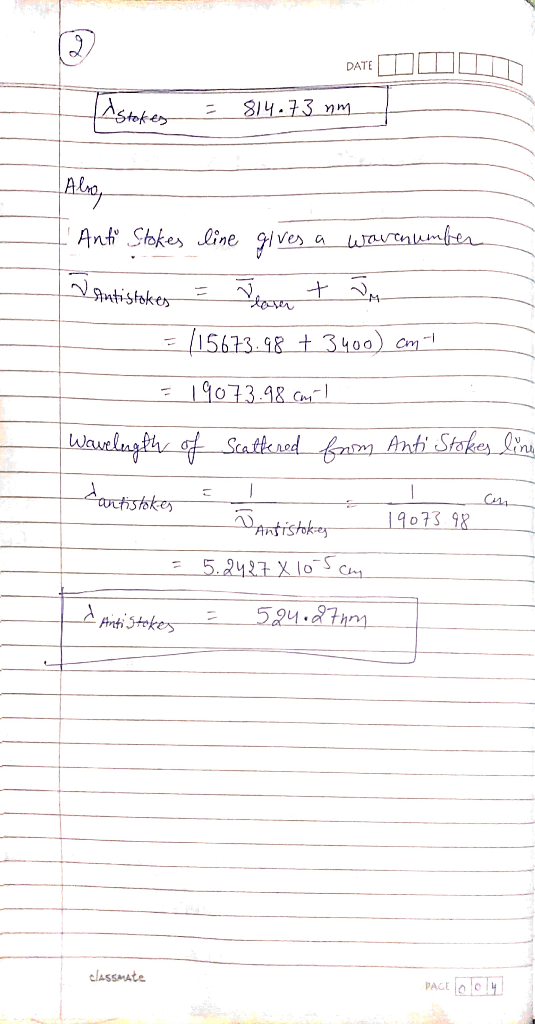

- A red laser at 638 nm is used to collect Raman spectrum of water. The stretching wavenumber for the OH stretch in water is ~3400 cm-1, what is the wavelength of the scattered light from the Stokes line and anti-Stokes line, respectively?
Homework Answers
Add Answer to:
A red laser at 638 nm is used to collect Raman spectrum of
water. The stretching...
In a Raman experiment laser of 633 nm is being used (wave number = 15,797 cm-1)...
In a Raman experiment laser of 633 nm is being used (wave number = 15,797 cm-1) on a sample. Consider a particular stokes transition that leads to a scattered light at wavenumber 13567 cm-1. (a) What will be the wavenumber of the anti-stokes lines for the similar transition? (b) What is the energy of this transition? (c) If laser light of 530 nm is used what will be the wavenumber of the scattered light due to the same stokes transition?
When a 480 nm laser is used as a light source for a Raman spectrometer, it...
When a 480 nm laser is used as a light source for a Raman spectrometer, it was observed that one of the anti-Stokes lines has a wavelength of 478 nm. When a 708.6 nm laser is used as the light source, what will the wavelength of the corresponding anti-Stokes line be (in nm)?
4. (10p) A Raman spectrum of an aldehyde was obtained using a He-Ne laser as the...
4. (10p) A Raman spectrum of an aldehyde was obtained using a He-Ne laser as the excitation source (laser wavelength is 623.8 nm). Calculate the wavelength of the Stokes Raman peak corresponding to the C-0 stretching vibration (1700 cm'). www
ss known as Raman shiftipg, Raman scattering may be used to extend the spectrum able from...
ss known as Raman shiftipg, Raman scattering may be used to extend the spectrum able from a laser source. Focusing a laser in a gas ell illed with high pressure 45 In a process ht availabl of lig 2(g) vibrational frequency of H2(v = 4155 cm-). For a Nd:YAG laser operating at 532 nm/calculate the wavelengths of the first three Stokes and anti-Stokes lines. For those that lie in the visible gop region of the electromagnetic spectrum, what color are...
The wavenumber of a Raman Stokes line obtained by the vibrational excitation of water with light...
The wavenumber of a Raman Stokes line obtained by the vibrational excitation of water with light from a HeNe laser is 14207 cm-1. What is the wavenumber of the vibrational mode associated with this Stokes line?
A laser emitting at 350 nm passes through a cuvette containing water. Due to the Raman...
A laser emitting at 350 nm passes through a cuvette containing water. Due to the Raman effect, as the laser passes through water, it loses energy to excite vibrational modes of water molecules. Consider only the vibrational level in water corresponding to the stretching of the OH bond which occurs at about 3500 cm−1. What is the wavelength of the laser radiation after it went through the water if the energy is lost due to the excitation of one vibrational...
Please help me to calculate the antistokes shift that has a wavenumber difference of 3340 cm^-1 and an incident radiation of 400 nm. Please show details and the final answer show be nanometers(nm)....
Please help me to calculate the antistokes shift that has a
wavenumber difference of 3340 cm^-1 and an incident radiation of
400 nm. Please show details and the final answer show be
nanometers(nm).
Anti-Stokes Raman Scattering 9. Calculate for incident radiation of 400 nm the wavelength at which you would predict the Anti-Stokes Raman scattering peak of water to occur in an emission spectrum. For this calculation use the average wavenumber difference you determined in question 3340 am
Anti-Stokes Raman...
A scientist uses the 488.0 nm output from an Ar+ laser to study the vibrational energy...
A scientist uses the 488.0 nm output from an Ar+ laser to study the vibrational energy levels of pyrimidine. A large peak due to the ring breathing vibration of the molecule is observed in the Stokes Raman spectrum at 990 cm−1. What is the wavelength in nm of the photons corresponding to this peak that the scientist is detecting? Enter the wavelength of the scattered photons.
(b) The rotational Raman spectrum of 1 N2 (m(N) - 14.0031u) shows a series of Stokes lines separated by 1.4567 cm, w...
(b) The rotational Raman spectrum of 1 N2 (m(N) - 14.0031u) shows a series of Stokes lines separated by 1.4567 cm, when it is exposed to monochromatic laser radiation with wavelength of 156 nm. (i) Derive the energy separation expression of the J 3 the pure rotational Raman spectrum of 1N2 1 transition in (i) Calculate the frequency of the above transition in the pure rotational Raman spectrum of 1"N2. 4
(b) The rotational Raman spectrum of 1 N2 (m(N)...
A scientist uses the 454.6 nm output from an Ar+ laser to study the vibrational energy...
A scientist uses the 454.6 nm output from an Ar+ laser to study the vibrational energy levels of pyrimidine. A large peak due to the ring breathing vibration of the molecule is observed in the Stokes Raman spectrum at 990 cm−1. What is the wavelength in nm of the photons corresponding to this peak that the scientist is detecting?
4. (10p) A Raman spectrum of an aldehyde was obtained using a He-Ne laser as the excitation source (laser wavelength is 623.8 nm). Calculate the wavelength of the Stokes Raman peak corresponding to the C-0 stretching vibration (1700 cm'). www
ss known as Raman shiftipg, Raman scattering may be used to extend the spectrum able from a laser source. Focusing a laser in a gas ell illed with high pressure 45 In a process ht availabl of lig 2(g) vibrational frequency of H2(v = 4155 cm-). For a Nd:YAG laser operating at 532 nm/calculate the wavelengths of the first three Stokes and anti-Stokes lines. For those that lie in the visible gop region of the electromagnetic spectrum, what color are...
Please help me to calculate the antistokes shift that has a
wavenumber difference of 3340 cm^-1 and an incident radiation of
400 nm. Please show details and the final answer show be
nanometers(nm).
Anti-Stokes Raman Scattering 9. Calculate for incident radiation of 400 nm the wavelength at which you would predict the Anti-Stokes Raman scattering peak of water to occur in an emission spectrum. For this calculation use the average wavenumber difference you determined in question 3340 am
Anti-Stokes Raman...
(b) The rotational Raman spectrum of 1 N2 (m(N) - 14.0031u) shows a series of Stokes lines separated by 1.4567 cm, when it is exposed to monochromatic laser radiation with wavelength of 156 nm. (i) Derive the energy separation expression of the J 3 the pure rotational Raman spectrum of 1N2 1 transition in (i) Calculate the frequency of the above transition in the pure rotational Raman spectrum of 1"N2. 4
(b) The rotational Raman spectrum of 1 N2 (m(N)...
