Question

The wavenumber of a Raman Stokes line obtained by the vibrational excitation of water with light...

The wavenumber of a Raman Stokes line obtained by the vibrational excitation of water with light from a HeNe laser is 14207 cm-1. What is the wavenumber of the vibrational mode associated with this Stokes line?

science   chemistry
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

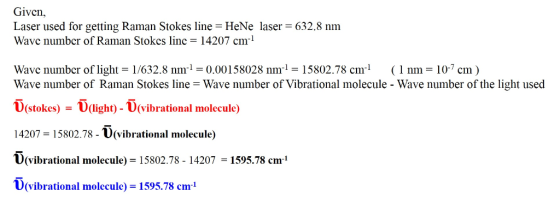

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
The wavenumber of a Raman Stokes line obtained by the vibrational excitation of water with light...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A red laser at 638 nm is used to collect Raman spectrum of water. The stretching...

    A red laser at 638 nm is used to collect Raman spectrum of water. The stretching wavenumber for the OH stretch in water is ~3400 cm-1, what is the wavelength of the scattered light from the Stokes line and anti-Stokes line, respectively?

  • 4. (10p) A Raman spectrum of an aldehyde was obtained using a He-Ne laser as the...

    4. (10p) A Raman spectrum of an aldehyde was obtained using a He-Ne laser as the excitation source (laser wavelength is 623.8 nm). Calculate the wavelength of the Stokes Raman peak corresponding to the C-0 stretching vibration (1700 cm'). www

  • In a Raman experiment laser of 633 nm is being used (wave number = 15,797 cm-1)...

    In a Raman experiment laser of 633 nm is being used (wave number = 15,797 cm-1) on a sample. Consider a particular stokes transition that leads to a scattered light at wavenumber 13567 cm-1. (a) What will be the wavenumber of the anti-stokes lines for the similar transition? (b) What is the energy of this transition? (c) If laser light of 530 nm is used what will be the wavenumber of the scattered light due to the same stokes transition?

  • ss known as Raman shiftipg, Raman scattering may be used to extend the spectrum able from...

    ss known as Raman shiftipg, Raman scattering may be used to extend the spectrum able from a laser source. Focusing a laser in a gas ell illed with high pressure 45 In a process ht availabl of lig 2(g) vibrational frequency of H2(v = 4155 cm-). For a Nd:YAG laser operating at 532 nm/calculate the wavelengths of the first three Stokes and anti-Stokes lines. For those that lie in the visible gop region of the electromagnetic spectrum, what color are...

  • A laser emitting at 350 nm passes through a cuvette containing water. Due to the Raman...

    A laser emitting at 350 nm passes through a cuvette containing water. Due to the Raman effect, as the laser passes through water, it loses energy to excite vibrational modes of water molecules. Consider only the vibrational level in water corresponding to the stretching of the OH bond which occurs at about 3500 cm−1. What is the wavelength of the laser radiation after it went through the water if the energy is lost due to the excitation of one vibrational...

  • The wavenumber of the incident radiation in a Raman spectrometer is 20 623 cm−1. What is...

    The wavenumber of the incident radiation in a Raman spectrometer is 20 623 cm−1. What is the wavenumber of the scattered Stokes radiation for the J = 4 ← 2 transition of16O2?

  • In a Raman experiment the wavenumber of the incident radiation is 17269 cm-1. What is the...

    In a Raman experiment the wavenumber of the incident radiation is 17269 cm-1. What is the wavenumber of the scattered Stokes radiation for the J = 4 ← 2 transition of 16O2? Ans = ____ cm-1 (Look up the value of the rotation constant B for O2 in a table.)

  • When a 480 nm laser is used as a light source for a Raman spectrometer, it...

    When a 480 nm laser is used as a light source for a Raman spectrometer, it was observed that one of the anti-Stokes lines has a wavelength of 478 nm. When a 708.6 nm laser is used as the light source, what will the wavelength of the corresponding anti-Stokes line be (in nm)?

  • The wavenumber of the incident radiation in a Raman spectrometer is 20 623 cm−1. What is...

    The wavenumber of the incident radiation in a Raman spectrometer is 20 623 cm−1. What is the wavenumber of the scattered Stokes radiation for the J = 4 ← 2 transition of 16O2? (I solved for delta E = E(j=4) - E(j=2) and then used delta E = h*v and wavenumber = v/c .. but I think I messed up something because I got an extremely small wavenumber. Could you possibly follow this format?)

  • A scientist uses the 454.6 nm output from an Ar+ laser to study the vibrational energy...

    A scientist uses the 454.6 nm output from an Ar+ laser to study the vibrational energy levels of pyrimidine. A large peak due to the ring breathing vibration of the molecule is observed in the Stokes Raman spectrum at 990 cm−1. What is the wavelength in nm of the photons corresponding to this peak that the scientist is detecting?
