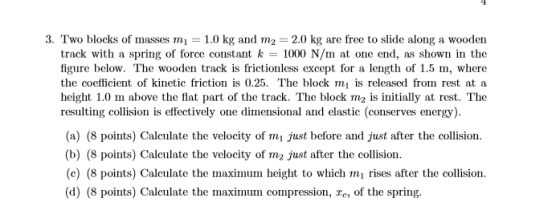

Figure shown above.
Please show all work with
algebra.

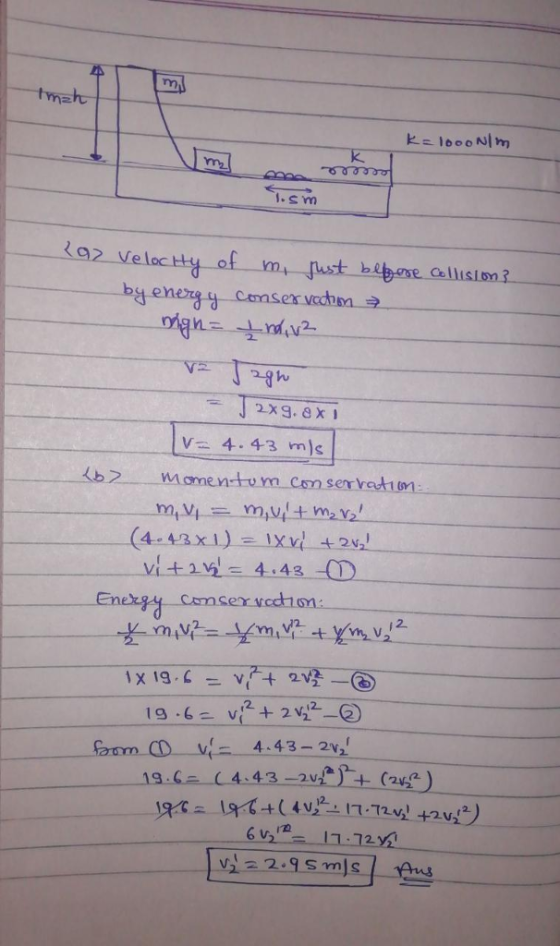

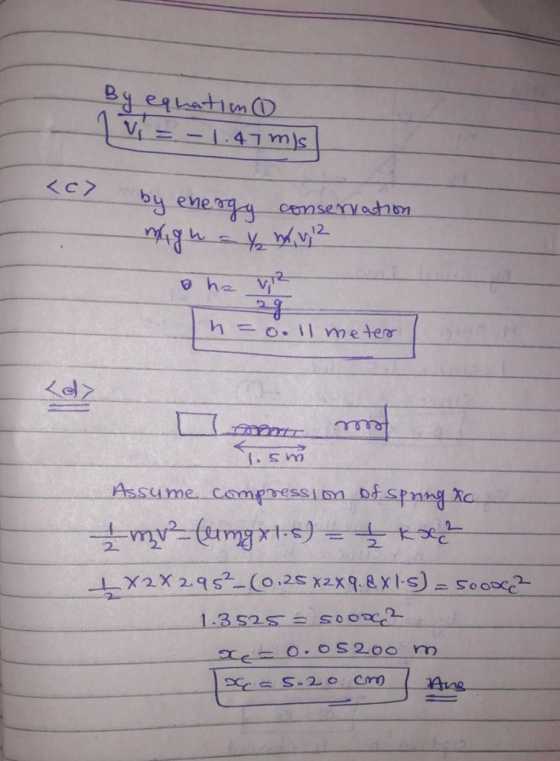

Homework Answers
Add Answer to:
Figure shown above.Please show all work with
algebra.
На m2 Problem 3. 3. Two blocks of...
As shown in the figure below, two blocks (m1 and m2) are each released from rest...
As shown in the figure below, two blocks
(m1 and m2) are each released from rest at a height of h = 3.98 m
on a frictionless track and when they meet on the horizontal
section of the track they undergo an elastic collision. If m1 =
2.50 kg and m2 = 4.05 kg, determine the maximum heights (in m) to
which they rise after the collision. Use the coordinate system
shown in the figure.
As shown in the figure...
As shown in the figure below, two blocks (m, and m2) are each released from rest...
As shown in the figure below, two blocks (m, and m2) are each released from rest at a height of h = 3.28 m on a frictionless track and when they meet on the horizontal section of the track they undergo an elastic collision. 112 If mi 2.50 kg and m2 = 4.55 kg, determine the maximum heights (in m) to which they rise after the collision. Use the coordinate system shown in the figure. Ylf = m Y2f m
Two blocks of masses m1 = 1.82 kg and m2 = 4.17 kg are each released...
Two blocks of masses m1 = 1.82 kg and m2 = 4.17 kg are each released from rest at a height of h = 4.85 m on a frictionless track, as shown in the figure, and undergo an elastic head-on collision m m2 Determine the velocity of the mi block just before the collision. (Use positive sign if the motion is to the right, negative if it is to the left.) 9.75 m/s You are correct. Your receipt no. is...
As shown in the figure below, two blocks (m1 and m2) are each released from rest...
As shown in the figure below,
two blocks (m1 and m2) are
each released from rest at a height of h = 3.83 m
on a frictionless track and when they meet on the horizontal
section of the track they undergo an elastic collision.
If m1 = 2.50 kg and m2 = 4.45 kg,determine
the maximum heights (in m) to which they rise after the collision.
Use the coordinate system shown in the figure.
y1f = m
y2f = m...
As shown in the figure below, two blocks (m1 and m2) are each released from rest...
As shown in the figure below, two blocks (m1
and m2) are each released from rest at a height
of
h = 3.28 m
on a frictionless track and when they meet on the horizontal
section of the track they undergo an elastic collision.
If
m1 = 2.50 kg
and
m2 = 4.75 kg,
determine the maximum heights (in m) to which they rise after
the collision. Use the coordinate system shown in the figure.
y1f
= m
y2f
=...
Please show all work. As shown in the figure below, two blocks (m, and m2) are...
Please show all work.
As shown in the figure below, two blocks (m, and m2) are each released from rest at a height of h = 4.78 m on a frictionless track and when they meet on the horizontal section of the track they undergo an elastic collision. m2 If m1 = 2.50 kg and m2 = 3.85 kg, determine the maximum heights (in m) to which they rise after the collision. Use the coordinate system shown in the figure....
2003 Thomson - Brooks/Cole m2 FIGURE P6.48 (c6p48) Consider a frictionless track as shown in Figure...
2003 Thomson - Brooks/Cole m2 FIGURE P6.48 (c6p48) Consider a frictionless track as shown in Figure P6.48. A block of mass m1 = 5.0 kg is released from A, at a height h = 13.0 m. It makes a head-on elastic collision at B with a block of mass m2 = 11.0 kg that is initially at rest. Calculate the maximum height to which mi rises after the collision. Submit Answer Tries 0/8 This discussion is closed. Send Feedback
As shown in the figure below, two blocks (m, and m2) are each released from rest...
As shown in the figure below, two blocks (m, and m2) are each released from rest at a height of h = 4.68 m on a frictionless track and when they meet on the horizontal section of the track they undergo an elastic collision. m2 If my = 2.50 kg and m2 = 4.55 kg, determine the maximum heights (in m) to which they rise after the collision. Use the coordinate system shown in the figure. Y1f m Y2F m
As shown in the figure below, two blocks (m, and m2) are each released from rest...
As shown in the figure below, two blocks (m, and m2) are each released from rest at a height of h = 4.48 m on a frictionless track and when they meet on the horizontal section of the track they undergo an elastic collision. If m = 2.50 kg and m2 = 3.85 kg, determine the maximum heights (in m) to which they rise after the collision. Use the coordinate system shown in the figure. Vir = m Y2x =...
As shown in the figure below, two blocks (m1 and m2) are each released from rest...
As shown in the figure below, two blocks (m1 and m2) are each released from rest at a height of h = 4.18 m on a frictionless track and when they meet on the horizontal section of the track they undergo an elastic collision. If m1 = 2.50 kg and m2 = 4.15 kg,determine the maximum heights (in m) to which they rise after the collision. Use the coordinate system shown in the figure. y1f= ??m y2f=????m
As shown in the figure below, two blocks
(m1 and m2) are each released from rest at a height of h = 3.98 m
on a frictionless track and when they meet on the horizontal
section of the track they undergo an elastic collision. If m1 =
2.50 kg and m2 = 4.05 kg, determine the maximum heights (in m) to
which they rise after the collision. Use the coordinate system
shown in the figure.
As shown in the figure...
As shown in the figure below, two blocks (m, and m2) are each released from rest at a height of h = 3.28 m on a frictionless track and when they meet on the horizontal section of the track they undergo an elastic collision. 112 If mi 2.50 kg and m2 = 4.55 kg, determine the maximum heights (in m) to which they rise after the collision. Use the coordinate system shown in the figure. Ylf = m Y2f m
Two blocks of masses m1 = 1.82 kg and m2 = 4.17 kg are each released from rest at a height of h = 4.85 m on a frictionless track, as shown in the figure, and undergo an elastic head-on collision m m2 Determine the velocity of the mi block just before the collision. (Use positive sign if the motion is to the right, negative if it is to the left.) 9.75 m/s You are correct. Your receipt no. is...
As shown in the figure below,
two blocks (m1 and m2) are
each released from rest at a height of h = 3.83 m
on a frictionless track and when they meet on the horizontal
section of the track they undergo an elastic collision.
If m1 = 2.50 kg and m2 = 4.45 kg,determine
the maximum heights (in m) to which they rise after the collision.
Use the coordinate system shown in the figure.
y1f = m
y2f = m...
As shown in the figure below, two blocks (m1
and m2) are each released from rest at a height
of
h = 3.28 m
on a frictionless track and when they meet on the horizontal
section of the track they undergo an elastic collision.
If
m1 = 2.50 kg
and
m2 = 4.75 kg,
determine the maximum heights (in m) to which they rise after
the collision. Use the coordinate system shown in the figure.
y1f
= m
y2f
=...
Please show all work.
As shown in the figure below, two blocks (m, and m2) are each released from rest at a height of h = 4.78 m on a frictionless track and when they meet on the horizontal section of the track they undergo an elastic collision. m2 If m1 = 2.50 kg and m2 = 3.85 kg, determine the maximum heights (in m) to which they rise after the collision. Use the coordinate system shown in the figure....
2003 Thomson - Brooks/Cole m2 FIGURE P6.48 (c6p48) Consider a frictionless track as shown in Figure P6.48. A block of mass m1 = 5.0 kg is released from A, at a height h = 13.0 m. It makes a head-on elastic collision at B with a block of mass m2 = 11.0 kg that is initially at rest. Calculate the maximum height to which mi rises after the collision. Submit Answer Tries 0/8 This discussion is closed. Send Feedback
As shown in the figure below, two blocks (m, and m2) are each released from rest at a height of h = 4.68 m on a frictionless track and when they meet on the horizontal section of the track they undergo an elastic collision. m2 If my = 2.50 kg and m2 = 4.55 kg, determine the maximum heights (in m) to which they rise after the collision. Use the coordinate system shown in the figure. Y1f m Y2F m
As shown in the figure below, two blocks (m, and m2) are each released from rest at a height of h = 4.48 m on a frictionless track and when they meet on the horizontal section of the track they undergo an elastic collision. If m = 2.50 kg and m2 = 3.85 kg, determine the maximum heights (in m) to which they rise after the collision. Use the coordinate system shown in the figure. Vir = m Y2x =...
