Question

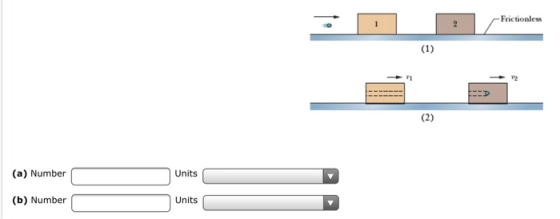

In Figure (1), a 3.50 g bullet is fired horizontally at two blocks at rest on a frictionless table. The bullet passes through block 1 (mass 1.04 kg) and embeds itself in block 2 (mass 1.69 kg). The blocks end up with speeds v1 = 0.550 m/s and v2 = 1.40 m/s (see Figure (2)). Neglecting the material removed from block 1 by the bullet, find the speed of the bullet as it (a) leaves and (b) enters block 1.


Frictionless (a) Number Units (b) Number Unts
0 0
Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:
In Figure (1), a 3.50 g bullet is fired horizontally at two blocks at rest on...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • In Figure (1), a 3.50 g bullet is fired horizontally at two blocks at rest on...

    In Figure (1), a 3.50 g bullet is fired horizontally at two blocks at rest on a frictionless table. The bullet passes through block 1 (mass 1.13 kg) and embeds itself in block 2 (mass 1.65 kg). The blocks end up with speeds V1 = 0.550 m/s and v2 = 1.45 m/s (see Figure (2)). Neglecting the material removed from block 1 by the bullet, find the speed of the bullet as it (a) leaves and (b) enters block 1....

  • In Figure (1), a 3.50 g bullet is fired horizontally at two blocks at rest on...

    In Figure (1), a 3.50 g bullet is fired horizontally at two blocks at rest on a frictionless table. The bullet passes through block 1 (mass 1.20 kg) and embeds itself in block 2 (mass 1.85 kg). The blocks end up with speeds v1 = 0.510 m/s and v2 = 1.38 m/s (see Figure (2)). Neglecting the material removed from block 1 by the bullet, find the speed of the bullet as it (a) leaves and (b) enters block 1....

  • In Figure (1), a 3.50 g bullet is fired horizontally at two blocks at rest on...

    In Figure (1), a 3.50 g bullet is fired horizontally at two blocks at rest on a frictionless table. The bullet passes through block 1 (mass 1.33 kg) and embeds itself in block 2 (mass 1.89 kg). The blocks end up with speeds V1 = 0.560 m/s and v2 = 1.42 m/s (see Figure (2)). Neglecting the material removed from block 1 by the bullet, find the speed of the bullet as it (a) leaves and (b) enters block 1....

  • In Figure (1), a 3.50 g bullet is fired horizontally at two blocks at rest on...

    In Figure (1), a 3.50 g bullet is fired horizontally at two blocks at rest on a frictionless table. The bullet passes through block 1 (mass 1.36 kg) and embeds itself in block 2 (mass 1.87 kg). The blocks end up with speeds v1 = 0.500 m/s and v2 = 1.35 m/s (see Figure (2)). Neglecting the material removed from block 1 by the bullet, find the speed of the bullet as it (a) leaves and (b) enters block 1.

  • In Figure (1), a 3.50 g bullet is fired horizontally at two blocks at rest on...

    In Figure (1), a 3.50 g bullet is fired horizontally at two blocks at rest on a frictionless table. The bullet passes through block 1 (mass 1.37 kg) and embeds itself in block 2 (mass 2.01 kg). The blocks end up with speeds v_1 = 0.600 m/s and v_2 = 1.45 m/s (see Figure (2)). Neglecting the material removed from block 1 by the bullet, find the speed of the bullet as it (a) leaves and (b) enters block 1....

  • A bullet with a mass of 1.60 g is fired horizontally at two blocks resting on...

    A bullet with a mass of 1.60 g is fired horizontally at two blocks resting on a smooth and frictionless table top as shown in the Figure. The bullet passes trhough the first 1.60 kg block, and embeds itself in a second 1.80 kg block. Speeds v1 = 1.60 m/s and v2 = 4.60 m/s, are thereby imparted on the blocks. The mass removed from the first block by the bullet can be neglected. Find the speed of the bullet...

  • If you don't answer all of it then youll receive bad rate and ill check if...

    If you don't answer all of it then youll receive bad rate and ill check if answer is right or not In Figure (1), a 3.50 q bullet is fired horizontally at two blocks at rest on a frictionless table. The bullet passes through block 1 (mass 1.13 kg) and embeds itself in block 2 (mass 1.65 kg). The blocks end up with speeds v1 = 0.550 m/s and v2 = 1.45 m/s (see Figure (2)). Neglecting the material removed...

  • elastic or inelastic? (Only one try on FND_AY 20 MP2_WADE 11/23/2019 7. /16 pointsRW_Ed. Che P531dinelasticcollisions...

    elastic or inelastic? (Only one try on FND_AY 20 MP2_WADE 11/23/2019 7. /16 pointsRW_Ed. Che P531dinelasticcollisions Chuck Norris shoots a 4.50 9 bullet horizontally att picture labeled (a) below). The bullet passes through (mass 2.00 kg). The blocks end up with speeds vi 0. labeled (b) below). Neglect the mass removed from the first block by the 9 bullet horizontally at two blocks at rest on a frictionless tabletop in the w). The bullet passes through block 1 (mass 1.40...

  • U MCHALK GO A 4.00-g bullet is moving horizontally with a velocity of 255 m/s, where...

    U MCHALK GO A 4.00-g bullet is moving horizontally with a velocity of 255 m/s, where the +sign indicates that it is moving to the right (see part a of the drawing). The bullet is approaching two blocks resting on a horizontal frictionless surface. Air resistance is negligible. The bullet passes completely through the first block (an inelastic collision) and embeds itself in the second one, e indicated in part b. Note that both blocks are moving after the collision...

  • refer to picture. refer to pic Two blocks of masses 0.990 kg and 2.00 kg are...

    refer to picture. refer to pic Two blocks of masses 0.990 kg and 2.00 kg are at rest on a frictionless surface. A 10.0 g bullet is fired horizontally at a speed of 750 m/s and embeds itself inside the smaller block, as shown. The block with the bullet then collides elastically with the larger block. Determine, the speed of the smaller block after the bullet embeds itself inside. a. the amount of thermal energy produced. b. the final speed...
