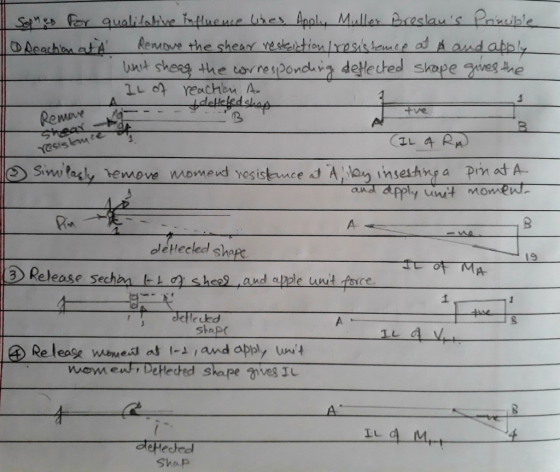

Qualitative influence lines method
Homework Answers
Add Answer to:
Qualitative influence lines method

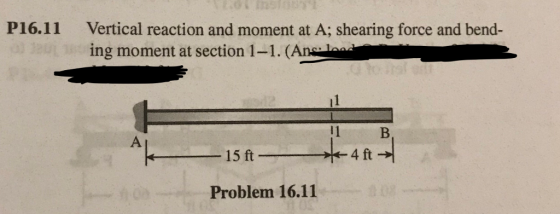

P16.11 Vertical reaction and moment at A; shearing force and bend- ing...
Qualitative influence line method P16.16 Reaction at B, shear force at section 1-1, and bending moment...
Qualitative influence line method
P16.16 Reaction at B, shear force at section 1-1, and bending moment at 2-2. (Ans: load P16.9 12 12 Problem 16.9
Qualitative influence line method Moment at D and B; shear force at C. Moment crelease D...
Qualitative influence line method
Moment at D and B; shear force at C. Moment crelease D Problem 16.14
Draw the influence lines for (a) the vertical reaction at B, (b) the moment at C,...
Draw the influence lines for (a) the vertical reaction at B, (b) the moment at C, and (c) the shear sust o the ight of the support at A Sove this probiem using the basic method of Sec 6 1 Prob. 6-3 6 ft 9 It
Problem #2 6-7. Draw the influence lines for (a) the moment at B (b) the shear...
Problem #2 6-7. Draw the influence lines for (a) the moment at B (b) the shear at B, and (c) the vertical reaction at A. Solve this problem using the basic method of Sec. 6.1. Hint: The support at C resists only a horizontal force and a bending moment.
Using STATICS DRAW the INFLUENCE LINES for the VERTICAL REACTION AT "A"
(Influence Line Creation) Problem 1. Using STATICS DRAW the INFLUENCE LINES for the VERTICAL REACTION AT "A", the SHEAR AT "E", and the MOMENT AT "E". SHOW ALL VALUES. Assume the support 'A' is a pin, "B" and "D" are rollers, and "C" is a hinge. (12 points) FREE BODY DIAGRAMS & CALCULATIONS
ct the influence lines for the vertical reactions at suppurls G, the shear and bending moment at point F of the beanm in the Figure. Use Equilibrium method or Muller-Breslau's principle metho...
ct the influence lines for the vertical reactions at suppurls G, the shear and bending moment at point F of the beanm in the Figure. Use Equilibrium method or Muller-Breslau's principle method. (25 points) Hinge
ct the influence lines for the vertical reactions at suppurls G, the shear and bending moment at point F of the beanm in the Figure. Use Equilibrium method or Muller-Breslau's principle method. (25 points) Hinge
1) Draw the influence lines for the reaction force at A, the shear force at C...
1) Draw the influence lines for the reaction force at A, the shear force at C and the moment at C. Show all the values. faA 2m 2 m 2 m 2) The Beam of problem #1 is subjected to uniform dead load 0.8 kN/m and uniform live load of 2 kN/m and a single live concentrated force of 20 kN. Determine (a) the maximum reaction force at A, (b) the maximum positive shear at point C, and (c) the...
Question 2: A simply supported beam under loading as shown in Figure 1: 1. Draw the influence lines of the bending moment and shear force at point C (L/4) Using the influence lines to determine t...
Question 2: A simply supported beam under loading as shown in Figure 1: 1. Draw the influence lines of the bending moment and shear force at point C (L/4) Using the influence lines to determine the bending moment and shear force at section C due to the loading as shown in the figure. 2. 3. There is a distributed live load (w#2.5kN/m) which can vary the location along the beam. Determine the location of the live loads which create the...
Draw the influence lines for: a. the vertical reaction at A b. the shear pin just...
Draw the influence lines for:
a. the vertical reaction at A
b. the shear pin just to the right of A
c. moment at C
Here, C is a fixed support, A is a roller support and B is a
pin.
8 ft
PROBLEMS 6-1. Draw the influence lines for (a) the moment at C, (b) the reaction at...
PROBLEMS 6-1. Draw the influence lines for (a) the moment at C, (b) the reaction at B, and (c) the shear at C. Assume A is pinned and B is a roller. Solve this problem using the basic method of Sec. 6–1. 3 m 3 m - - - 3 m Probs. 6-1/6-2
Qualitative influence line method
P16.16 Reaction at B, shear force at section 1-1, and bending moment at 2-2. (Ans: load P16.9 12 12 Problem 16.9
Qualitative influence line method
Moment at D and B; shear force at C. Moment crelease D Problem 16.14
Draw the influence lines for (a) the vertical reaction at B, (b) the moment at C, and (c) the shear sust o the ight of the support at A Sove this probiem using the basic method of Sec 6 1 Prob. 6-3 6 ft 9 It
Problem #2 6-7. Draw the influence lines for (a) the moment at B (b) the shear at B, and (c) the vertical reaction at A. Solve this problem using the basic method of Sec. 6.1. Hint: The support at C resists only a horizontal force and a bending moment.
ct the influence lines for the vertical reactions at suppurls G, the shear and bending moment at point F of the beanm in the Figure. Use Equilibrium method or Muller-Breslau's principle method. (25 points) Hinge
ct the influence lines for the vertical reactions at suppurls G, the shear and bending moment at point F of the beanm in the Figure. Use Equilibrium method or Muller-Breslau's principle method. (25 points) Hinge
1) Draw the influence lines for the reaction force at A, the shear force at C and the moment at C. Show all the values. faA 2m 2 m 2 m 2) The Beam of problem #1 is subjected to uniform dead load 0.8 kN/m and uniform live load of 2 kN/m and a single live concentrated force of 20 kN. Determine (a) the maximum reaction force at A, (b) the maximum positive shear at point C, and (c) the...
Question 2: A simply supported beam under loading as shown in Figure 1: 1. Draw the influence lines of the bending moment and shear force at point C (L/4) Using the influence lines to determine the bending moment and shear force at section C due to the loading as shown in the figure. 2. 3. There is a distributed live load (w#2.5kN/m) which can vary the location along the beam. Determine the location of the live loads which create the...
Draw the influence lines for:
a. the vertical reaction at A
b. the shear pin just to the right of A
c. moment at C
Here, C is a fixed support, A is a roller support and B is a
pin.
8 ft
PROBLEMS 6-1. Draw the influence lines for (a) the moment at C, (b) the reaction at B, and (c) the shear at C. Assume A is pinned and B is a roller. Solve this problem using the basic method of Sec. 6–1. 3 m 3 m - - - 3 m Probs. 6-1/6-2
