Homework Answers

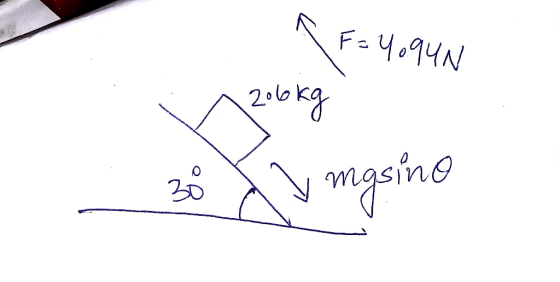

Step 1- Drawing the FBD of the block and mentioning the forces acting on it ( friction and gravitational)
Step
2- for part a) the unbalanced force acting on the block down the
slide is gravitational force therefore
Step 3- For part b the net force is given by the gravitational fircr- friction force which is equated to mass of block x net acceleration
Add Answer to:

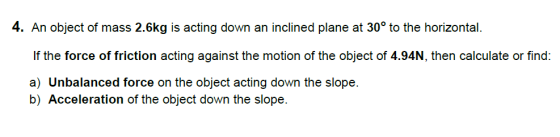

4. An object of mass 2.6kg is acting down an inclined plane at 30° to the...
an object of mass 10kg rests on an inclined plane of 30 degree angle with horizontal....
an object of mass 10kg rests on an inclined plane of
30 degree angle with horizontal. a force P=200 N acts on it upward
along the inclined plane and moves it 20m. the coefficient of
friction UK=0.25.
2 4 x (cm) 6. An object of mass 10 kg rests on an inclined plane of 30 angle with horizontal. A force 0° angle with horizontal. A force P 200 N acts on it upward along the inclined plane and moves it...
Q2)) A block of mass m= 4 kg slides down a frictionless plane inclined 30° to...
Q2)) A block of mass m= 4 kg slides down a frictionless plane inclined 30° to the horizontal . The block is connected to other block ( moving vertically) of mass m2= 1kg by massless string through a rough pulley (with moment of ineria I= 12 mR", m= 2kg and R=0.5 m) as shown in the fig. a) Find the acceleration of the blocks. b) Find the acceleration of the pulley. c) Find the tension in the string . 30
An object of mass 4.00 kg is sitting at the top of an inclined plane of...
An object of mass 4.00 kg is sitting at the top of an inclined plane of height h and angle θ with the horizontal. The object slides down the inclined plane and right before it reaches the bottom of the plane, it has speed of 16.0 m/s. Neglect friction. What is the height of the inclined plane?
An object of mass 2kg placed on an inclined plane accelerates down an incline at 4.9...
An object of mass 2kg placed on an inclined plane accelerates down an incline at 4.9 m/s2. Calculate the approximate angle of the incline if the coefficient of kinetic friction is 0.3 between the surfaces. A) 30 degrees B) 45 degrees C) 60 degrees D) 75 degrees
An object of mass 2kg placed on an inclined plane accelerates down an incline at 4.9...
An object of mass 2kg placed on an inclined plane accelerates down an incline at 4.9 m/s2. Calculate the approximate angle of the incline if the coefficient of kinetic friction is 0.3 between the surfaces. A) 30 degrees B) 45 degrees C) 60 degrees D) 75 degrees
An object with mass m is dragged along a horizontal plane by a force acting along a rope attached to the object as shown below mass horizontal plane If the rope makes an angle θ with the plane, then...
An object with mass m is dragged along a horizontal plane by a force acting along a rope attached to the object as shown below mass horizontal plane If the rope makes an angle θ with the plane, then the magnitude of the force required to overcome friction is where g is the acceleration due to gravity and μ is a positive constant called the coefficient of riction, and we assume θ [0, π/2) Use the second derivative t tan...
A block of mass m is sliding down a plane inclined at an angle theta to...
A block of mass m is sliding down a plane inclined at an angle theta to the horizontal. If the coefficient of friction is µk . Find the acceleration of the block. Draw a vector diagram to solve this question.
Question 1: Motion on a horizontal plane [25] On a horizontal plane, a force of 58...
Question 1: Motion on a horizontal plane [25] On a horizontal plane, a force of 58 N in the horizontal direction acts on an object of mass 10 kg. (1) Find the magnitude of the normal force N acting on the object from the plane. (2) Neglecting friction, find the magnitude of the acceleration a of the object. (3) Assuming that the coefficient of friction between the object and the plane is 0.50, find the magnitude of the acceleration a...
A block of mass 2m is intially at rest on a rough inclined plane where ?...
A block of mass 2m is intially at rest on a rough inclined plane
where ? < 30 and is connected to an object with mass m as shown.
the rope may be considerd massless, and the pulley may be considerd
frictionless . the cofficient of static friction between the block
and the plabe is us and the cofficient of kinetic
friction between the block and the plane is uk.
1. What is the magnitude of the static frictional force...
A box slides down a plane 8m long that is inclined at an angle of 30...
A box slides down a plane 8m long that is inclined at an angle of 30 degrees with the horizontal. If the box starts from rest and µ= 0.25, find a) the acceleration of the box b) its velocity at the bottom of the plane and c) the time required for it to reach the bottom. If the box in the previous problem has a mass of 60kg, how much force is needed to move it up the plane a)...
an object of mass 10kg rests on an inclined plane of
30 degree angle with horizontal. a force P=200 N acts on it upward
along the inclined plane and moves it 20m. the coefficient of
friction UK=0.25.
2 4 x (cm) 6. An object of mass 10 kg rests on an inclined plane of 30 angle with horizontal. A force 0° angle with horizontal. A force P 200 N acts on it upward along the inclined plane and moves it...
Q2)) A block of mass m= 4 kg slides down a frictionless plane inclined 30° to the horizontal . The block is connected to other block ( moving vertically) of mass m2= 1kg by massless string through a rough pulley (with moment of ineria I= 12 mR", m= 2kg and R=0.5 m) as shown in the fig. a) Find the acceleration of the blocks. b) Find the acceleration of the pulley. c) Find the tension in the string . 30
An object of mass 4.00 kg is sitting at the top of an inclined plane of height h and angle θ with the horizontal. The object slides down the inclined plane and right before it reaches the bottom of the plane, it has speed of 16.0 m/s. Neglect friction. What is the height of the inclined plane?
An object with mass m is dragged along a horizontal plane by a force acting along a rope attached to the object as shown below mass horizontal plane If the rope makes an angle θ with the plane, then the magnitude of the force required to overcome friction is where g is the acceleration due to gravity and μ is a positive constant called the coefficient of riction, and we assume θ [0, π/2) Use the second derivative t tan...
A block of mass 2m is intially at rest on a rough inclined plane
where ? < 30 and is connected to an object with mass m as shown.
the rope may be considerd massless, and the pulley may be considerd
frictionless . the cofficient of static friction between the block
and the plabe is us and the cofficient of kinetic
friction between the block and the plane is uk.
1. What is the magnitude of the static frictional force...
