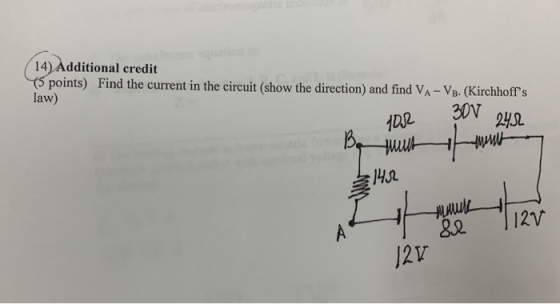

14) Additional credit 5 points) Find the current in the circuit (show the direction) and find...

Question

Question

science physics

Answer 1

Answer #1

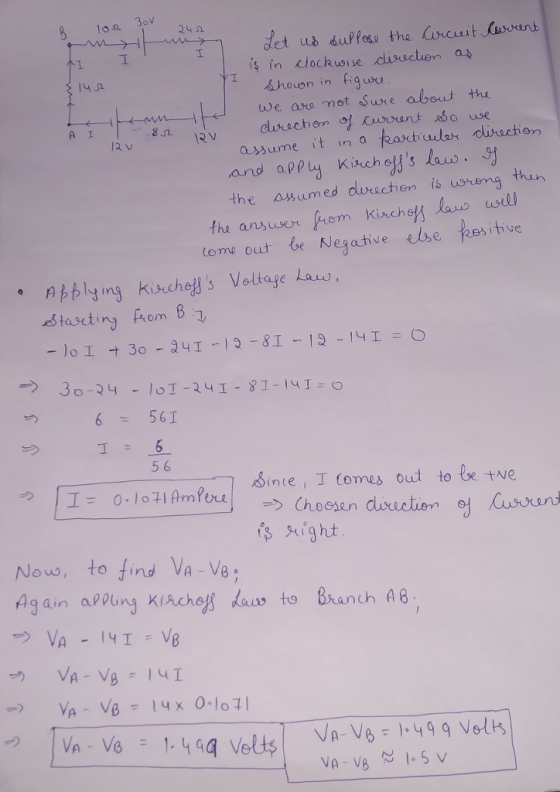

los2 3ον 24 Ω is in clockwise cisacduen a 1 142 hovon in figwe assume it n a eastrla direction And appl Kirch ofJs law. the

Answer 2

Similar Homework Help Questions

8) Find the current in the circuit (show the direction) and find VA-Vo- (Kirchhoff's law 2/2...

8) Find the current in the circuit (show the direction) and find VA-Vo- (Kirchhoff's law 2/2 02 乃
-V5+ (5 Points) Using Kirchhoff's Voltage Law on the following circuit, find the voltage Vab. w...

-V5+ (5 Points) Using Kirchhoff's Voltage Law on the following circuit, find the voltage Vab. w RI 612 R2 322 R3 322 12V - Vab + 24V
Please show all work and to follow directions. Only answer Problem 14 14)(4 points) Analyze the...

Please show all work and to follow directions. Only answer Problem 14 14)(4 points) Analyze the circuit in problem 9-12 using PSPICE as follows: Use a Bias Point analysis to find Ix, Iy, VA, VB and Vc in problem 12 above. Be sure to add text to the schematic as indicated in the Sample Report. Only show the result of Ix, ly, VA, VB and Ve on the schematic. Adjust the placement of each value on the schematic so that...

1) In the circuit below the currents are named A, and lc The current direction is determined by the source (out of positive terminal) in the middle and right branches and is clockwise in the left bra...

1) In the circuit below the currents are named A, and lc The current direction is determined by the source (out of positive terminal) in the middle and right branches and is clockwise in the left branch · IA flows through R2 and R1 Is flows through R4 and Vb cflows through R3, Vc AB R2 R3 R4 R1 Vb a) Draw the circuit and show the 3 currents described above, including arrows showing the current direction. Show the voltage...
Question 1.3. Solve the circuit and find the current lo and the power PRo dissipated by...

Question 1.3. Solve the circuit and find the current lo and the power PRo dissipated by Rc 12Ω 10 >Re=262 4Ω 12 V Figure 3: Voltage Sources Circuit Answer. Io= PR Question 1.4. Solve the circuit and find the voltages VA and VB 10Ω 3 A 22 VA 2Ω VB
5) (14 points) For the circuit shown below, find the current through R. R - 402...

5) (14 points) For the circuit shown below, find the current through R. R - 402 R -202 R-60

Find the current in each branch of the circuit. Specify the direction of each.

IMG_20201023_130326.jpgFor the circuit, please show the currents and the loops when you apply Kirchhoff's rules; please show where the loops and current directions are on the diagram provided
Please Show all steps in getting to the Solution (Please, thank you) 2. Charging a capacitor usually has a circuit with...

Please Show all steps in getting to the Solution (Please, thank you) 2. Charging a capacitor usually has a circuit with a battery, a resistor and a capacitor all in series The voltage of the resistor is given by Ohm's law VRIR and the voltage across the capacitor is given by Vc. According to Kirchoff's voltage law we have the equation Vb - Va + Vc Vb ㅡ R-+ Integrate the equation to find the charge on the capacitor as...
Question 3 5 out of 5 points Analyze the circuit below to derive an expression for...

Question 3 5 out of 5 points Analyze the circuit below to derive an expression for lout in terms of the input voltages, Va and Vb. Assume R1-R2-R3-R4-R. Assume the op-amp is operating in its linear region. Va R1 R2 OA2 LM741 Vb R3 R4 lout RL

(5 points) Extra Credit Find the magnitude and direction of the magnetic field at point P...

(5 points) Extra Credit Find the magnitude and direction of the magnetic field at point P on the semi-circle loop. A current of 1.0 A passes through the loop. Radius of the loop is 10.0 cm. P.
