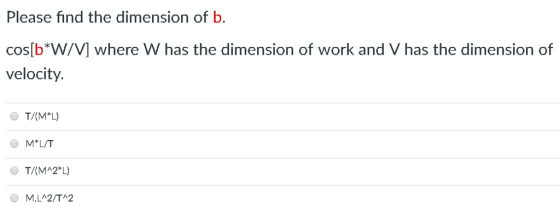

![Please find the dimension of b. cos[b W/V] where W has the dimension of work and V has the dimension of COS velocity M*LIT O M.LA2/TA2](http://img.homeworklib.com/questions/93e924a0-72e5-11ea-b0d9-e55a97b34618.png?x-oss-process=image/resize,w_560)
Please explain all aspects of the question, no idea what it's asking
the question is asking the dimension of b.
In Cos[b*W/V] , b*W/V will be dimensionless because it's equal to angle. and angle has no dimension
b*W/V should be dimensionless.
given
W=[ML2T−2]
V= [LT−1]
b*W/V = b* [ML2T−2]/[LT−1] = dimentionless
b*W/V = b* [MLT−1 ] = dimentioless (! have been taken cause 1 have no dimention )
so b= 1/ [MLT−1 ]
b=T/[ML]
First option is correct.
