Need specific solutions for these two questions, thank you!
Homework Answers

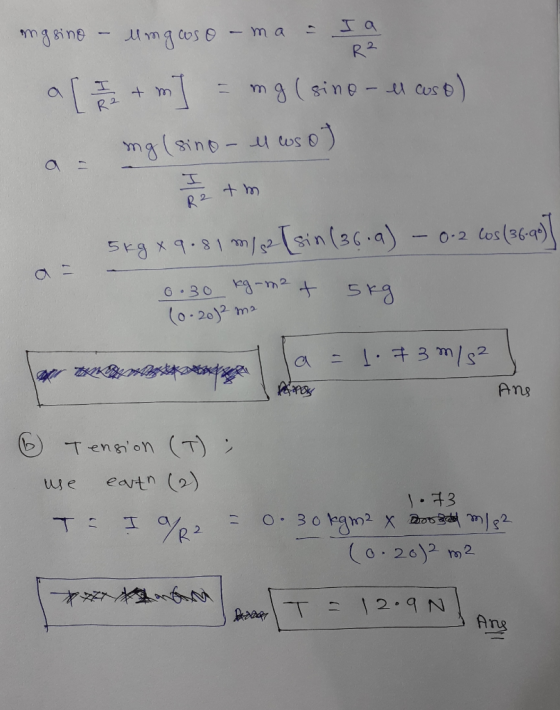

![mgsino - umgos o -ma - I a R2 ale + m] = mg (sino - e cuso) mg (sino - u ws 0 ) a 5kg x 9.81 m/ 2 [sin (36.9) - 0-2 Cos (36-9](http://img.homeworklib.com/questions/a9ad8ad0-72f7-11ea-9844-a311bc49b606.png?x-oss-process=image/resize,w_560)
Add Answer to:
Need specific solutions for these two questions, thank you!

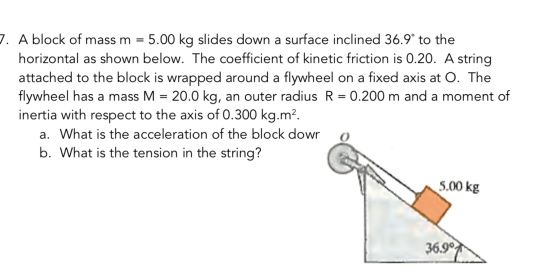

7. A block of mass m =...
A block with mass m = 5.00 kg slides down a surface inclined 36.9 ∘ to the...
A block with mass m = 5.00 kg slides down a surface inclined 36.9 ∘ to the horizontal (the figure (Figure 1)). The coefficient of kinetic friction is 0.25. A string attached to the block is wrapped around a flywheel on a fixed axis at O. The flywheel has mass 25.0 kg and moment of inertia 0.500 kg⋅m2 with respect to the axis of rotation. The string pulls without slipping at a perpendicular distance of 0.200 m from that axis. A)...
A block with mass m = 5.00kg slides down a surface inclined 36.9 ? to the horizontal (the figure (Figure 1)...
A block with mass m = 5.00kg slides down a
surface inclined 36.9 ? to the horizontal (the figure (Figure 1) ).
The coefficient of kinetic friction is 0.26. A string attached to
the block is wrapped around a flywheel on a fixed axis at
O. The flywheel has mass 8.16kg and moment of inertia
0.500 kg?m2 with respect to the axis of rotation. The string pulls
without slipping at a perpendicular distance of 0.350m from that
axis.
Part A
What...
A block of mass m = 200 g is connected by a string of negligible mass...
A block of mass m = 200 g is connected by a string of negligible mass to a second block of mass ma 400 g. The blocks are at rest on a rough table with coefficients of kinetic friction of = 0.300, and 2. H20.200. A force of 2.50 N in the positive x-direction is applied to mass m. mi m2 Find (a). the acceleration of each block. [5 marks] (b). the tension in the connecting string. [5 marks) The...
Need specific solutions for these four questions, thank you! 5. A mass of 2 kg is...
Need specific solutions for these four
questions, thank you!

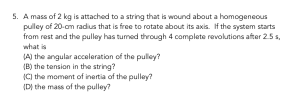

5. A mass of 2 kg is attached to a string that is wound about a homogeneous pulley of 20-cm radius that is free to rotate about its axis. If the system starts from rest and the pulley has turned through 4 complete revolutions after 2.5 s, what is (A) the angular acceleration of the pulley? (B) the tension in the string? (C) the moment of inertia of the pulley? (D)...
6. (20 points) A block of mass M-10.0 kg slides down a rough inclined plane with...
6. (20 points) A block of mass M-10.0 kg slides down a rough inclined plane with an acceleration 0.300 m/s. The plane makes an angle theta-30.0 with th block is connected by a string, of negligible mass, that is wrapped around a pulley pulley has a mass Mp-3.00 kg, radius 0.0200 m and may be modeled as a uniform disc e horizontal. The oefficient of kinetic friction on the incline and the torque exerted on the pulley. A numerical value...
A block of mass m = 1.8 kg is attached to a string that is wrapped...
A block of mass m = 1.8 kg is attached to a string that is wrapped around the circumference of a wheel of radius R = 7.3 cm . The wheel rotates freely about its axis and the string wraps around its circumference without slipping. Initially the wheel rotates with an angular speed ω, causing the block to rise with a linear speed v = 0.24 m/s. Find the moment of inertia of the wheel if the block rises to...
A block of mass m = 1.7 kg is attached to a string that is wrapped...
A block of mass m = 1.7 kg is attached to a string that is wrapped around the circumference of a wheel of radius R = 7.5 cm . The wheel rotates freely about its axis and the string wraps around its circumference without slipping. Initially the wheel rotates with an angular speed ω, causing the block to rise with a linear speed v = 0.42 m/s .(Figure 1) Find the moment of inertia of the wheel if the block...
A block of mass m = 1.4 kg is attached to a string that is wrapped...
A block of mass m = 1.4 kg is attached to a string that is wrapped around the circumference of a wheel of radius R = 7.1 cm . The wheel rotates freely about its axis and the string wraps around its circumference without slipping. Initially the wheel rotates with an angular speed ω, causing the block to rise with a linear speed v = 0.27 m/s . Part A: Find the moment of inertia of the wheel if the...
Please help! 10, A block of mass m = 3.50 kg is hanging from a massless...
Please help!
10, A block of mass m = 3.50 kg is hanging from a massless cord that is wrapped around a pulley (mass = 5.00 kg) as shown in the figure. The cord does not slip relative to the pulley as the block falls. Find the magnitude of the tension in the cord. (moment of inertia of the pulley áMr2)
Q2)) A block of mass m= 4 kg slides down a frictionless plane inclined 30° to...
Q2)) A block of mass m= 4 kg slides down a frictionless plane inclined 30° to the horizontal . The block is connected to other block ( moving vertically) of mass m2= 1kg by massless string through a rough pulley (with moment of ineria I= 12 mR", m= 2kg and R=0.5 m) as shown in the fig. a) Find the acceleration of the blocks. b) Find the acceleration of the pulley. c) Find the tension in the string . 30
A block with mass m = 5.00kg slides down a
surface inclined 36.9 ? to the horizontal (the figure (Figure 1) ).
The coefficient of kinetic friction is 0.26. A string attached to
the block is wrapped around a flywheel on a fixed axis at
O. The flywheel has mass 8.16kg and moment of inertia
0.500 kg?m2 with respect to the axis of rotation. The string pulls
without slipping at a perpendicular distance of 0.350m from that
axis.
Part A
What...
A block of mass m = 200 g is connected by a string of negligible mass to a second block of mass ma 400 g. The blocks are at rest on a rough table with coefficients of kinetic friction of = 0.300, and 2. H20.200. A force of 2.50 N in the positive x-direction is applied to mass m. mi m2 Find (a). the acceleration of each block. [5 marks] (b). the tension in the connecting string. [5 marks) The...
Need specific solutions for these four
questions, thank you!
5. A mass of 2 kg is attached to a string that is wound about a homogeneous pulley of 20-cm radius that is free to rotate about its axis. If the system starts from rest and the pulley has turned through 4 complete revolutions after 2.5 s, what is (A) the angular acceleration of the pulley? (B) the tension in the string? (C) the moment of inertia of the pulley? (D)...
6. (20 points) A block of mass M-10.0 kg slides down a rough inclined plane with an acceleration 0.300 m/s. The plane makes an angle theta-30.0 with th block is connected by a string, of negligible mass, that is wrapped around a pulley pulley has a mass Mp-3.00 kg, radius 0.0200 m and may be modeled as a uniform disc e horizontal. The oefficient of kinetic friction on the incline and the torque exerted on the pulley. A numerical value...
Please help!
10, A block of mass m = 3.50 kg is hanging from a massless cord that is wrapped around a pulley (mass = 5.00 kg) as shown in the figure. The cord does not slip relative to the pulley as the block falls. Find the magnitude of the tension in the cord. (moment of inertia of the pulley áMr2)
Q2)) A block of mass m= 4 kg slides down a frictionless plane inclined 30° to the horizontal . The block is connected to other block ( moving vertically) of mass m2= 1kg by massless string through a rough pulley (with moment of ineria I= 12 mR", m= 2kg and R=0.5 m) as shown in the fig. a) Find the acceleration of the blocks. b) Find the acceleration of the pulley. c) Find the tension in the string . 30
