Question

A block with mass  m = 5.00kg slides down a surface inclined 36.9 ? to the horizontal (the figure (Figure 1) ). The coefficient of kinetic friction is 0.26. A string attached to the block is wrapped around a flywheel on a fixed axis at O. The flywheel has mass 8.16kg and moment of inertia 0.500 kg?m2 with respect to the axis of rotation. The string pulls without slipping at a perpendicular distance of 0.350m from that axis.

Part A

What is the acceleration of the block down the plane?

a =		m/s2

SubmitMy AnswersGive Up

Part B

What is the tension in the string?

T =		N

SubmitMy AnswersGive Up

Figure 1 of 1

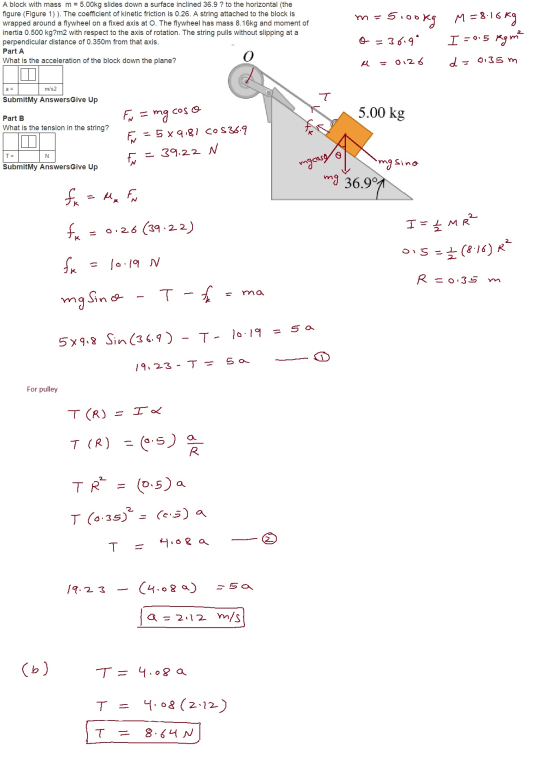

Answer 1

A block with mass m5.00kg slides down a surface inclined 36.9? to the horizontal (the figure (Figure 1)). The coefficient of kinetic friction is 0.26. A string attached to the block is wrapped around a flywheel on a fixed axis at O. The flywheel has mass 8.16kg and moment of inertia 0.500 kg?m2 with respect to the axis of rotation. The string pulls without slipping at a perpendicular distance of 0.350m from that axis Part A What is the acceleration of the block down the plane? m/s2 SubmitMy AnswersGive Up 5.00 kg Part B What is the tension in the string? Е-Б x q.gicos36.9 rnqSine SubmitMy AnswersGive Up mg 36.9° 队 26 39.22 - rna, i n For pulley T (R) 2 3 s a
