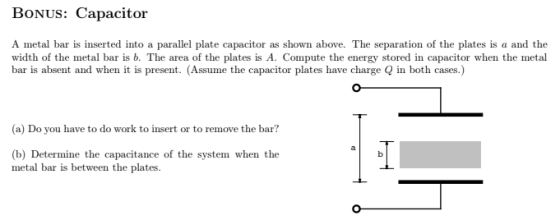

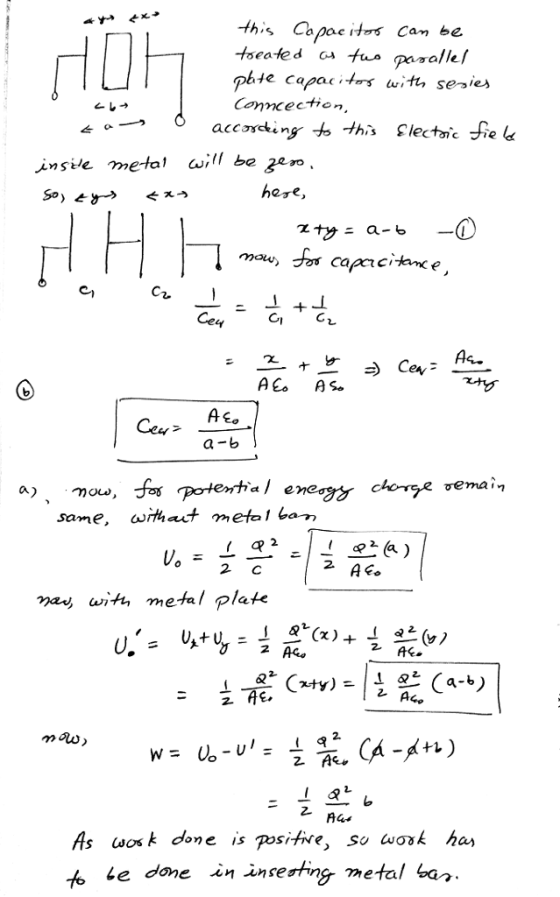

BoNUs: Capacitor A metal bar is inserted into a parallel plate capacitor as shown above. The...
Which of the following would increase the capacitance of a parallel-plate capacitor? I. Insert a dielectric...
Which of the following would increase the capacitance of a parallel-plate capacitor? I. Insert a dielectric between the plates. II. Increase the surface area of each plate. III. Increase the separation distance between the plates. O I and II only OII and III only All of the above. A capacitor is charged with a battery to a voltage V and then disconnected from the battery. A dielectric is inserted between the plates. When the dielectric is inserted, what happens to...
The plates of an air-filled parallel-plate capacitor with a plate area of 16.5 cm2 and a...
The plates of an air-filled parallel-plate capacitor with a plate area of 16.5 cm2 and a separation of 8.80 mm are charged to a 130-V potential difference. After the plates are disconnected from the source, a porcelain dielectric with κ = 6.5 is inserted between the plates of the capacitor. (a) What is the charge on the capacitor before and after the dielectric is inserted? Qi = ___C Qf = ____C (b) What is the capacitance of the capacitor after...
A parallel plate capacitor is constructed with plate area of 0.80 m2 and a plate separation...
A parallel plate capacitor is constructed with plate area of 0.80 m2 and a plate separation of 0.10 mm. When it is charged to a potential difference of 12 V, the charge stored on it is = micro C. A parallel plate capacitor is constructed with plate area of 0.40 m2 and a plate separation of 0.10 mm. When it is charged to a potential difference of 12 V, the charge stored on it is= micro C. A parallel-plate capacitor...
A parallel plate capacitor is constructed with plate area of 0.40 m2 and a plate separation...
A parallel plate capacitor is constructed with plate area of 0.40 m2 and a plate separation of 0.10 mm. How much charge is stored on it when it is charged to a potential difference of 12 V? A parallel-plate capacitor is filled with air, and the plates are separated by 0.050 mm. If the capacitance is 17.3 pF, what is the plate area? A parallel plate capacitor is constructed with plate area of 0.0010 m2 and a plate separation of...
A parallel plate capacitor is comprised of two metal plates with area A and separated by...
A parallel plate capacitor is comprised of two metal plates with area A and separated by distance d. This parallel plate capacitor is connected to a battery with voltage AVo. Your answer should depend on A, d, ΔVo, and any other physical constants a. Determine the charge stored on the plates of the capacitor and the energy stored in the capacitor b. Determine the strength of the electric field between the plates of the capacitor c. An experimenter has five...
A parallel-plate capacitor has capacitance 9.50 uF. (a) How much energy is stored in the capacitor...
A parallel-plate capacitor has capacitance 9.50 uF. (a) How much energy is stored in the capacitor if it is connected to a 7.00-V battery? (b) If the battery is disconnected and the distance between the charged plates doubled, what is the energy stored? (c) The battery is subsequently reattached to the capacitor, but the plate separation remains as in part (b). How much energy is stored? Need Help? Read It 13. -120 points OSColPhys1 19.5.064 XP A large capacitance of...
A parallel-plate capacitor has capacitance 5.20 μF. The capacitor was origionaly connected to a 1.50 V...
A parallel-plate capacitor has capacitance 5.20 μF. The capacitor was origionaly connected to a 1.50 V battery? (b) If the battery is disconnected and the distance between the charged plates doubled, what is the energy stored? Note: When disconnected, the charge on the capacitor must remain the same as when disconnected. A parallel-plate capacitor has capacitance 5.20 μF. The capacitor was origionaly connected to a 1.50 V battery? (c) The battery is subsequently reattached to the capacitor, but the plate...
A parallel plate, air filled capacitor, has plates of area 0.81 m2 and a separation of...
A parallel plate, air filled capacitor, has plates of area 0.81 m2 and a separation of 0.050 mm. (a) Find the capacitance in nF (b) If a voltage of 25 volts is applied to the capacitor, what is the magnitude of the charge on each plate in µC? (c) What is the energy stored in the capacitor in µJ? Now the plates are filled with water having a dielectric constant of 78.5. (d) What is the energy stored in the...
a parallel plate capacitor had metal plates, each of area 1.5 A parallel applied to it?...
a parallel plate capacitor had metal plates, each of area
1.5
A parallel applied to it? plate capacitor has metal plates, each of area 1.50 m2, t charge (in pC) is stored in this capacitor if a voltage of 2.70 × 102 Vis
A parallel plate capacitor is constructed with circular plates of radius 0.750 cm and plate separation...
A parallel plate capacitor is constructed with circular plates of radius 0.750 cm and plate separation 0.0500 mm. If the capacitor is connected across a 37.2 V source, find: a) the capacitance b) the surface charge on each plate c) The energy stored in the capacitor d) the electric field between the plates e) the energy density between the plates
Which of the following would increase the capacitance of a parallel-plate capacitor? I. Insert a dielectric between the plates. II. Increase the surface area of each plate. III. Increase the separation distance between the plates. O I and II only OII and III only All of the above. A capacitor is charged with a battery to a voltage V and then disconnected from the battery. A dielectric is inserted between the plates. When the dielectric is inserted, what happens to...
A parallel plate capacitor is comprised of two metal plates with area A and separated by distance d. This parallel plate capacitor is connected to a battery with voltage AVo. Your answer should depend on A, d, ΔVo, and any other physical constants a. Determine the charge stored on the plates of the capacitor and the energy stored in the capacitor b. Determine the strength of the electric field between the plates of the capacitor c. An experimenter has five...
A parallel-plate capacitor has capacitance 9.50 uF. (a) How much energy is stored in the capacitor if it is connected to a 7.00-V battery? (b) If the battery is disconnected and the distance between the charged plates doubled, what is the energy stored? (c) The battery is subsequently reattached to the capacitor, but the plate separation remains as in part (b). How much energy is stored? Need Help? Read It 13. -120 points OSColPhys1 19.5.064 XP A large capacitance of...
a parallel plate capacitor had metal plates, each of area
1.5
A parallel applied to it? plate capacitor has metal plates, each of area 1.50 m2, t charge (in pC) is stored in this capacitor if a voltage of 2.70 × 102 Vis
