A 200 m linear array is used for receiving a 300 Hz signal. What is the...
A 200 m linear array is used for receiving a 300 Hz signal. What is the directivity index?
Homework Answers
Directivity index, DI = 10log (2L/λ)
DI = 10 log(400m/λ)
λ = 330 m/s /300 Hz = 1.1 m
DI = 10 log(400/1.1) = 25.6066
Add Answer to:
A 200 m linear array is used for receiving a 300 Hz signal. What
is the...
Consider a message signal m(t) that contains frequency components at 100, 200, and 400 Hz. This...
Consider a message signal m(t) that contains frequency components at 100, 200, and 400 Hz. This signal is used to modulate a carrier at 100 kHz to obtain an SSB modulated signal. At the receiver, in the coherent detector is used to recover m(t), the oscillator supplies a sine wave of frequency 100.02 kHz instead of a cosine wave of frequency 100 kHz. (a) Determine the frequency components of the detector output if the SSB signal transmits the upper sideband....
Assume that an analog audio voice-frequency (VF) telephone signal m(t) occupies a band from 300 Hz...
Assume that an analog audio voice-frequency (VF) telephone signal m(t) occupies a band from 300 Hz to 3000 Hz. The signal is to be converted to a PCM signal for transmission over a digital telephone system. The signal is sampled at a rate 33.3% higher than the Nyquist rate. The maximum acceptable quantizatiorn error is 2% of the peak amplitude of m(t). The quantized samples are binary coded. Find the minimum bandwidth B of a noiseless channel required to transmit...

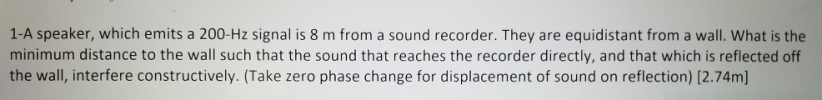

1-A speaker, which emits a 200-Hz signal is 8 m from a sound recorder. They are...
