Chapter 11, Problem 041 The figure shows a rigid structure consisting of a circular hoop of...
The figure shows a rigid structure consisting of a circular hoop of radius R and mass...

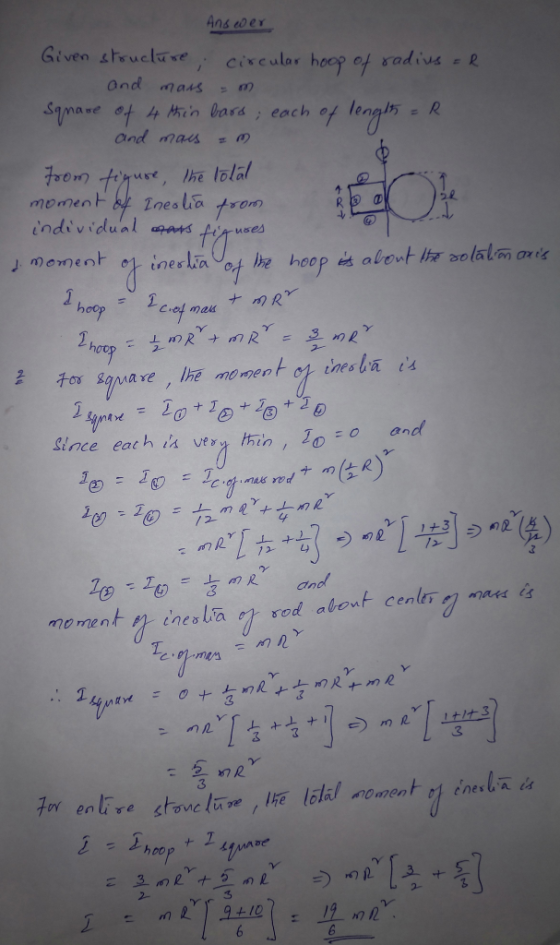

The figure shows a rigid structure consisting of a circular hoop of radius R and mass m, and a square made of four thin bars, each of length R and mass m. The rigid structure rotates at a constant speed about a vertical axis, with a period of rotation of 4.3 s. If R = 1.1m and m = 1.8 kg, calculate the angular momentum about that axis.
The figure shows a rigid structure consisting of a circular hoop of radius R and mass...
The figure shows a rigid structure consisting of a circular hoop of radius R and mass m, and a square made of four thin bars, each of length R and mass m. The rigid structure rotates at a constant speed about a vertical axis, with a period of rotation of 3.5 s. If R = 1.2 m and m = 3.3 kg, calculate the angular momentum about that axis.
The figure shows a rigid structure consisting of a circular hoop of radius R and mass...
The figure shows a rigid structure consisting of a circular hoop of radius R and mass m, and a square made of four thin bars, each of length Rand mass m. The rigid structure rotates at a constant speed about a vertical axis, with a period of rotation of 3.5 s. If R = 1.2 m and m = 3.3 kg, calculate the angular momentum about that axis. Rotation axis Number Units
The figure shows a rigid structure consisting of a circular hoop of radius R and mass...
The figure shows a rigid structure consisting of a circular hoop of radius R and mass m, and a square made of four thin bars, each of length Rand mass m. The rigid structure rotates at a constant speed about a vertical axis, with a period of rotation of 2.1 s. If R=0.9 m and m-4.0 kg, calculate the angular momentum about that axis. Number i Units
The figure shows a rigid structure consisting of a circular hoop of radius R and mass...
The figure shows a rigid structure consisting of a circular hoop of radius R and mass m1 and a square made of four thin bars, each of length R and mass m. The rigid structure rotates at a constant speed about a vertical axis, with a period of rotation of s. If R = m and m = kg, calculate the angular momentum about that axis. At the instant of the figure, a kg particle P has a position vector...
1a. 1b. 1c. A uniform solid ball rolls smoothly along a floor, then up a ramp...
1a.
1b.
1c.
A uniform solid ball rolls smoothly along a floor, then up a ramp inclined at 24.1. It momentarily stops when it has rolled 2.40 m along the ramp. What was its initial speed? NumberT4.38 Unitsm's A certain gyroscope consists of a uniform disk with a 33.0 cm radius mounted at the center of an axle that is 11.0 cm long and of negligible mass. The axle is horizontal and supported at one end. If the disk is...
The figure shows a rigid assembly of a thin hoop (of mass m = 0.27 kg...
The figure shows a rigid
assembly of a thin hoop (of mass m = 0.27 kg and radius R = 0.17 m)
and a thin radial rod (of length L = 2R and also of mass m = 0.27
kg). The assembly is upright, but we nudge it so that it rotates
around a horizontal axis in the plane of the rod and hoop, through
the lower end of the rod. Assuming that the energy given to the
assembly in...
1a. A cockroach of mass m lies on the rim of a uniform disk of mass...
1a. A cockroach of mass m lies on the rim of a uniform
disk of mass 9.00 m that can rotate freely about its
center like a merry-go-round. Initially the cockroach and disk
rotate together with an angular velocity of 0.456 rad/s. Then the
cockroach walks halfway to the center of the disk.
(a) What then is the angular velocity of the
cockroach-disk system?
(b) What is the ratio
K/K0 of the new kinetic energy of the
system to its...
6. A rigid sculpture consists of a thin hoop of mass m and radius R and...
6. A rigid sculpture consists of a thin hoop of mass m and radius R and two thin rods each of mass m and length L = 2R. The sculpture can pivot around a horizontal axis in the plane of the hoop passing through its center. What is the sculpture's rotational inertia I about the rotation axis in terms of m and R. rotation axis Answer | 1 = 58mR2
Chapter 10, Problem 041 In the figure, two partides, each with mass m = 0.93 kg,...
Chapter 10, Problem 041 In the figure, two partides, each with mass m = 0.93 kg, are fastened to each other, and to a around the rotation axis with angular speed ω 0.27 rad/s. Measured about O what is the combination's (a) rotational inertia and b) kinetic energy? rotation axis at O, by two thin rods, each with length d 5.4 cm and mass N 14 kg. The combination rotates Rotation axis 0 Units (a) Number (b) Number Units SHOW...
The figure shows a rigid structure consisting of a circular hoop of radius R and mass m, and a square made of four thin bars, each of length R and mass m. The rigid structure rotates at a constant speed about a vertical axis, with a period of rotation of 4.3 s. If R = 1.1m and m = 1.8 kg, calculate the angular momentum about that axis.
The figure shows a rigid structure consisting of a circular hoop of radius R and mass m, and a square made of four thin bars, each of length Rand mass m. The rigid structure rotates at a constant speed about a vertical axis, with a period of rotation of 3.5 s. If R = 1.2 m and m = 3.3 kg, calculate the angular momentum about that axis. Rotation axis Number Units
The figure shows a rigid structure consisting of a circular hoop of radius R and mass m, and a square made of four thin bars, each of length Rand mass m. The rigid structure rotates at a constant speed about a vertical axis, with a period of rotation of 2.1 s. If R=0.9 m and m-4.0 kg, calculate the angular momentum about that axis. Number i Units
The figure shows a rigid structure consisting of a circular hoop of radius R and mass m1 and a square made of four thin bars, each of length R and mass m. The rigid structure rotates at a constant speed about a vertical axis, with a period of rotation of s. If R = m and m = kg, calculate the angular momentum about that axis. At the instant of the figure, a kg particle P has a position vector...
1a.
1b.
1c.
A uniform solid ball rolls smoothly along a floor, then up a ramp inclined at 24.1. It momentarily stops when it has rolled 2.40 m along the ramp. What was its initial speed? NumberT4.38 Unitsm's A certain gyroscope consists of a uniform disk with a 33.0 cm radius mounted at the center of an axle that is 11.0 cm long and of negligible mass. The axle is horizontal and supported at one end. If the disk is...
The figure shows a rigid
assembly of a thin hoop (of mass m = 0.27 kg and radius R = 0.17 m)
and a thin radial rod (of length L = 2R and also of mass m = 0.27
kg). The assembly is upright, but we nudge it so that it rotates
around a horizontal axis in the plane of the rod and hoop, through
the lower end of the rod. Assuming that the energy given to the
assembly in...
1a. A cockroach of mass m lies on the rim of a uniform
disk of mass 9.00 m that can rotate freely about its
center like a merry-go-round. Initially the cockroach and disk
rotate together with an angular velocity of 0.456 rad/s. Then the
cockroach walks halfway to the center of the disk.
(a) What then is the angular velocity of the
cockroach-disk system?
(b) What is the ratio
K/K0 of the new kinetic energy of the
system to its...
6. A rigid sculpture consists of a thin hoop of mass m and radius R and two thin rods each of mass m and length L = 2R. The sculpture can pivot around a horizontal axis in the plane of the hoop passing through its center. What is the sculpture's rotational inertia I about the rotation axis in terms of m and R. rotation axis Answer | 1 = 58mR2
Chapter 10, Problem 041 In the figure, two partides, each with mass m = 0.93 kg, are fastened to each other, and to a around the rotation axis with angular speed ω 0.27 rad/s. Measured about O what is the combination's (a) rotational inertia and b) kinetic energy? rotation axis at O, by two thin rods, each with length d 5.4 cm and mass N 14 kg. The combination rotates Rotation axis 0 Units (a) Number (b) Number Units SHOW...
