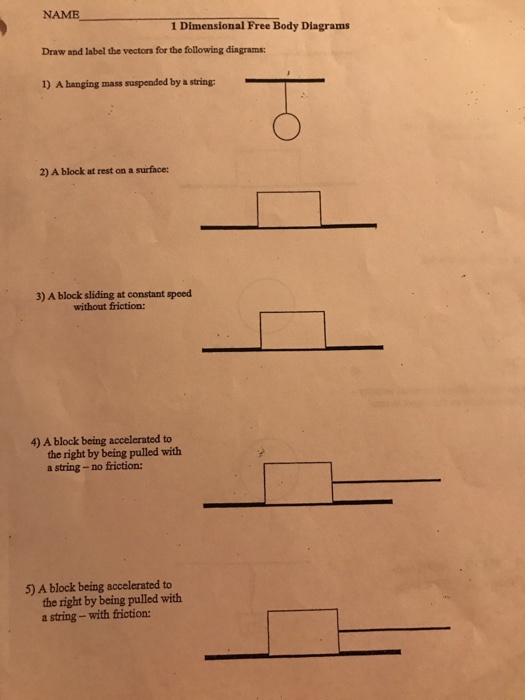

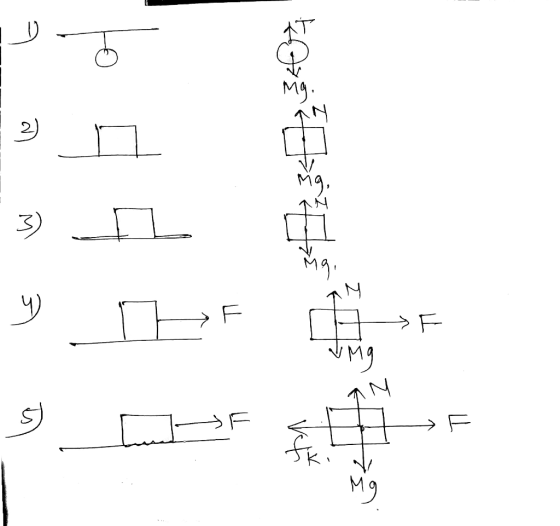

NAME 1 Dimensional Free Body Diagrams Draw and label the vectors for the following dingrams: 1)...
NAME 1 Dimensional Free Body Diagrams Draw and label the vectors for the following diagrams: 6)...
NAME 1 Dimensional Free Body Diagrams Draw and label the vectors for the following diagrams: 6) A block moving to the right at constant velocity with friction: 7) A block sliding to a stop due to friction 8) An object in free full: 9) An object falling at terminal velocity- the net force on the object is zero! 10) A MASS HANGING From A SPRING
Given Problem Without using a calculator A) draw and label free body diagrams for both masses...
Given
Problem
Without using a calculator
A) draw and label free body diagrams for both masses after the
rod is removed
B) if the coefficient of static friction us= 0.5, find the
minimum pushing force required to keep the 1-kg mass from sliding
down the face of the cart
g-10 m/s
Objectives for Lab 3 (Free Body Diagrams, Circular Motion). Prove that forces are vectors and understand...
Objectives for Lab 3 (Free Body Diagrams, Circular Motion). Prove that forces are vectors and understand the difference between externally applied forces and internal reaction forces. 11 Explore uniform circular motion. Conduct an experiment to understand centripetal force and centripetal acceleration. 21 Procedure for objective # 1. Suspend a block on a string in a vertical position. Let one member of a team pull the block to the right. a) Draw a free body diagram of the block. In which...
Requirement: (1) Draw necessary free body diagrams, (2) write necessary equations, and (3) name the adopted...
Requirement: (1) Draw necessary free body diagrams, (2) write necessary equations, and (3) name the adopted principle 3. The mass of block is 10 kg and the horizontal force applied to the block as shown in Figure below is 100 N. The coefficients of kinetic friction between the block and the inclined plane is μ A 0.2. Determine the acceleration of the block and its direction. Draw free body diagram and write the needed equation (25 points) 30P
POD 12-Prob#3) Free body diagrams Sketch appropriate free-body diagrams for the following situations/objects a. A baseball...
POD 12-Prob#3) Free body diagrams Sketch appropriate free-body diagrams for the following situations/objects a. A baseball at the instant that it is hit by the bat b. A soccer ball in the air after being headed in to the goal for the winning point in the match c. A bird sitting on a tree branch. d. The International space station in orbit around the earth POD 12-Prob #4) Free Body Diagram with math A block of mass m is resting...
Draw clear Free Body Diagrams (FBD) for each of the following cases, determine whether object is...
Draw clear Free Body Diagrams (FBD) for each of the following cases, determine whether object is in equilibrium or not and write the proper scalar equations for relevant force components. a) object of mass M on the frictionless incline (? = 20°). b) object of mass m suspended on the single rope from the ceiling of the elevator accelerating up with acceleration a. c) object mass m moving with constant speed on the rough horizontal surface pushed by the Fapp...
draw free body diagrams and answer questions please Draw the free body diagram for the bob...
draw free body diagrams and answer questions please
Draw the free body diagram for the bob (note that the spring is not attached at this time): bobt Equilibrium Marker 2. How does spinning the bob faster affect the period (time required for 1 full revolution)? The period increases. It takes more for the bob to go around once. The period stays the same. The period decreases. It takes less time for the bob to go around once. to the centripetal...
Draw a free-body diagram of the poster. Assume that the wall is to the right of...
Draw a free-body diagram of the poster. Assume that the wall is to the right of the student. In the process of nailing up a heavy framed poster, a student pushes the poster straight in toward the wall; the poster is sliding downward at a constant speed. Draw the vectors starting at the black dot. The location and orientation of the vectors will be graded. The length of the vectors will not be graded.
Free-body diagrams!
a brick of mass M has been placed on a rubber cushion of mass m. Together they are sliding to the right at constant velocity on an ice-covered parking lot.a) Draw a free-body diagram of the brick and identify each force acting on it.b) Draw a free-body diagram of the cushion and identify each froce acting on itc) Identify all of the action-reaction pairs of forces in the brick-cushion-planet system.
Hi i need help with the question. Could you draw the free body diagram of m1,m2...
Hi i need help with the question. Could you draw the free body
diagram of m1,m2 and m3 and an explaination for the problem.
Thanks
FB-diagram a-calculation m1 m2 7. (20 points) Consider a block of mass M on a ramp of angle e. The block is attached by massless strings over massless, frictionless pulleys to two objects, mi and m2, both of mass m where m < M. Assume there is no friction between the block of mass M...
NAME 1 Dimensional Free Body Diagrams Draw and label the vectors for the following diagrams: 6) A block moving to the right at constant velocity with friction: 7) A block sliding to a stop due to friction 8) An object in free full: 9) An object falling at terminal velocity- the net force on the object is zero! 10) A MASS HANGING From A SPRING
Given
Problem
Without using a calculator
A) draw and label free body diagrams for both masses after the
rod is removed
B) if the coefficient of static friction us= 0.5, find the
minimum pushing force required to keep the 1-kg mass from sliding
down the face of the cart
g-10 m/s
Objectives for Lab 3 (Free Body Diagrams, Circular Motion). Prove that forces are vectors and understand the difference between externally applied forces and internal reaction forces. 11 Explore uniform circular motion. Conduct an experiment to understand centripetal force and centripetal acceleration. 21 Procedure for objective # 1. Suspend a block on a string in a vertical position. Let one member of a team pull the block to the right. a) Draw a free body diagram of the block. In which...
Requirement: (1) Draw necessary free body diagrams, (2) write necessary equations, and (3) name the adopted principle 3. The mass of block is 10 kg and the horizontal force applied to the block as shown in Figure below is 100 N. The coefficients of kinetic friction between the block and the inclined plane is μ A 0.2. Determine the acceleration of the block and its direction. Draw free body diagram and write the needed equation (25 points) 30P
POD 12-Prob#3) Free body diagrams Sketch appropriate free-body diagrams for the following situations/objects a. A baseball at the instant that it is hit by the bat b. A soccer ball in the air after being headed in to the goal for the winning point in the match c. A bird sitting on a tree branch. d. The International space station in orbit around the earth POD 12-Prob #4) Free Body Diagram with math A block of mass m is resting...
draw free body diagrams and answer questions please
Draw the free body diagram for the bob (note that the spring is not attached at this time): bobt Equilibrium Marker 2. How does spinning the bob faster affect the period (time required for 1 full revolution)? The period increases. It takes more for the bob to go around once. The period stays the same. The period decreases. It takes less time for the bob to go around once. to the centripetal...
Hi i need help with the question. Could you draw the free body
diagram of m1,m2 and m3 and an explaination for the problem.
Thanks
FB-diagram a-calculation m1 m2 7. (20 points) Consider a block of mass M on a ramp of angle e. The block is attached by massless strings over massless, frictionless pulleys to two objects, mi and m2, both of mass m where m < M. Assume there is no friction between the block of mass M...
