7 2Ω 6Ω For the circuit shown, find (a) the voltage Vo, (b) the power delivered...
7.2Ω 6Ω 2) For the circuit shown, find (a) the voltage Vo; (b) the power delivered...

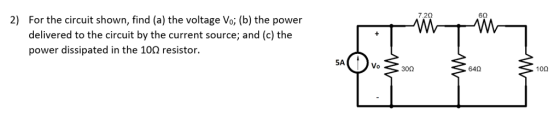

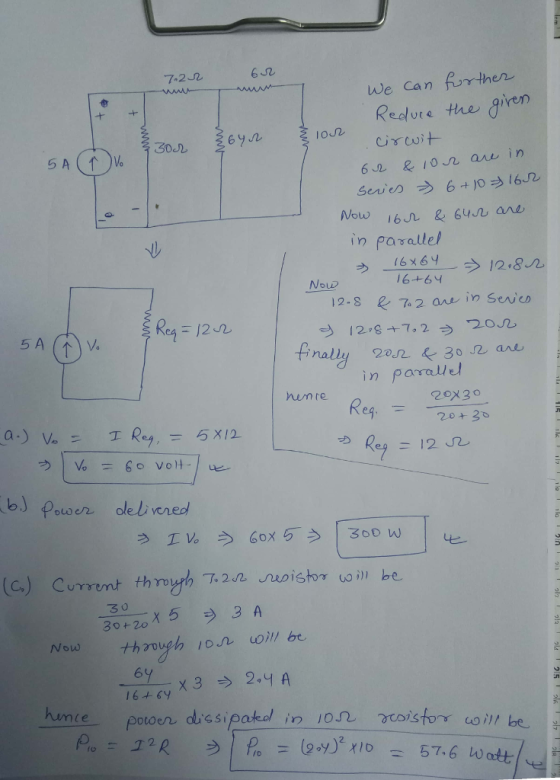

7.2Ω 6Ω 2) For the circuit shown, find (a) the voltage Vo; (b) the power delivered to the circuit by the current source; and (c) the power dissipated in the 10Ω resistor. Vo 300 64Ω 10Ω
Problem 2 (8 pt) : Find the expression of voltage drop on 2Ω resistor in figure 2. 1s10 A 4Ω 8Ω 10Ω 2Ω 3Ω 3010 v + 6Ω Figure 2 Problem 2 (8 pt) : Find the expression of voltage drop on 2Ω r...
Problem 2 (8 pt) : Find the expression of voltage drop on 2Ω resistor in figure 2. 1s10 A 4Ω 8Ω 10Ω 2Ω 3Ω 3010 v + 6Ω Figure 2
Problem 2 (8 pt) : Find the expression of voltage drop on 2Ω resistor in figure 2. 1s10 A 4Ω 8Ω 10Ω 2Ω 3Ω 3010 v + 6Ω Figure 2
In the circuit below, find (a) i, and v (b) O power absorbed by the 6-Ohm...
In the circuit below, find (a) i, and v (b) O power absorbed by the 6-Ohm resistor power delivered by the current source 6Ω 20n3, 24At i,, 90 Ω 10Ω 10Ω
For the circuit shown, using resistor combinations and Ohm's Law, calculate (a) Vo and b, (b)...
For the circuit shown, using resistor combinations and Ohm's Law, calculate (a) Vo and b, (b) the power dissipated in the 15 ? resistor, and (c) the power developed by the voltage source. 2? 15 ? 120 V
L4' : Find 11,12 and Vi in the following circuit. 4Ω 2Ω 3 A 6Ω 4...
L4' : Find 11,12 and Vi in the following circuit. 4Ω 2Ω 3 A 6Ω 4 6Ω 40 1, 6Ω 2Ω 4Ω An ammeter model consists of an ideal ammeter in series with a 202 resisto m resistor R as shown below. The al 5
2Ω 50 1) For the circuit on the right: a) Find the current (1) going through...

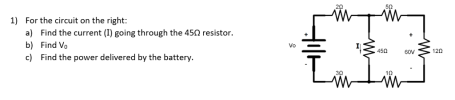

2Ω 50 1) For the circuit on the right: a) Find the current (1) going through the 45Ω resistor. b) Find Vo c) Find the power delivered by the battery. Vo 450 60V 120 30 10
2. The current i, in the circuit is 1 A a. Find b. Find the power...
2. The current i, in the circuit is 1 A a. Find b. Find the power dissipated in each resistor Verify that the total power dissipated in the circuit equals the power delivered by the 150 V source C. 500 402 100 150V 250 + 650
constant, find the power delivered to the wire 9-2 In the circuit on the right, find a. the equivalent resistance between points a and b b. the voltage across the 7 1-2 on resistor o c. the curren...
constant, find the power delivered to the wire 9-2 In the circuit on the right, find a. the equivalent resistance between points a and b b. the voltage across the 7 1-2 on resistor o c. the current in the 6 resistor d. the potential difference between points a and c, that is Ve-Va 3-n ㄟˋ 4o.oV
constant, find the power delivered to the wire 9-2 In the circuit on the right, find a. the equivalent resistance between points a...
Given that the power delivered to the 16 Ω resistor is 16 W in the circuit...
Given that the power delivered to the 16 Ω resistor is 16 W in
the circuit shown below, determine the current flowing in the
controlled source and the value of current source Is. (Hints: Find
the voltage or current of the 16 Ω resistor from its power;
simplify the circuit use equivalents of series and parallel
connections)
20. (a) Determine the equivalent resistance of the circuit in ▼Fig. 18.34 Find (b) the current in...
20. (a) Determine the equivalent resistance of the circuit in ▼Fig. 18.34 Find (b) the current in each resistor, (c) the voltage across each resistor, and (d) the total power delivered to the circuit. FIGURE 18.34 Power dissipation See Exercise 20. 10Ω 2.0 Ω 6.0 92 V 24 V 4,0Ω 12Ω 10Ω 5.0 Ω 시 r
20. (a) Determine the equivalent resistance of the circuit in ▼Fig. 18.34 Find (b) the current in each resistor, (c) the voltage across each...
7.2Ω 6Ω 2) For the circuit shown, find (a) the voltage Vo; (b) the power delivered to the circuit by the current source; and (c) the power dissipated in the 10Ω resistor. Vo 300 64Ω 10Ω
Problem 2 (8 pt) : Find the expression of voltage drop on 2Ω resistor in figure 2. 1s10 A 4Ω 8Ω 10Ω 2Ω 3Ω 3010 v + 6Ω Figure 2
Problem 2 (8 pt) : Find the expression of voltage drop on 2Ω resistor in figure 2. 1s10 A 4Ω 8Ω 10Ω 2Ω 3Ω 3010 v + 6Ω Figure 2
In the circuit below, find (a) i, and v (b) O power absorbed by the 6-Ohm resistor power delivered by the current source 6Ω 20n3, 24At i,, 90 Ω 10Ω 10Ω
For the circuit shown, using resistor combinations and Ohm's Law, calculate (a) Vo and b, (b) the power dissipated in the 15 ? resistor, and (c) the power developed by the voltage source. 2? 15 ? 120 V
L4' : Find 11,12 and Vi in the following circuit. 4Ω 2Ω 3 A 6Ω 4 6Ω 40 1, 6Ω 2Ω 4Ω An ammeter model consists of an ideal ammeter in series with a 202 resisto m resistor R as shown below. The al 5
2Ω 50 1) For the circuit on the right: a) Find the current (1) going through the 45Ω resistor. b) Find Vo c) Find the power delivered by the battery. Vo 450 60V 120 30 10
2. The current i, in the circuit is 1 A a. Find b. Find the power dissipated in each resistor Verify that the total power dissipated in the circuit equals the power delivered by the 150 V source C. 500 402 100 150V 250 + 650
constant, find the power delivered to the wire 9-2 In the circuit on the right, find a. the equivalent resistance between points a and b b. the voltage across the 7 1-2 on resistor o c. the current in the 6 resistor d. the potential difference between points a and c, that is Ve-Va 3-n ㄟˋ 4o.oV
constant, find the power delivered to the wire 9-2 In the circuit on the right, find a. the equivalent resistance between points a...
Given that the power delivered to the 16 Ω resistor is 16 W in
the circuit shown below, determine the current flowing in the
controlled source and the value of current source Is. (Hints: Find
the voltage or current of the 16 Ω resistor from its power;
simplify the circuit use equivalents of series and parallel
connections)
20. (a) Determine the equivalent resistance of the circuit in ▼Fig. 18.34 Find (b) the current in each resistor, (c) the voltage across each resistor, and (d) the total power delivered to the circuit. FIGURE 18.34 Power dissipation See Exercise 20. 10Ω 2.0 Ω 6.0 92 V 24 V 4,0Ω 12Ω 10Ω 5.0 Ω 시 r
20. (a) Determine the equivalent resistance of the circuit in ▼Fig. 18.34 Find (b) the current in each resistor, (c) the voltage across each...
