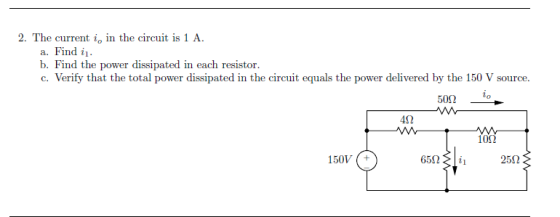

2. The current i, in the circuit is 1 A a. Find b. Find the power...
1. In the circuit below, find (a) the current in each resistor, (b) the potential difference...
1. In the circuit below, find (a) the current in each resistor, (b) the potential difference across each resistor, and (c) the power dissipated by each resistor. The power delivered by the battery equals the power dissipated by all the resistors. What is the power delivered by the battery? 3.0022 MA 6.00 v 2 2.00 4 .00 22 2.00 22
7.2Ω 6Ω 2) For the circuit shown, find (a) the voltage Vo; (b) the power delivered...
7.2Ω 6Ω 2) For the circuit shown, find (a) the voltage Vo; (b) the power delivered to the circuit by the current source; and (c) the power dissipated in the 10Ω resistor. Vo 300 64Ω 10Ω
7 2Ω 6Ω For the circuit shown, find (a) the voltage Vo, (b) the power delivered...
7 2Ω 6Ω For the circuit shown, find (a) the voltage Vo, (b) the power delivered to the circuit by the current source; and (c) the power dissipated in the 10Ω resistor. 2) 5A Vo 30n 64Ω
Calculate the voltage at points A, B, and C, in the following circuit. Find the power...
Calculate the voltage at points A, B, and C, in the following circuit. Find the power dissipated by each resistor. 6 V Calculate the total current I flowing through the following circuit segment. Then, find the voltage drop across each resistor. -18 V 12 kΩ 12 k
In the circuit below, find (a) i, and v (b) O power absorbed by the 6-Ohm...
In the circuit below, find (a) i, and v (b) O power absorbed by the 6-Ohm resistor power delivered by the current source 6Ω 20n3, 24At i,, 90 Ω 10Ω 10Ω
302 i(t) Problem 5(20 points) For the circuit on the right: (a) Find the current ift)...
302 i(t) Problem 5(20 points) For the circuit on the right: (a) Find the current ift) in the 3-2 resistor in the form i(t) = lalu (b) Calculate the average and rms values of iſt). (c) Calculate the power dissipated in the 3-2 resistor (d) Find the active power of current source 14 V 50cos (2000) 240 mit
From the Given Circuit Bellow, Find: a. line voltage b. line current c. total complex power,...
From the Given Circuit Bellow, Find:
a. line voltage
b. line current
c. total complex power, average power, and reactive power at the
source
(bottom part of the circuit looks fuzzy it has a clear view at
pic3, they are the same circuit)
3. From the Given Circuit Bellow, Find: a. Line Voltage b. Line Current c. Total Complex power, Average power and Reactive Power at the Source d. Total Complex power, Average power and Reactive Power at the Load...
20. (a) Determine the equivalent resistance of the circuit in ▼Fig. 18.34 Find (b) the current in...
20. (a) Determine the equivalent resistance of the circuit in ▼Fig. 18.34 Find (b) the current in each resistor, (c) the voltage across each resistor, and (d) the total power delivered to the circuit. FIGURE 18.34 Power dissipation See Exercise 20. 10Ω 2.0 Ω 6.0 92 V 24 V 4,0Ω 12Ω 10Ω 5.0 Ω 시 r
20. (a) Determine the equivalent resistance of the circuit in ▼Fig. 18.34 Find (b) the current in each resistor, (c) the voltage across each...
Q2(a) Consider the circuit shown in Figure Q2a. Find the power delivered resistor. i. Calculate the...
Q2(a) Consider the circuit shown in Figure Q2a. Find the power delivered resistor. i. Calculate the total resistance ii. Calculate the total current iii. Calculate the current in each branch iv. Calculate the voltage drop in each resistor v. Calculate the power delivered to each resistor. 2.012 20 V 1.022 3.0 22 w 4.0 52
1) a) Find the current, I, in the circuit. (15 points) b) Find the power delivered...
1) a) Find the current, I, in the circuit. (15 points) b) Find the power delivered to all elements and show that power is conserved (5 points) 50 V 10 12 I + 10 V +1 M M. 422 522
1. In the circuit below, find (a) the current in each resistor, (b) the potential difference across each resistor, and (c) the power dissipated by each resistor. The power delivered by the battery equals the power dissipated by all the resistors. What is the power delivered by the battery? 3.0022 MA 6.00 v 2 2.00 4 .00 22 2.00 22
7.2Ω 6Ω 2) For the circuit shown, find (a) the voltage Vo; (b) the power delivered to the circuit by the current source; and (c) the power dissipated in the 10Ω resistor. Vo 300 64Ω 10Ω
7 2Ω 6Ω For the circuit shown, find (a) the voltage Vo, (b) the power delivered to the circuit by the current source; and (c) the power dissipated in the 10Ω resistor. 2) 5A Vo 30n 64Ω
Calculate the voltage at points A, B, and C, in the following circuit. Find the power dissipated by each resistor. 6 V Calculate the total current I flowing through the following circuit segment. Then, find the voltage drop across each resistor. -18 V 12 kΩ 12 k
In the circuit below, find (a) i, and v (b) O power absorbed by the 6-Ohm resistor power delivered by the current source 6Ω 20n3, 24At i,, 90 Ω 10Ω 10Ω
302 i(t) Problem 5(20 points) For the circuit on the right: (a) Find the current ift) in the 3-2 resistor in the form i(t) = lalu (b) Calculate the average and rms values of iſt). (c) Calculate the power dissipated in the 3-2 resistor (d) Find the active power of current source 14 V 50cos (2000) 240 mit
From the Given Circuit Bellow, Find:
a. line voltage
b. line current
c. total complex power, average power, and reactive power at the
source
(bottom part of the circuit looks fuzzy it has a clear view at
pic3, they are the same circuit)
3. From the Given Circuit Bellow, Find: a. Line Voltage b. Line Current c. Total Complex power, Average power and Reactive Power at the Source d. Total Complex power, Average power and Reactive Power at the Load...
20. (a) Determine the equivalent resistance of the circuit in ▼Fig. 18.34 Find (b) the current in each resistor, (c) the voltage across each resistor, and (d) the total power delivered to the circuit. FIGURE 18.34 Power dissipation See Exercise 20. 10Ω 2.0 Ω 6.0 92 V 24 V 4,0Ω 12Ω 10Ω 5.0 Ω 시 r
20. (a) Determine the equivalent resistance of the circuit in ▼Fig. 18.34 Find (b) the current in each resistor, (c) the voltage across each...
Q2(a) Consider the circuit shown in Figure Q2a. Find the power delivered resistor. i. Calculate the total resistance ii. Calculate the total current iii. Calculate the current in each branch iv. Calculate the voltage drop in each resistor v. Calculate the power delivered to each resistor. 2.012 20 V 1.022 3.0 22 w 4.0 52
1) a) Find the current, I, in the circuit. (15 points) b) Find the power delivered to all elements and show that power is conserved (5 points) 50 V 10 12 I + 10 V +1 M M. 422 522
