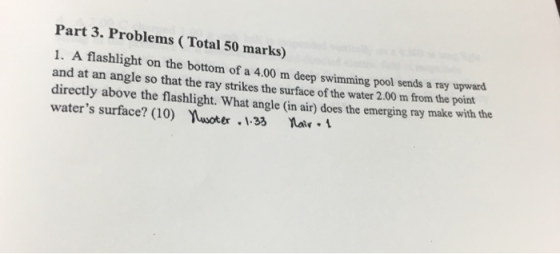

Part 3. Problems (Total 50 marks) 1. A flashlight on the bottom of a 4.00 m...

Question

Question

science physics

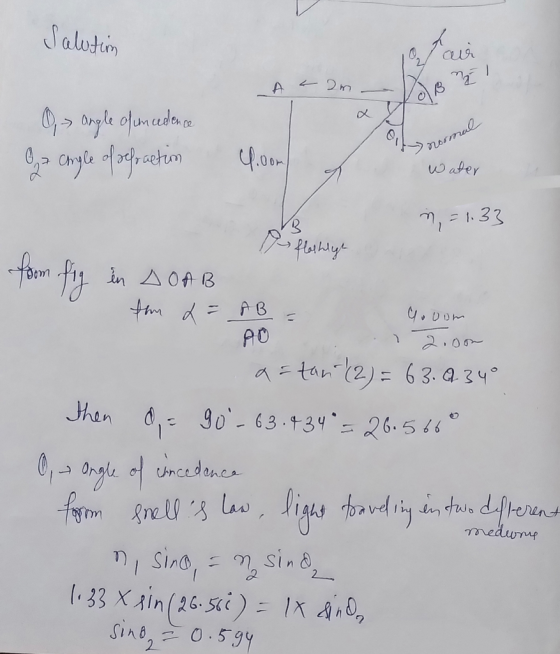

Answer 1

Answer #1

53.56 tsnes

Answer 2

Similar Homework Help Questions

Part 3. Problems ( Total 50 marks) 1. A flashlight on the bottom of a 4.00...

Part 3. Problems ( Total 50 marks) 1. A flashlight on the bottom of a 4.00 m deep and at an angle so that the ray strikes the surface of the water 2.00 m from the point directly above the flashlight. What angle (in air) does the emerging ray make with the water's surface? (10) swimming pool sends a ray upward 2. In Figure 3, the cube is 40.0 cm on each edge. Four straight segments of wire-ab, bc, cd,...
L. A flashlight on the bottom of a 4.00 m deep swimming pool sends a ra...

L. A flashlight on the bottom of a 4.00 m deep swimming pool sends a ra d at an angle so that the ray strikes the surface of the water 2.00 m fromt directly above the flashlight. What angle (in air) does the emerging ray make water's surface? (10) he point
A flashlight on the bottom of a 3.95 m deep swimming pool sends a ray upward...

A flashlight on the bottom of a 3.95 m deep swimming pool sends a ray upward and at an angle so that the ray strikes the surface of the water 1.65 m from the point directly above the flashlight. What angle (in air) does the emerging ray make with the water's surface?

A flashlight on the bottom of a 3.93 m deep swimming pool sends a ray upward...

A flashlight on the bottom of a 3.93 m deep swimming pool sends a ray upward at an angle so that the ray strikes the surface of the water 1.89 m from the point directly above the flashlight. What angle (in air) does the emerging ray make with the water's surface?
4. A 2.00 C charged 1.00 g cork ball is suspended vertically on a 0.500 m...

4. A 2.00 C charged 1.00 g cork ball is suspended vertically on a 0.500 m long light string in the presence of a uniform downward-directed electric field of magnitude E-1.00x105 N/C. If the ball is displaced slightly from the vertical, it oscillates like a simple pendulum. (a) Determine the period of the ball's oscillation. (b) Should gravity be included in the calculation for part (a)? Explain. (15) 3. The magnetic field shown in Figure 4 directed into the paper....
A flashlight is held at the edge of a swimming pool at a height h = 2.2 m

A flashlight is held at the edge of a swimming pool at a height h = 2.2 m such that its beam makes an angle of θ = 58 degrees with respect to the water's surface. The pool is d = 1.5 m deep and the index of refraction for air and water are n1=1 and n2 = 1.33, respectively. What is the horizontal distance D, from the edge of the pool to the port on the bottom of the pool...

3. In Figure 2, what is the direction of the current induced in the resistor at...

3. In Figure 2, what is the direction of the current induced in the resistor at the instant the switch is closed? ㄐㄧ - Figure 2 4. If a grandfather clock were running slow, how could we adjust the length of the pendulum to correct the time? 4. A 2.00 C charged 1.00 g cork ball is suspended vertically on a 0.500 m long light string in the presence of a uniform downward-directed electric field of magnitude E-1.00x10 N/C. If...
A light source at the bottom of a 4.7-m-deep water pool sends a light ray up...

A light source at the bottom of a 4.7-m-deep water pool sends a light ray up at an angle so that the ray strikes the surface 1.6 m from the point straight above the light source. What is the emerging ray's angle (in degrees) with the normal in air? °
A flashlight is held at the edge of a swimming pool at a height h = 2.4 m such that its beam makes an angle of θ = 41 degrees with respect to the water's surface

A flashlight is held at the edge of a swimming pool at a height h = 2.4 m such that its beam makes an angle of θ = 41 degrees with respect to the water's surface. The pool is d = 2.25 m deep and the index of refraction for air and water are n1 = 1 and n2 = 1.33, respectively.what is the horizontal distance, D, from the edge of the pool to the point on the bottom of...

In searching the bottom of a pool at night, a security guard shines a narrow beam...

In searching the bottom of a pool at night, a security guard shines a narrow beam of light from his flashlight, above the water's surface, onto the waiter at a point 2.5 m from his foot at the edge of the pool. Where does the light hit the bottom of the pool measured from the wall beneath his foot if the pool is 2.1 m deep. A triangular prism made of crown glass, n = 1.52, with base angles of...
