Use a graph sheet (use the scale, 1 cm represents 2 m). Give complete answers. (Hint:...
Use a graph sheet (use the scale, 1 cm represents 2 m). Give complete answers. (Hint: Vectors have both magnitude and a direction)
Given: A= (10m, 0 degrees), B=(10m, 45 degrees), C= (10m, 270 degrees)
Use the tip-to -tail method to find:

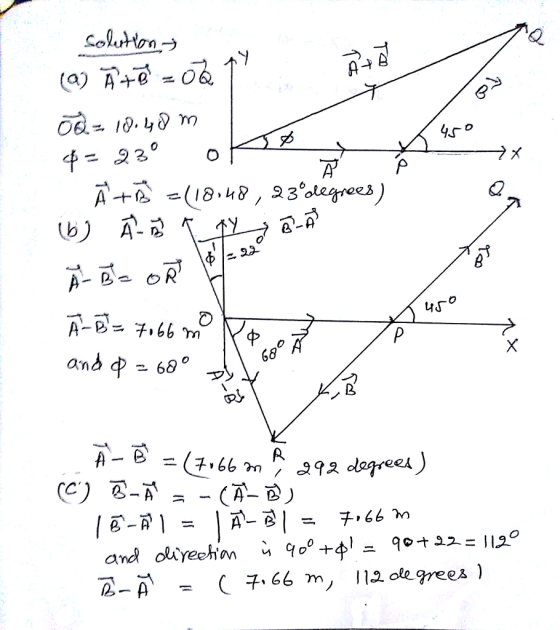

a. A+B
b. A-B
c. B-A

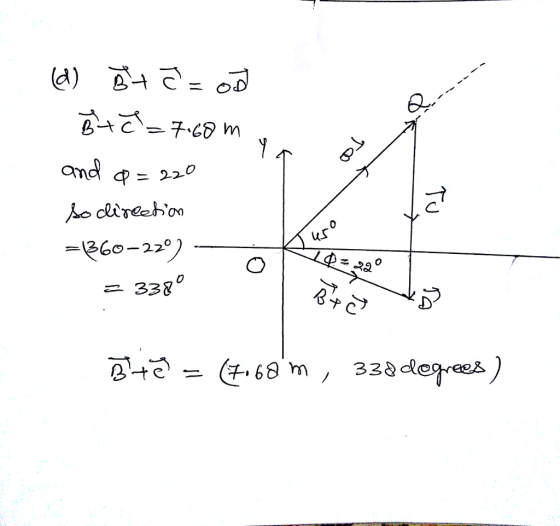

d. B+C
Homework Answers
