Questions 7-9 A cylinder of mass M is free to slide on a frictionless horizontal shaft...

Question

Question

science physics

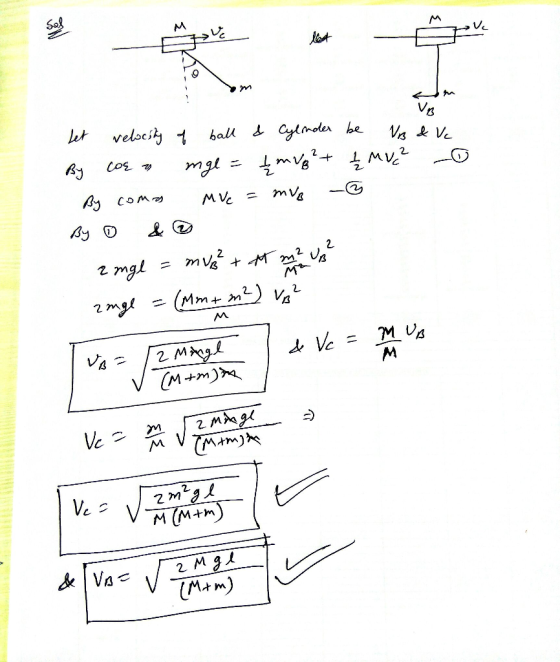

Answer 1

Answer #1

乜 2.

Answer 2

Similar Homework Help Questions

Questions 7-9 A cylinder of mass M is free to slide on a frictionless horizontal shaft...

Questions 7-9 A cylinder of mass M is free to slide on a frictionless horizontal shaft passing through its axcis. A ball of mass m is attached to the cylinder by a massiess string of length &. Initially, both the cylinder and the ball are at rest, with the d center of the cylinder at a perpendicular distance zo from the v-axis, and the ball displaced by an angle θ-π/2 to the right relative to the vertical. Use the coordinate...
Questions 7-9 A cylinder of mass M is free to slide on a frictionless horizontal shaft...

Questions 7-9 A cylinder of mass M is free to slide on a frictionless horizontal shaft passing through its axis. A ball of mass m is attached to the cylinder by a massiess string of length . Initially, both the cylinder and the ball are at rest, with the d center of the cylinder at a perpendicular distance zo from the y-axis, and the ball displaced by an angle 8 /2 to the right relative to the vertical. Use the...
A 7 g bullet is fired at 470.4 m/s into a solid cylinder of mass 15.6...

A 7 g bullet is fired at 470.4 m/s into a solid cylinder of mass 15.6 kg and a radius 0.49 m. The cylinder is initially at rest and is mounted on fixed vertical axis that runs through it's center of mass. The line of motion of the bullet is perpendicular to the axle and at a distance 5.1 cm from the center. What is the initial angular momentum of the system?

Ballistic Cylinder A 0.17-kg bullet is fired with a velocity of 85.9 m/s into a solid...

Ballistic Cylinder A 0.17-kg bullet is fired with a velocity of 85.9 m/s into a solid cylinder of mass 10.1 kg and radius 0.31 m. The cylinder is initially at rest and is mounted on a fixed vertical axis that runs through its center of mass. The line of motion of the bullet is perpendicular to the axis and at a distance d 0.0059 m from the center. Find the angular speed of the system after the bullet strikes and...
A block of mass M, at rest on horizontal frictionless table, is attached to a spring...

A block of mass M, at rest on horizontal frictionless table, is attached to a spring with spring constant k and is initially at rest. A bullet of mass m and speed v strikes the block and remains embedded inside of it. Determine the amplitude of the resulting simple harmonic motion in terms of m, M, v and k.
5. Blocks of mass m and 2m are free to slide without friction on a horizontal...

5. Blocks of mass m and 2m are free to slide without friction on a horizontal wire. They are connected by a massless spring of equilibrium length L and force constant k. A projectile of mass m is fired with velocity v into the block with mass m and sticks to it. If the blocks are initially at rest, what is the maximum displacement between them in the subsequent motion? E E 2m

Problem 3 10 marks A particle of mass m slides down a frictionless incline of angle...

Problem 3 10 marks A particle of mass m slides down a frictionless incline of angle a, mass M and length L which is on a horizontal frictionless plane (see the Figure). If the particle starts initially from rest at the top of the incline, prove that the time for the particle to reach the bottom is given by, 2L(M + m sina) (M + m)g sina To setup the problem, choose a fixed vertical xy coordinate system as in...
5. (3 points) A mass m 300g lies on a frictionless horizontal surface and is attached...

5. (3 points) A mass m 300g lies on a frictionless horizontal surface and is attached to a horizontal spring with a spring constant k 3 Nm. A coordinate system is given such that the r axis is parallel to the motion of the mass under the action of the spring, and the origin is located at the un-stretched position of the spring. The position of the mass is given by: r(t)-A cos(wt + φ) At time t = 2...
5, (3 points) A mass m 300 g lies on a frictionless horizontal surface and is...

5, (3 points) A mass m 300 g lies on a frictionless horizontal surface and is attached to a horizontal spring with a spring constant k = 3 N/m. A coordinate system is given such that the z axis is parallel to the motion of the mass under the action of the spring, and the origin is located at the un-stretched position of the spring. The position of the mass is given by: x(t) = A cos(wt + φ) At...

A 14 g bullet is fired at 436.9 m/s into a solid cylinder of mass 26.5...

A 14 g bullet is fired at 436.9 m/s into a solid cylinder of mass 26.5 kg and a radius 0.28 m. The cylinder is initially at rest and is mounted on fixed vertical axis that runs through it's center of mass. The line of motion of the bullet is perpendicular to the axle and at a distance 8.3 cm from the center. What is the initial angular momentum of the system? Find the angular velocity of the system after...
