A block of mass M, at rest on horizontal frictionless table, is attached to a spring...
-

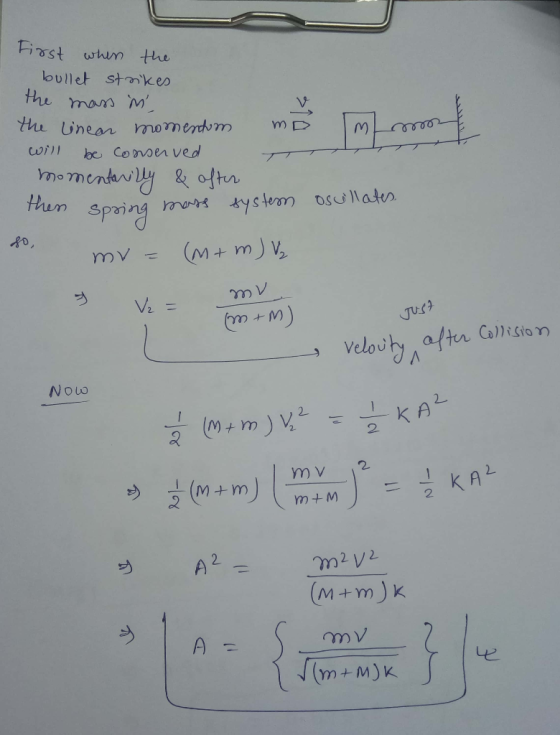

A block of mass M, at rest on horizontal frictionless table, is attached to a spring with spring constant k and is initially at rest. A bullet of mass m and speed v strikes the block and remains embedded inside of it. Determine the amplitude of the resulting simple harmonic motion in terms of m, M, v and k.
Homework Answers
Add Answer to:
A block of mass M, at rest on horizontal frictionless table, is
attached to a spring...
A block of mass M = 6.20 kg, at rest on a horizontal frictionless table, is...
A block of mass M = 6.20 kg, at rest on a horizontal frictionless table, is attached to a rigid support by a spring of constant k = 6410 N/m. A bullet of mass m = 9.30 g and velocity v→ of magnitude 600 m/s strikes and is embedded in the block (the figure). Assuming the compression of the spring is negligible until the bullet is embedded, determine (a) the speed of the block immediately after the collision and (b)...
A block of mass M = 5.60 kg, at rest on a horizontal frictionless table, is...
A block of mass M = 5.60 kg, at rest on a horizontal frictionless table, is attached to a rigid support by a spring of constant k = 5890 N/m. A bullet of mass m = 9.30 g and velocity v of magnitude 650 m/s strikes and is embedded in the block (the figure). Assuming the compression of the spring is negligible is embedded, determine (a) the speed of the block immediately after the collision and (b) the amplitude of...
A block of mass M = 5.60 kg, at rest on a horizontal frictionless table, is...
A block of mass M = 5.60 kg, at rest on a horizontal frictionless table, is attached to a rigid support by a spring of constant k = 6390 N/m. A bullet of mass m = 8.20 g and velocity of magnitude 710 m/s strikes and is embedded in the block (the figure). Assuming the compression of the spring is negligible until the bullet is embedded, determine (a) the speed of the block immediately after the collision and (b) the...
A block of mass M = 1.94 kg, at rest on a horizontal frictionless table, is...
A block of mass M = 1.94 kg, at rest on a horizontal
frictionless table, is attached to a rigid support by a spring of
constant k = 110 N/m. A bullet of mass m = 4.7 g and velocity of
magnitude 810 m/s strikes and is embedded in the block (Fig. See
below). Assuming the compression of the spring is negligible until
the bullet is embedded, determine (a) the speed of the block
immediately after the collision and (b)...
A block of mass M = 5.80 kg, at rest on a horizontal frictionless table, is...
A block of mass M = 5.80 kg, at rest on a horizontal frictionless table, is attached to a rigid support by a spring of constant k = 5490 N/m. A bullet of mass m = 9.90 g and velocity v of magnitude 670 m/s strikes and is embedded in the block (the figure). Assuming the compression of the spring is negligible until the bullet is embedded, determine (a) the speed of the block immediately after the collision and (b)...
A 21.0kg block at rest on a horizontal frictionless table is connected to the wall via...
A 21.0kg block at rest on a horizontal frictionless table is
connected to the wall via a spring with a spring constant
k=34.0N/m. A 3.90×10-2kg bullet travelling with a speed of 550m/s
embeds itself in the block. What is the amplitude of the resulting
simple harmonic motion? Recall that the amplitude is the maximum
displacement from equilibrium.
14. 1pt A 21.0kg block at rest on a horizontal frictionless table is connected to the wall via a spring with a spring...
1) A 12.3 kg particle is undergoing simple harmonic motion with an amplitude of 1.86 mm....
1) A 12.3 kg particle is undergoing simple harmonic motion with an amplitude of 1.86 mm. The maximum acceleration experienced by the particle is 7.93 km/s2. (a) Find the period of the motion. (b) What is the maximum speed of the particle? (c) Calculate the total mechanical energy of this simple harmonic oscillator. 2) The orbit of the Moon around the Earth as projected along a diameter can be viewed as simple harmonic motion. Calculate the effective force constant k...
A horizontal mass-spring system consists of a block (m=1.5 kg) on a frictionless to connected to...
A horizontal mass-spring system consists of a block (m=1.5 kg) on a frictionless to connected to a spring (k = 750 N/m). The system is initially at rest and is in equilibrium MI Second DIOCK (M=1.5 kg) approaches with a speed of 3.5 m/s and undergoes all inelastic collision with the first block (i.e.. they stick together after the collision). (a) What is the amplitude of the resulting simple harmonic motion (in cm)? (b) What is the angular frequency (w)...
Questions 13-16 A massiess spring with spring constant k is attached at one end of a...
Questions 13-16 A massiess spring with spring constant k is attached at one end of a block of mass M that is at rest on a frictionless horizontal table. The other end of the spring is fixed to a wall. A bullet of mass ma is fired into the block from the left with a speed to and comes to rest in the block M 7m 14. Find the amplitude of the resulting simple harmonic motion. to (c mato (d)...
Item 1 1 of 4 A block of wood connected to a horizontal spring is at...
Item 1 1 of 4 A block of wood connected to a horizontal spring is at rest on a frictionless floor. The mass of the block is 5kg and the spring constant is 125 N/m. A bullet of mass 50g is fired at the block with horizontal velocity of 25 m/s. The bullet gets embedded in the block after hitting it. The block (with the bullet embedded in it) undergoes simple harmonic oscillation as a result of this collision Part...
A block of mass M = 5.60 kg, at rest on a horizontal frictionless table, is attached to a rigid support by a spring of constant k = 5890 N/m. A bullet of mass m = 9.30 g and velocity v of magnitude 650 m/s strikes and is embedded in the block (the figure). Assuming the compression of the spring is negligible is embedded, determine (a) the speed of the block immediately after the collision and (b) the amplitude of...
A block of mass M = 1.94 kg, at rest on a horizontal
frictionless table, is attached to a rigid support by a spring of
constant k = 110 N/m. A bullet of mass m = 4.7 g and velocity of
magnitude 810 m/s strikes and is embedded in the block (Fig. See
below). Assuming the compression of the spring is negligible until
the bullet is embedded, determine (a) the speed of the block
immediately after the collision and (b)...
A block of mass M = 5.80 kg, at rest on a horizontal frictionless table, is attached to a rigid support by a spring of constant k = 5490 N/m. A bullet of mass m = 9.90 g and velocity v of magnitude 670 m/s strikes and is embedded in the block (the figure). Assuming the compression of the spring is negligible until the bullet is embedded, determine (a) the speed of the block immediately after the collision and (b)...
A 21.0kg block at rest on a horizontal frictionless table is
connected to the wall via a spring with a spring constant
k=34.0N/m. A 3.90×10-2kg bullet travelling with a speed of 550m/s
embeds itself in the block. What is the amplitude of the resulting
simple harmonic motion? Recall that the amplitude is the maximum
displacement from equilibrium.
14. 1pt A 21.0kg block at rest on a horizontal frictionless table is connected to the wall via a spring with a spring...
A horizontal mass-spring system consists of a block (m=1.5 kg) on a frictionless to connected to a spring (k = 750 N/m). The system is initially at rest and is in equilibrium MI Second DIOCK (M=1.5 kg) approaches with a speed of 3.5 m/s and undergoes all inelastic collision with the first block (i.e.. they stick together after the collision). (a) What is the amplitude of the resulting simple harmonic motion (in cm)? (b) What is the angular frequency (w)...
Questions 13-16 A massiess spring with spring constant k is attached at one end of a block of mass M that is at rest on a frictionless horizontal table. The other end of the spring is fixed to a wall. A bullet of mass ma is fired into the block from the left with a speed to and comes to rest in the block M 7m 14. Find the amplitude of the resulting simple harmonic motion. to (c mato (d)...
Item 1 1 of 4 A block of wood connected to a horizontal spring is at rest on a frictionless floor. The mass of the block is 5kg and the spring constant is 125 N/m. A bullet of mass 50g is fired at the block with horizontal velocity of 25 m/s. The bullet gets embedded in the block after hitting it. The block (with the bullet embedded in it) undergoes simple harmonic oscillation as a result of this collision Part...
