A researcher would like to perform an experiment in a zero magnetic field, which means that...

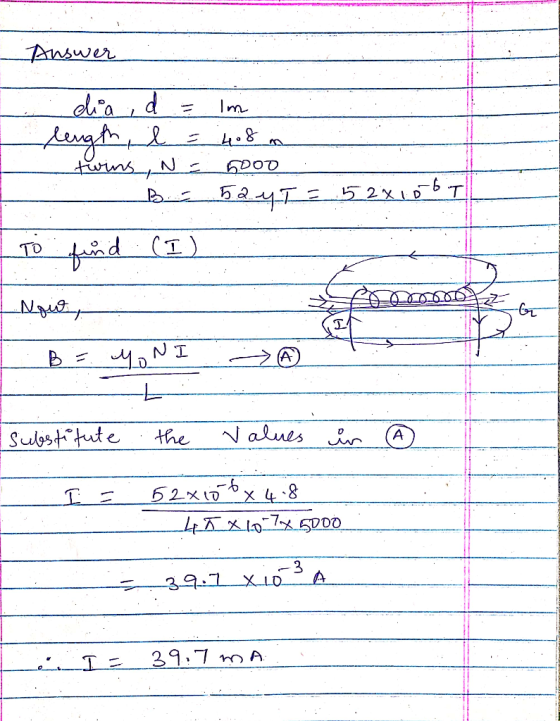

A researcher would like to perform an experiment in a zero magnetic field, which means that the field of the earth must be canceled. Suppose the experiment is done inside a solenoid of diameter 1.0 m, length 4.8 m , with a total of 5000 turns of wire. The solenoid is oriented to produce a field that opposes and exactly cancels the 52 μT local value of the earth's field. What current is needed in the solenoid's wires?
Homework Answers
Add Answer to:
A researcher would like to perform an experiment in a zero
magnetic field, which means that...
A researcher would like to perform an experiment in a zero magnetic field, which means that...
A researcher would like to perform an experiment in a zero magnetic field, which means that the field of the earth must be canceled. Suppose the experiment is done inside a solenoid of diameter 1.0 m, length 5.0 m , with a total of 5000 turns of wire. The solenoid is oriented to produce a field that opposes and exactly cancels the 52 μT local value of the earth's field. What current is needed in the solenoid's wires?
A researcher would like to perform an experiment in a zero magnetic field, which means that...
A researcher would like to perform an experiment in a zero magnetic field, which means that the field of the earth must be canceled. Suppose the experiment is done inside a solenoid of diameter 1.0 m, length 3.2m , with a total of 5000 turns of wire. The solenoid is oriented to produce a field that opposes and exactly cancels the 52 ?T local value of the earth's field. What current is needed in the solenoid's wire?
Part A What current is needed in the solenoid's wires? Express your answer to two significant...
Part A
What current is needed in the solenoid's wires?
Express your answer to two significant figures and include the
appropriate units.
Problem 24.16
A researcher would like to perform an experiment in a zero
magnetic field, which means that the field of the earth must be
canceled. Suppose the experiment is done inside a solenoid of
diameter 1.0 m, length 3.6m , with a total of 5000 turns of wire.
The solenoid is oriented to produce a field that...
Certain experiments must be performed in the absence of any magnetic fields. Suppose such an experiment...
Certain experiments must be performed in the absence of any magnetic fields. Suppose such an experiment is located at the center of a large solenoid oriented so that a current of I = 1.50 A produces a magnetic field that exactly cancels Earth's 4.50 ✕ 10−5 T magnetic field. Find the solenoid's number of turns per meter.
Problem 24.4 For a particular scientific experiment, it is important to be completely isolated from any magnetic field,...
Problem 24.4
For a particular scientific experiment, it is important to be
completely isolated from any magnetic field, including the earth's
field. The earth's field is approximately 50 ?T,
but at any particular location it may be a bit more or less than
this. A 1.00-m-diameter current loop with 200 turns of wire is
adjusted to carry a current of 0.219A ; at this current, the coil's
field at the center is exactly equal to the earth's field in
magnitude...
For a particular scientific experiment, it is important to be completely isolated from any magnetic field,...
For a particular scientific experiment, it is important to be completely isolated from any magnetic field, including the earth's field. The earth's field is approximately 50 4T, but at any particular location it may be a bit more or less than this. A 1.00-m-diameter current loop with 200 turns of wire is adjusted to carry a current of 0.191 A ; at this current, the coil's field at the center is exactly equal to the earth's field in magnitude but...
For a particular scientific experiment, it is important to be completely isolated from any magnetic field,...
For a particular scientific experiment, it is important to be completely isolated from any magnetic field, including the earth's field. The earth's field is approximately 50 μTμT, but at any particular location it may be a bit more or less than this. A 1.00-mm-diameter current loop with 200 turns of wire is adjusted to carry a current of 0.195 AA ; at this current, the coil's field at the center is exactly equal to the earth's field in magnitude but...
Magnetic Resonance Imaging An MRI (magnetic resonance imaging) solenoid produces a magnetic field of 1.4 T...
Magnetic Resonance Imaging An MRI (magnetic resonance imaging) solenoid produces a magnetic field of 1.4 T . The solenoid is 2.5m long, 1.0 m in diameter, and wound with insulated wires 2.2 mm in diameter. Find the current that flows in the solenoid. (Your answer should be rather large. A typical MRI solenoid uses niobium-titanium wire kept at liquid helium temperatures, where it is superconducting.)
An MRI (magnetic resonance imaging) solenoid produces a magnetic field of 1.7 T . The solenoid...
An MRI (magnetic resonance imaging) solenoid produces a magnetic field of 1.7 T . The solenoid is 2.5m long, 1.0 m in diameter, and wound with insulated wires 2.0 mm in diameter.Find the current that flows in the solenoid. (Your answer should be rather large. A typical MRI solenoid uses niobium-titanium wire kept at liquid helium temperatures, where it is superconducting.)
An MRI (magnetic resonance imaging) solenoid produces a magnetic field of 1.7 T . The solenoid...
An MRI (magnetic resonance imaging) solenoid produces a magnetic field of 1.7 T . The solenoid is 2.5m long, 1.0 m in diameter, and wound with insulated wires 2.4 mm in diameter.Find the current that flows in the solenoid. (Your answer should be rather large. A typical MRI solenoid uses niobium-titanium wire kept at liquid helium temperatures, where it is superconducting.)
Part A
What current is needed in the solenoid's wires?
Express your answer to two significant figures and include the
appropriate units.
Problem 24.16
A researcher would like to perform an experiment in a zero
magnetic field, which means that the field of the earth must be
canceled. Suppose the experiment is done inside a solenoid of
diameter 1.0 m, length 3.6m , with a total of 5000 turns of wire.
The solenoid is oriented to produce a field that...
Problem 24.4
For a particular scientific experiment, it is important to be
completely isolated from any magnetic field, including the earth's
field. The earth's field is approximately 50 ?T,
but at any particular location it may be a bit more or less than
this. A 1.00-m-diameter current loop with 200 turns of wire is
adjusted to carry a current of 0.219A ; at this current, the coil's
field at the center is exactly equal to the earth's field in
magnitude...
For a particular scientific experiment, it is important to be completely isolated from any magnetic field, including the earth's field. The earth's field is approximately 50 4T, but at any particular location it may be a bit more or less than this. A 1.00-m-diameter current loop with 200 turns of wire is adjusted to carry a current of 0.191 A ; at this current, the coil's field at the center is exactly equal to the earth's field in magnitude but...
